Laser C 1000iA Maintenance manual Page 131

Maintenance manual
9.SETTING AND ADJUSTMENT B-70255EN/01
- 124 -

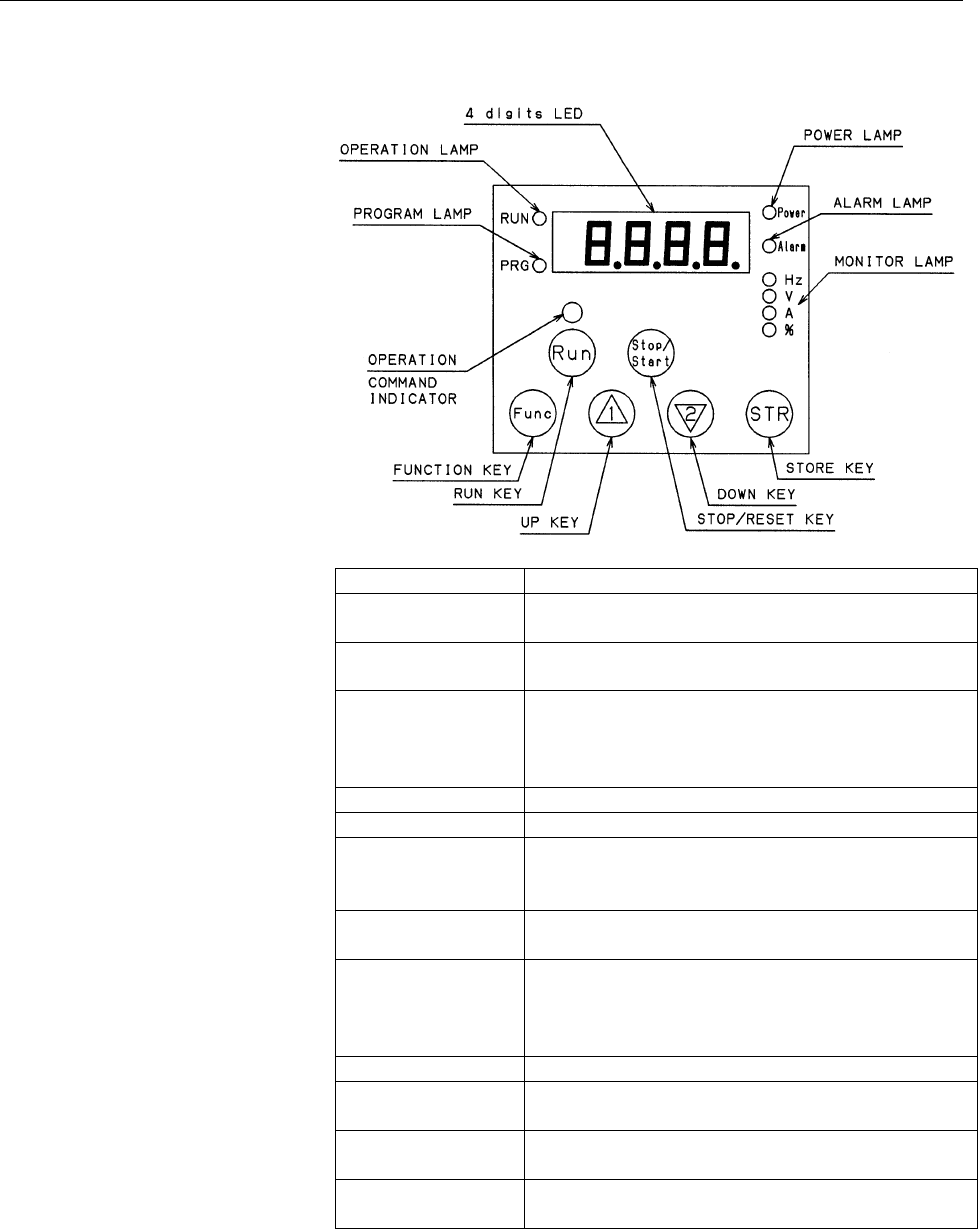

(1) Names and descriptions of the components of the digital
operator's panel
Name Description
Monitor Displays settings such frequency and output current
values.
RUN (operation)
lamp
Turned on when the inverter is running.
Program lamp Turned on when the monitor displays the setting of
each function.
Blinks when a warning is given (when a setting is
incorrect).
POWER lamp Power lamp of the control circuit
ALARM lamp Turned on when the inverter trips
Monitor lamp Lamp for indicating the display status of the monitor.
Hz: Frequency, V: Voltage, A: Current,
kW: Power, %: Ratio
Operation command
indication lamp
Turned on when the operation command destination is
set to the operator.
Operation key Key for stopping the motor.
This key, however, is enabled only when the operation
command destination is set to the operator. (Check
that the operation command indication lamp is on.)
STOP/RESET key Used to stop the motor or reset an alarm.
FUNC (function) key Used to enter the monitor mode, basic setting mode,
extended function mode, and function mode.
STR (store) key Used to store set values. (Be sure to press this key
when changing set values.)
Up/down key Used to change the extended function mode, function
mode, or set values.
