B-70255EN/01 5.MAINTENANCE

- 53 -

5.3.2 Changing the Exhaust Pump Oil

Check method

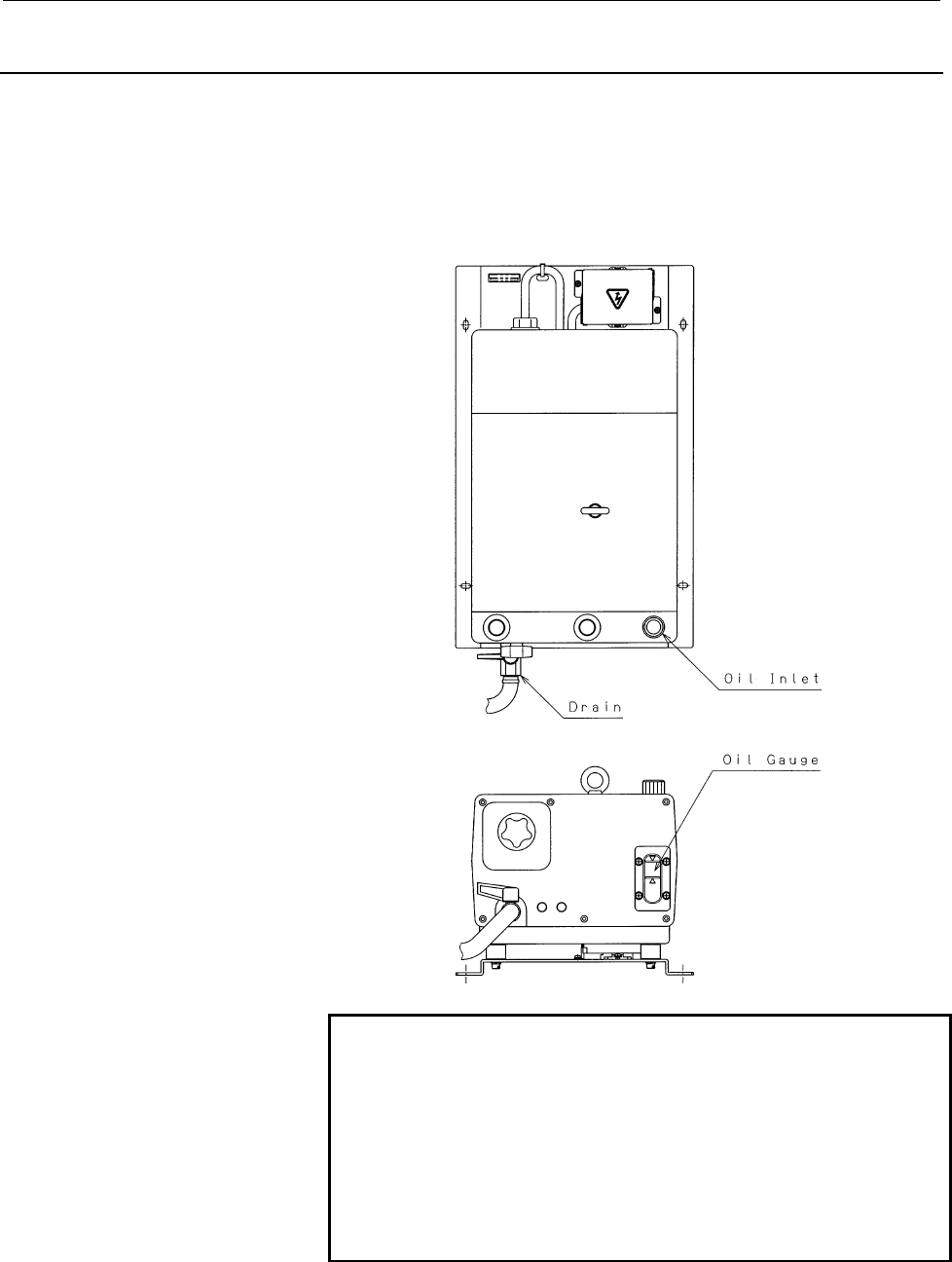

Watch the oil gauge, and check that the oil level is between

graduations L and H. Also check whether the oil is dark.If the oil

level is below L, add oil to the turbo blower or replace the oil in it. If

the oil level is above H, drain until the oil level becomes below H.

CAUTION

The exhaust of the turbo blower contains oil mist.

The exhaust pump will capture oil mist, and the

amount of exhaust pump oil increases with time.

When the oil has increased too much, the filter gets

immersed in the oil, possibly causing white mist to

come out from the pump, or oil to leak. Furthermore,

the exhaust capacity may get lowered, or the pump

may be damaged.
