10.7 REPLACING THE EXHAUST PUMP
When the exhaust pump is replaced, the gas circulating system is
open to the atmosphere for a long time. Pay particular attention to the
immediate surroundings to ensure that dust and other contaminants do
not enter the gas circulating system.

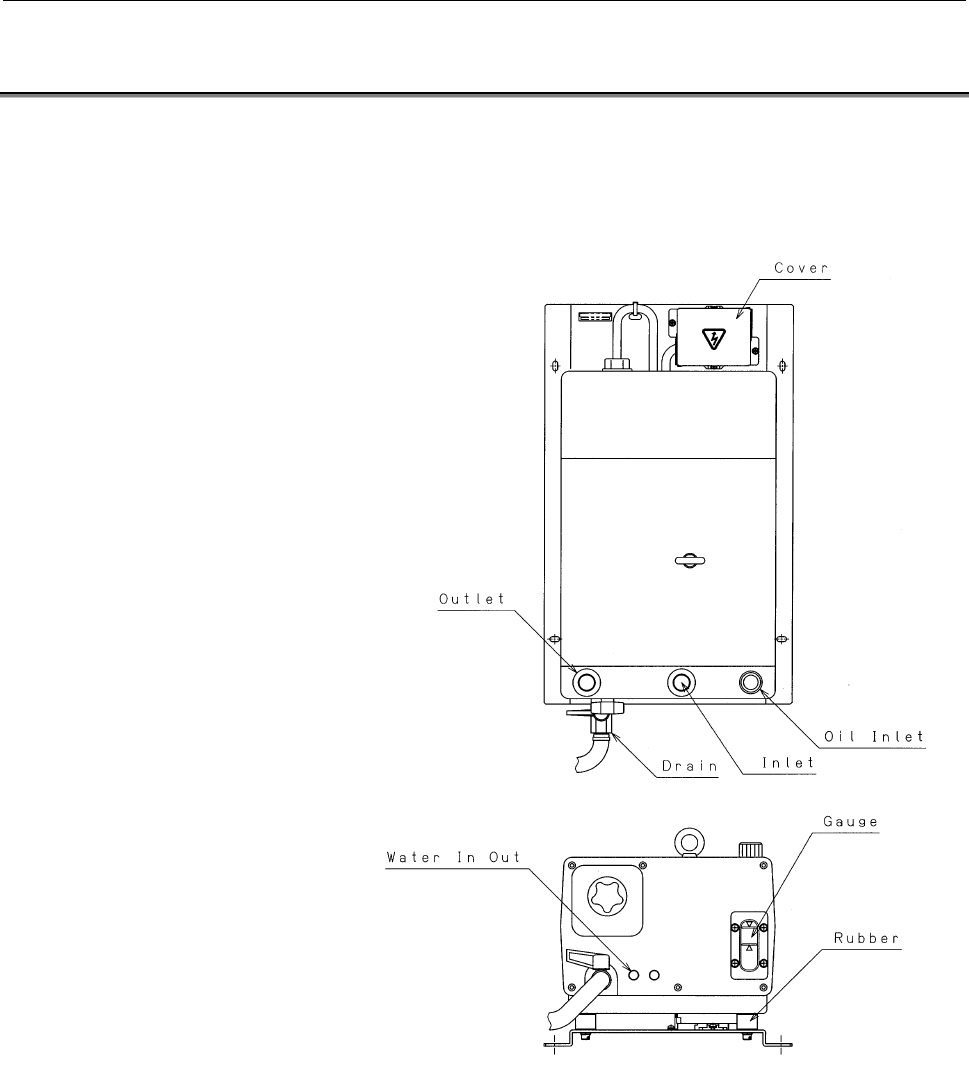

Fig. 10.7 C1000iA External view of exhaust pump
Replace the exhaust pump as follows (refer to the accompanying
figure).
(1) Turn off the power to the CNC, then turn off the power to the
laser oscillator. In addition, open the main circuit breaker for the
laser oscillator.
(2) Drain the cooling water from the oscillator, then disconnect the
two water tubes.
