Laser C 1000iA Maintenance manual Page 161

Maintenance manual
10.REPLACEMENT PROCEDURES B-70255EN/01
- 154 -
10.4 REPLACING THE TURBO BLOWER
When the turbo blower is replaced, the gas circulating system is open
to the atmosphere for a long time. Pay particular attention to the
immediate surroundings to ensure that dust and other contaminants do
not enter the gas circulating system.
Clean the flanges of the turbo blower and the pipe flanges before
replacing the turbo blower.
Do not incline the turbo blower while transporting and installing it.
Doing so will cause lubricating oil to enter the blower, contaminating
the laser gas circulating system and optical mirrors.

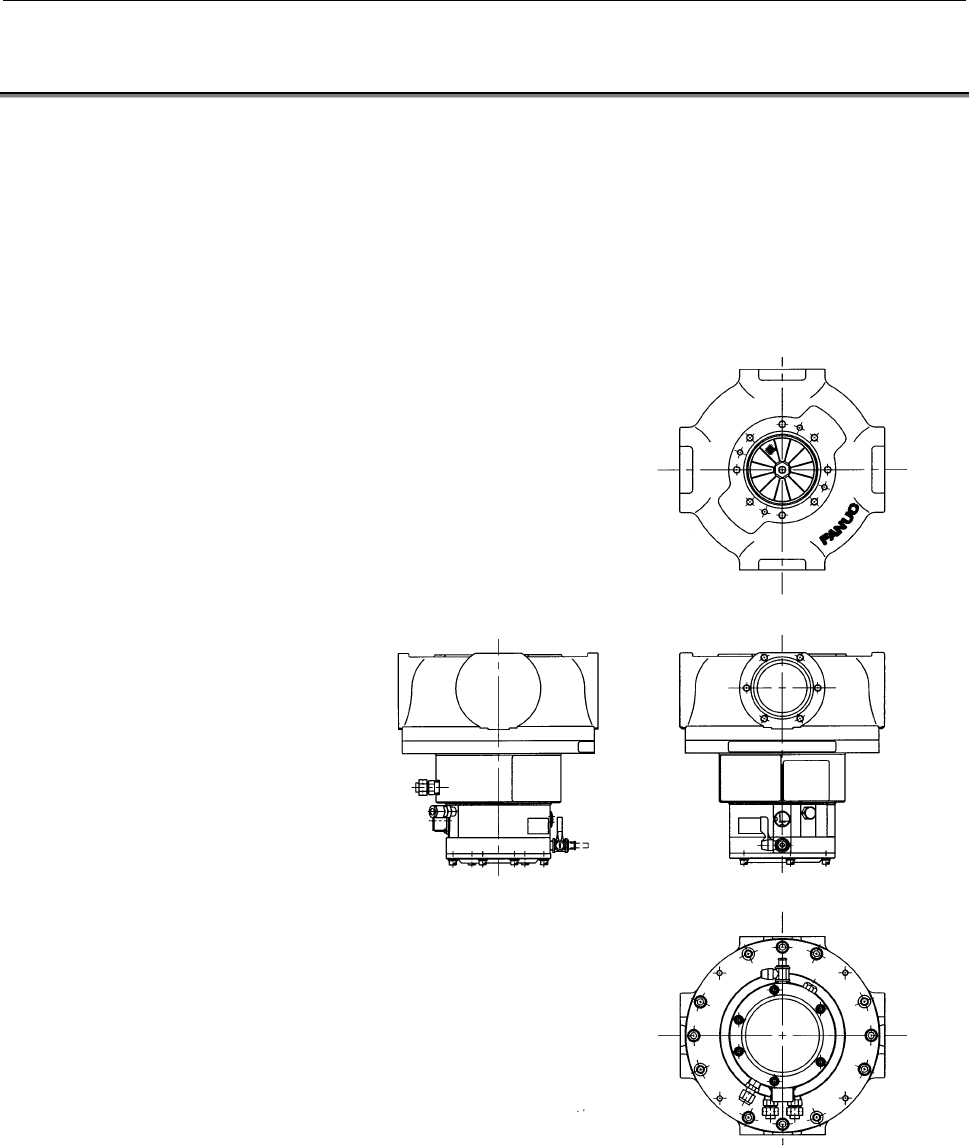

Fig.10.4 External view oft turbo blower
