B-70255EN/01 10.REPLACEMENT PROCEDURES
- 175 -
10.15 REPLACING THE WATER DISTRIBUTION UNIT

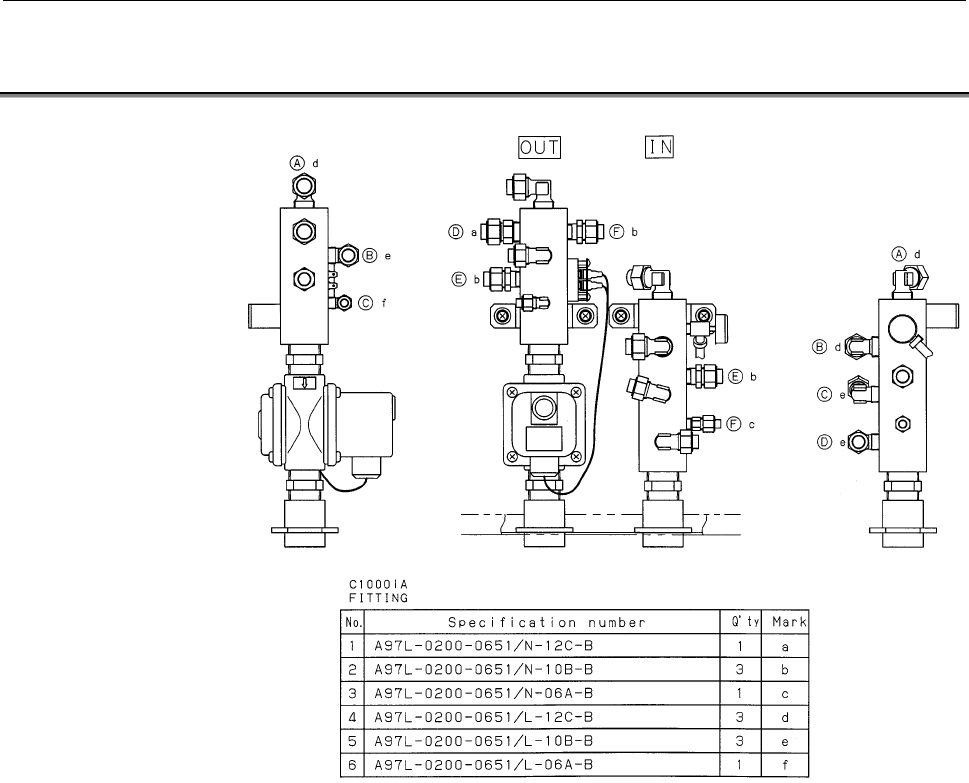

Fig. 10.16 Detail of water distribution unit for C1000iA
（Refer to water flow diagram.）
Replace the water distribution unit as follows. The IN side and OUT
side of the distribution unit of C1000iA are separated from each other,
and a different specification number is assigned to each side. Replace
only a side to be replaced.
(1) Turn off the power to the CNC, then turn off the power to the
laser oscillator. In addition, open the main circuit breaker for the
laser oscillator.
(2) Drain all cooling water from the oscillator, using compressed air,
for example. Compressed air must be supplied only from the
cooling water inlet. The structure of the water flow sensor does
not allow cooling water to be drained by compressed air supplied
from the cooling water outlet.
(3) Mark the water pipes connected to the distribution unit, then
disconnect the pipes.
(4) Remove the bolts securing the distribution unit, then remove the
unit.
