Series 16i/18i/160i/180i - PB Parameter manual Page 15

Parameter manual
B–63690EN/01
1. PARAMETERS OF THE PRESS FUNCTION
9
Address
16030
Time interval by which setting PF to 0 follows setting *PE to 0 in single–
cycle pressing
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16030 sets the time interval by which setting the PF signal to
start pressing to 0 follows setting the contact of the *PE signal to stop
pressing to 0 in single–cycle pressing.
Address
16031
Time interval between completion of positioning and the start of the next
block when PFL is set to 1
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16031 sets the time interval between completion of positioning
and the start of the next block when are PFL signal to lock the start of
pressing is set to 1.
Address
16032
Time interval by which setting of PF to 1 follows positioning in the forming
mode
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16032 sets the time interval by which setting the PF signal to
start pressing to 1 follows positioning in the forming mode (except for
nibbling).
Address
16033
Time interval by which the start of the next bolck follows setting of *PFIN to
0 in the forming mode
Data type: Byte
Unit of data: msec
Valid data range: 0 to 248
Parameter 16033 sets the time interval by which the start of the next block
follows setting the contact of the *PFIN signal to complete punching for
single–cycle pressing to 0 in the forming mode.

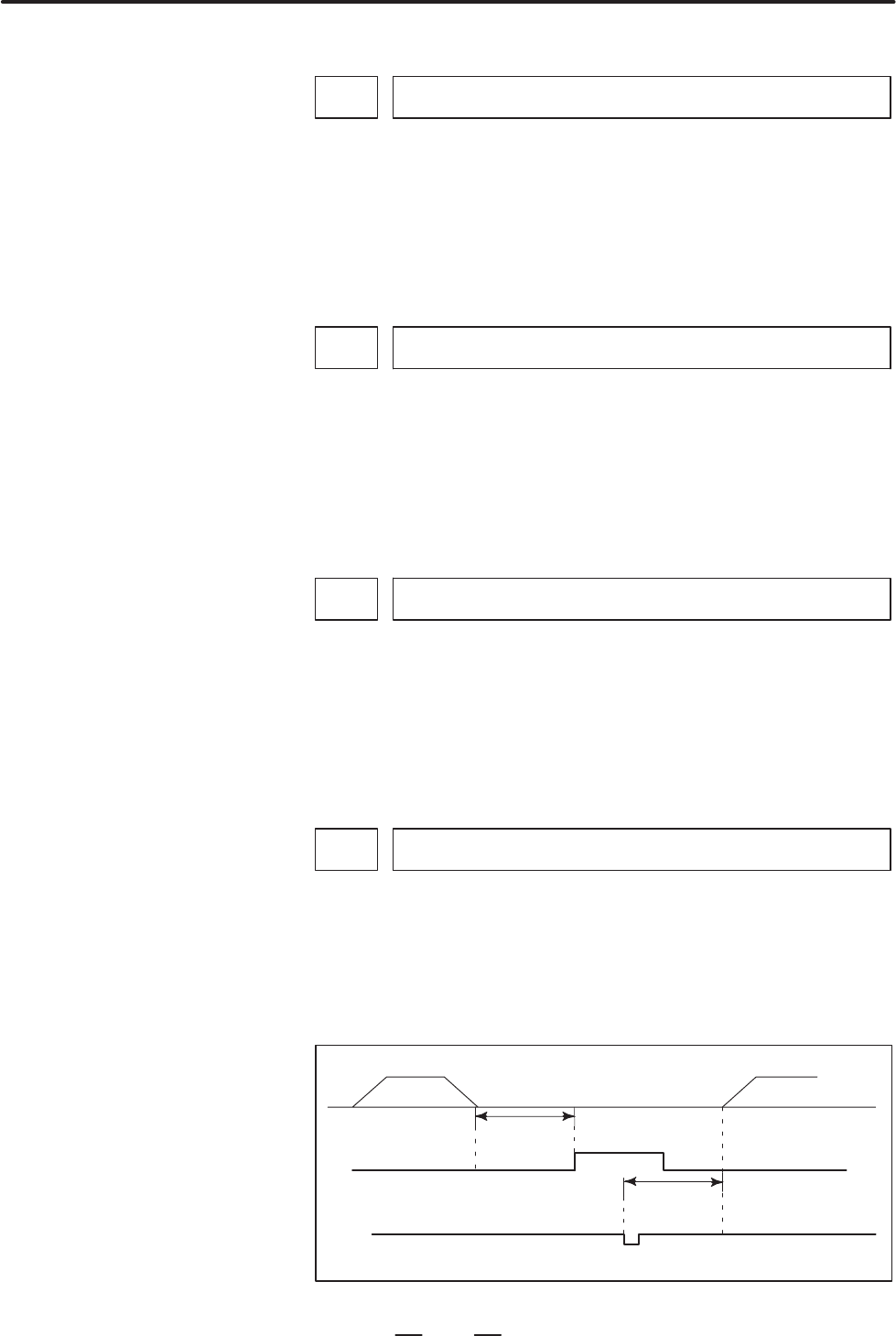

Positioning
Time set in
parameter
16032
Next block
Time set in
parameter
16033
PF
*PFIN
