9. ADDITIONAL PARAMETERS FOR DI/DO SIGNALS
B–63690EN/01
58
9
ADDITIONAL PARAMETERS FOR DI/DO SIGNALS
Address
16600 Width for the second reference position on each axis
16601 Width for the third reference position on each axis
16602 Width for the fourth reference position on each axis
Data type: Word
Unit to data:
Increment system IS–A IS–B Units
Millimeter machine 0.01 0.001 mm
Inch machine 0.001 0.0001 inch
Valid data range: 0 to 65535

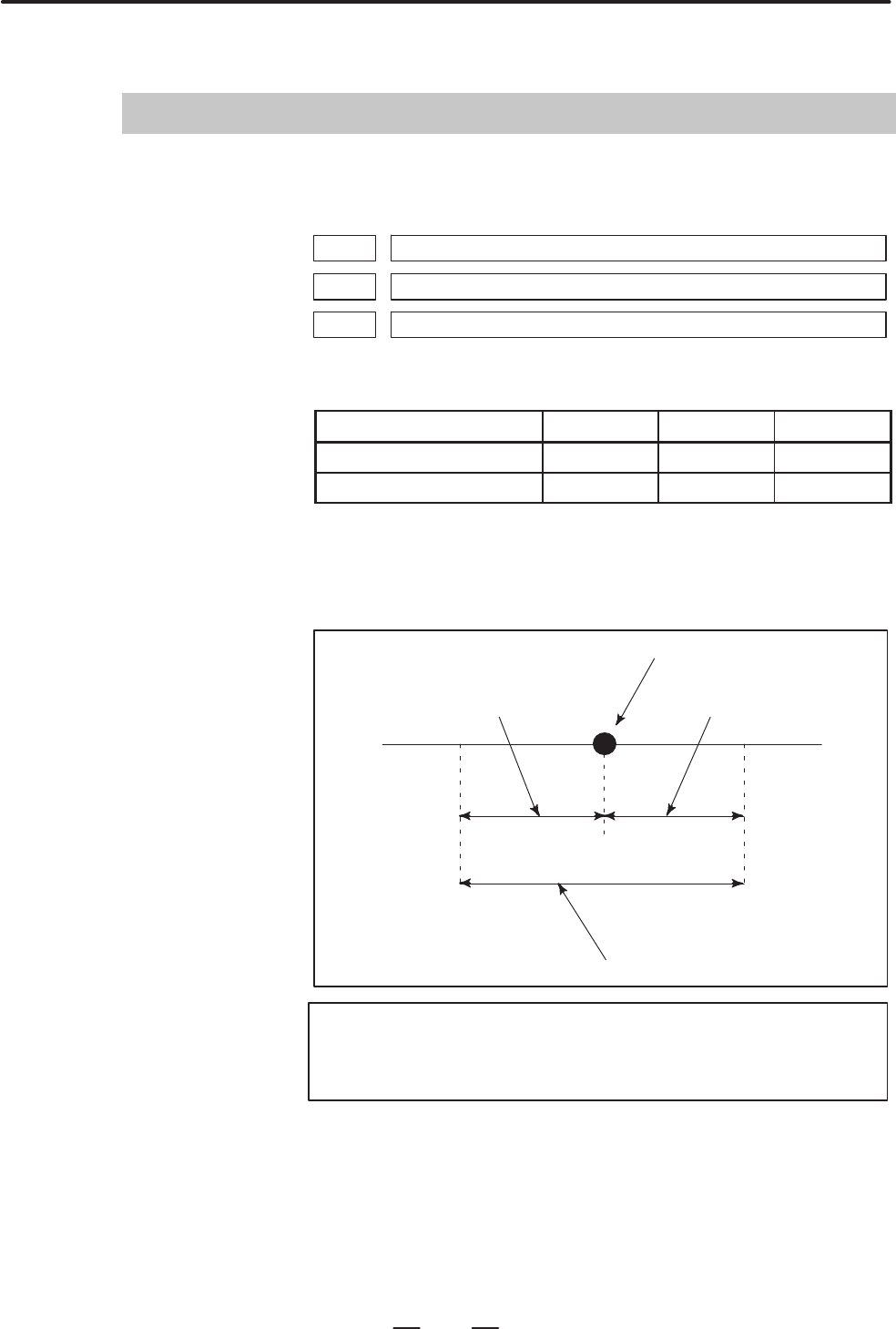

The parameters specify the width for the second, third, or fourth reference
position of the machine coordinate system. The second, third, or fourth
reference position signal is output within the range shown below:
Position specified in parameter 1241, 1242, or 1243
Negative direction
Positive direction
Second, third, or fourth reference position signal
Value specified in parame-
ter 16600, 16601, of 16602
Value specified in parame-
ter 16600, 16601, of 16602
NOTE
For a rotation axis, the specified reference position output
range must not include 0 of the machine coordinate system.
