FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
- Tool center point control cancellation command
G49 IP_ α_ β_ ; Cancels tool center point control.
IP : In the case of an absolute programming, the
coordinate value of the end point of the tool control
point movement
In the case of an incremental programming, the
amount of the tool control point movement
α, β : In the case of an absolute programming, the
coordinate value of the end point of the rotary axes
In the case of an incremental programming, the
amount of the rotary axis movement
The cancellation block for tool center point control is the one that controls
buffering.
B
Control point:
Control target on the
machine coordinate
system
Tool center point
Tool offset value

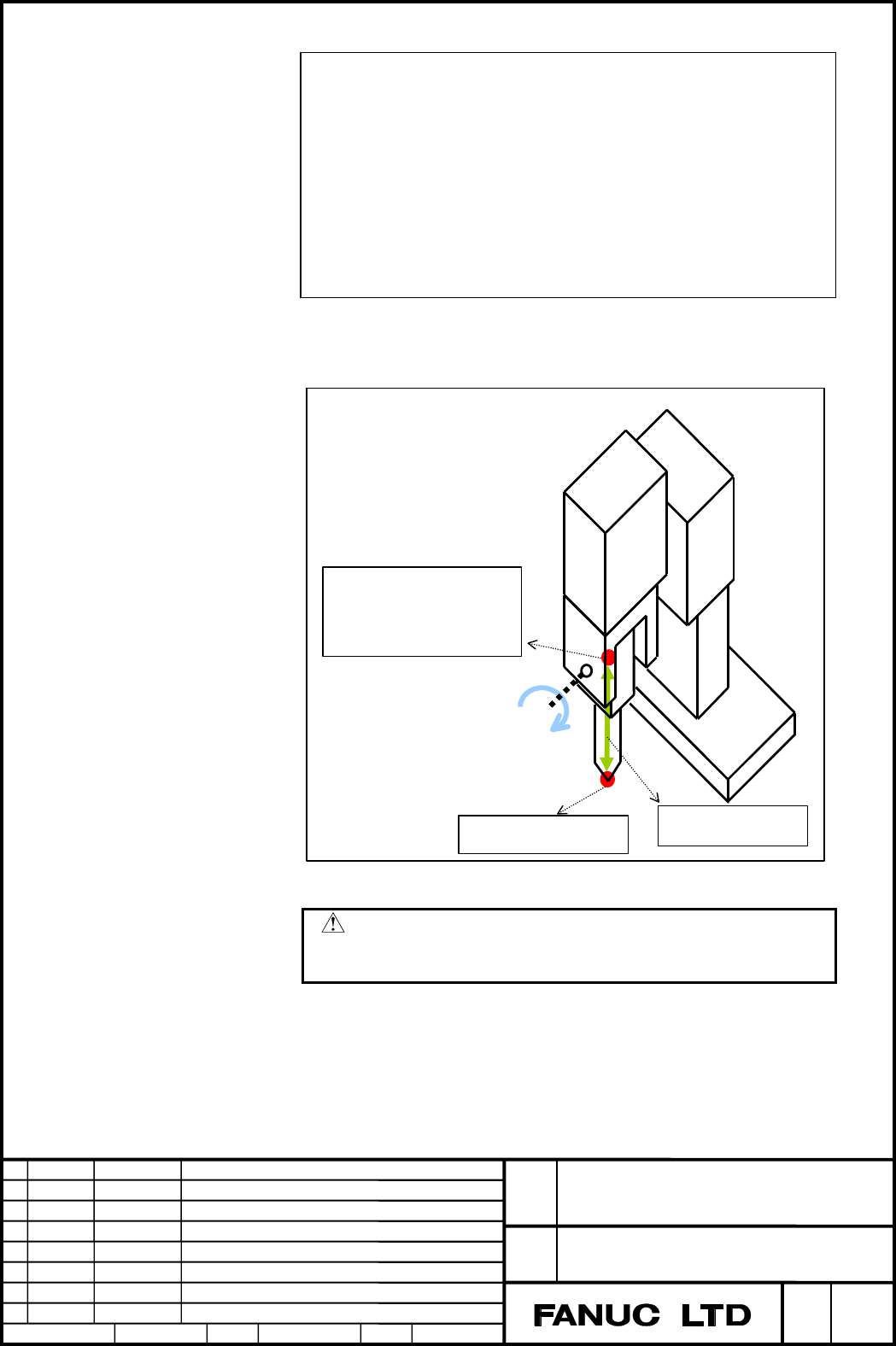

Fig. 1.1 (e) Control point and tool center point
CAUTION
The G49 command must be executed in G00 or
G01 mode.
Previous page
Next page
