Additional Manual
A-79348E
Title
Draw
No.
3/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
1.1 TOOL CENTER POINT CONTROL FOR 5-AXIS MACHINING
Overview
On a 5-axis machine having two rotary axes that turn a tool or table, this
function performs tool length compensation constantly, even in the middle of
a block, and exerts control so that the tool center point moves along the
specified path. (See Fig. 1.1 (a).)
There are three different types of 5-axis machines - <1> those that rotate the
tool only, <2> those that rotate the table only, and <3> those that rotate both
the tool and table. (See Fig. 1.1 (d).)
This function is intended to perform machining on such 5-axis machines
having rotary axes that turn a tool or table as well as three orthogonal axes
(X-, Y-, and Z-axes) by accomplishing tool length compensation while
changing the attitude of the tool. It enables the tool center point to move
along the specified path even if the tool's direction changes with respect to
the workpiece.
A coordinate system used for programming the tool center point control is
called the programming coordinate system.
A coordinate system fixed on the table can be used as the programming
coordinate system, which makes CAM programming easy.
A workpiece coordinate system fixed on a machine coordinate system can be
employed as the programming coordinate system as well. On a machine of
mixed type or table rotation type, cutter compensation for 5-axis machining
is programmed in the workpiece coordinate system. So, to use cutter
compensation for 5-axis machining and tool center point control at the same
time, the workpiece coordinate system must be used as the programming
coordinate system.
In any case, the cutting speed can be controlled easily because the tool center
point moves at a specified speed with respect to the table (workpiece).
The commands that can be issued during tool center point control are
positioning (G00), linear interpolation (G01), circular interpolation (G02,
G03), and helical interpolation (G02, G03).
Program-specified
path
Control
point
Tool length
vector
Tool center
point

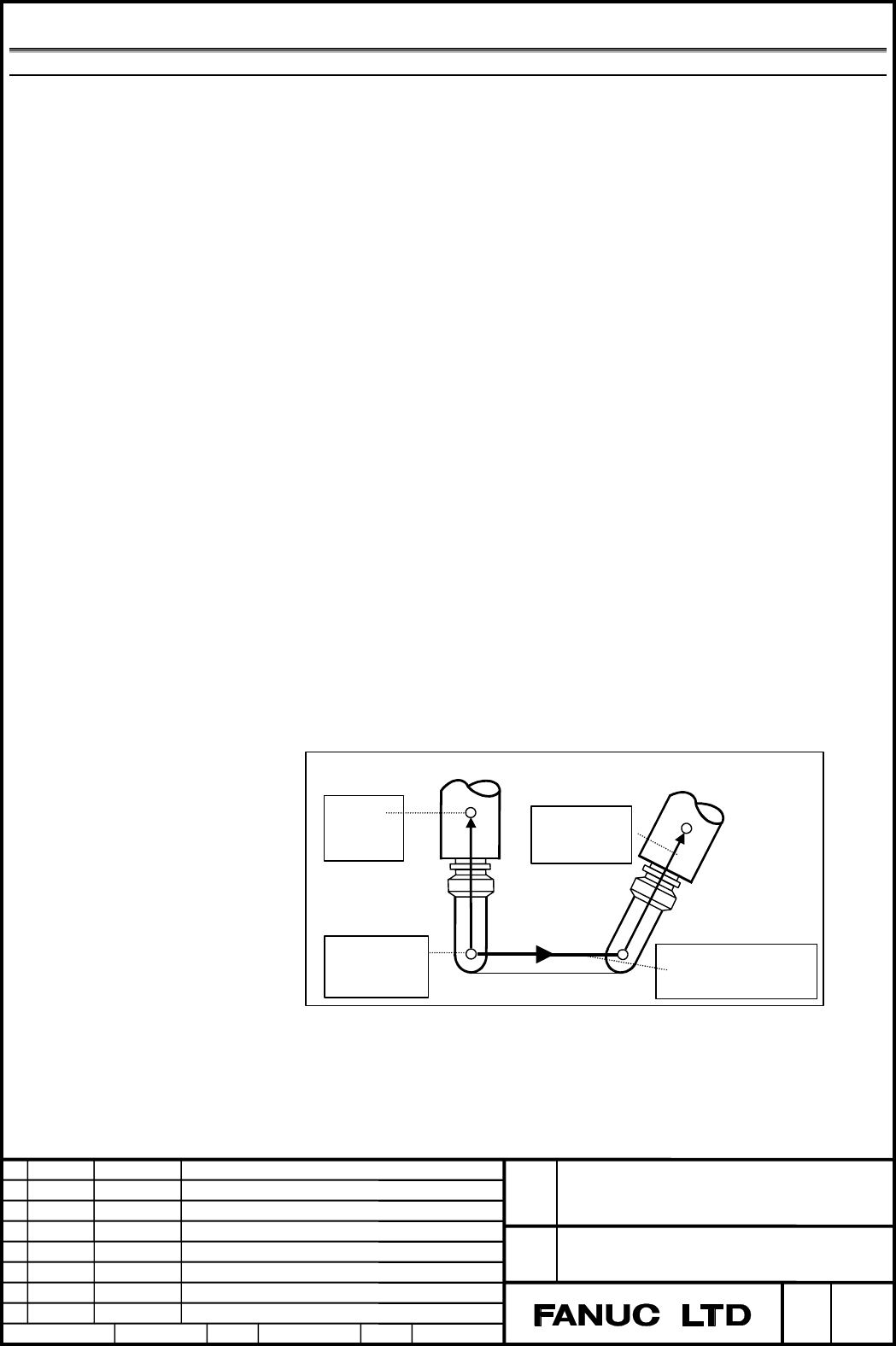

Fig. 1.1 (a) Path of the tool center point
