Series 30i-MODEL A, Tool center point control for 5-axis machining Additional Manual Page 81

Additional Manual
A-79348E
Title
Draw
No.
79/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
19697 Reference tool axis direction
[Input type] Parameter input
[Data type] Byte path
[Valid data range] 1 to 3
Set the tool axis direction in the machine coordinate system when the
rotation axes for controlling the tool are all at 0 degrees. Also, set the tool
axis direction in the machine coordinate system in a mechanism in which
only the rotation axes for controlling the table are present (there is no
rotation axis for controlling the tool).
1: Positive X-axis direction
2: Positive Y-axis direction
3: Positive Z-axis direction
When the reference tool axis direction is neither the X-, Y-, nor Z-axis
direction, set the reference direction in this parameter, then set appropriate
angles as the reference angle RA and reference angle RB (parameter Nos.
19698 and 19699).

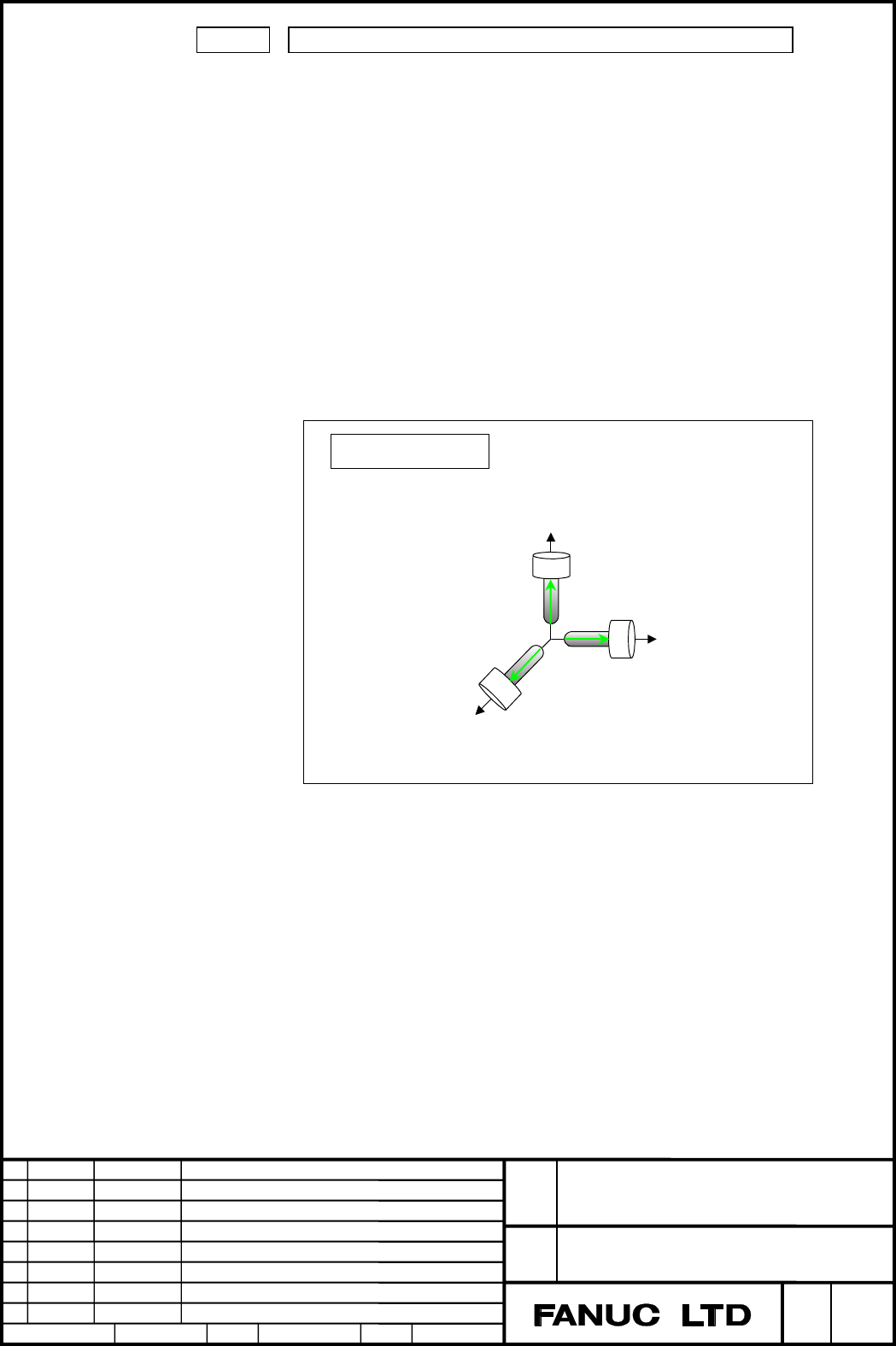

Reference tool axis direction
X
Y
Z
Tool axis direction is positive X-axis direction.
Tool axis direction is positive Y-axis direction.
Tool axis direction is positive Z-axis direction.
Previous page
Next page
