Series 30i-MODEL A, Tool center point control for 5-axis machining Additional Manual Page 25

Additional Manual
A-79348E
Title
Draw
No.
23/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.

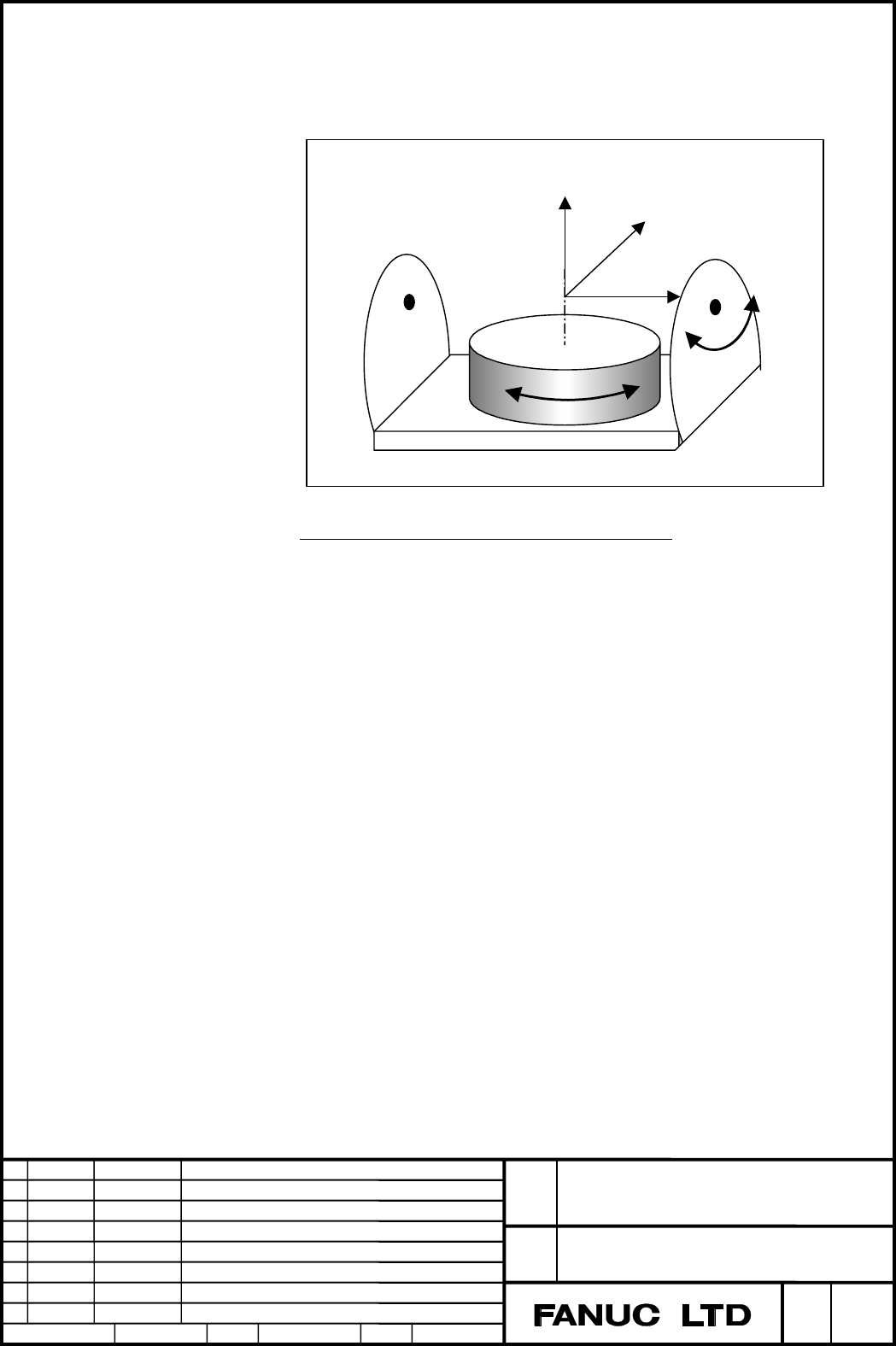

• In the case of a table rotation type machine
Descriptions are based on the following machine configuration.
A table rotation type machine can be considered equivalent to a mixed
type machine if any of its two table rotation axes does not move.
C
Y
Z
A
Workpiece coordinate
system
X
When the G17 (X-Y plane) command is executed
The master axis (A-axis) moves before the G43.4 command and, after the
G43.4 command, circular interpolation is performed without rotating the A-
or C-axis (including those cases where the C-axis moves before the G43.4
command). → This case corresponds to <2> and allows circular
interpolation.
Example)
:
G01 A90. (C10.);
G43.4 H1 ;
G17 G02
IP IR ;
:
