FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
19698 Angle when the reference tool axis direction is tilted (reference angle RA)
19699 Angle when the reference tool axis direction is tilted (reference angle RB)
[Input type] Parameter input
[Data type] Real path
[Unit of data] Degree
[Minimum unit of data] Depend on the increment system of the reference axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting
(When the increment system is IS-B, -999999.999 to +999999.999)
When the reference tool axis direction (parameter No. 19697) is set to 1, the
tool axis is tilted the RA degrees on the Z-axis from the positive X-axis
direction to positive Y-axis direction, then the tool axis is tilted the RB
degrees on the X-axis from the positive Y-axis direction to positive Z-axis
direction.
When the reference tool axis direction (parameter No. 19697) is set to 2, the
tool axis is tilted the RA degrees on the X-axis from the positive Y-axis
direction to positive Z-axis direction, then the tool axis is tilted the RB
degrees on the Y-axis from the positive Z-axis direction to positive X-axis
direction.
When the reference tool axis direction (parameter No. 19697) is set to 3, the
tool axis is tilted the RA degrees on the Y-axis from the positive Z-axis
direction to positive X-axis direction, then the tool axis is tilted the RB
degrees on the Z-axis from the positive X-axis direction to positive Y-axis
direction.

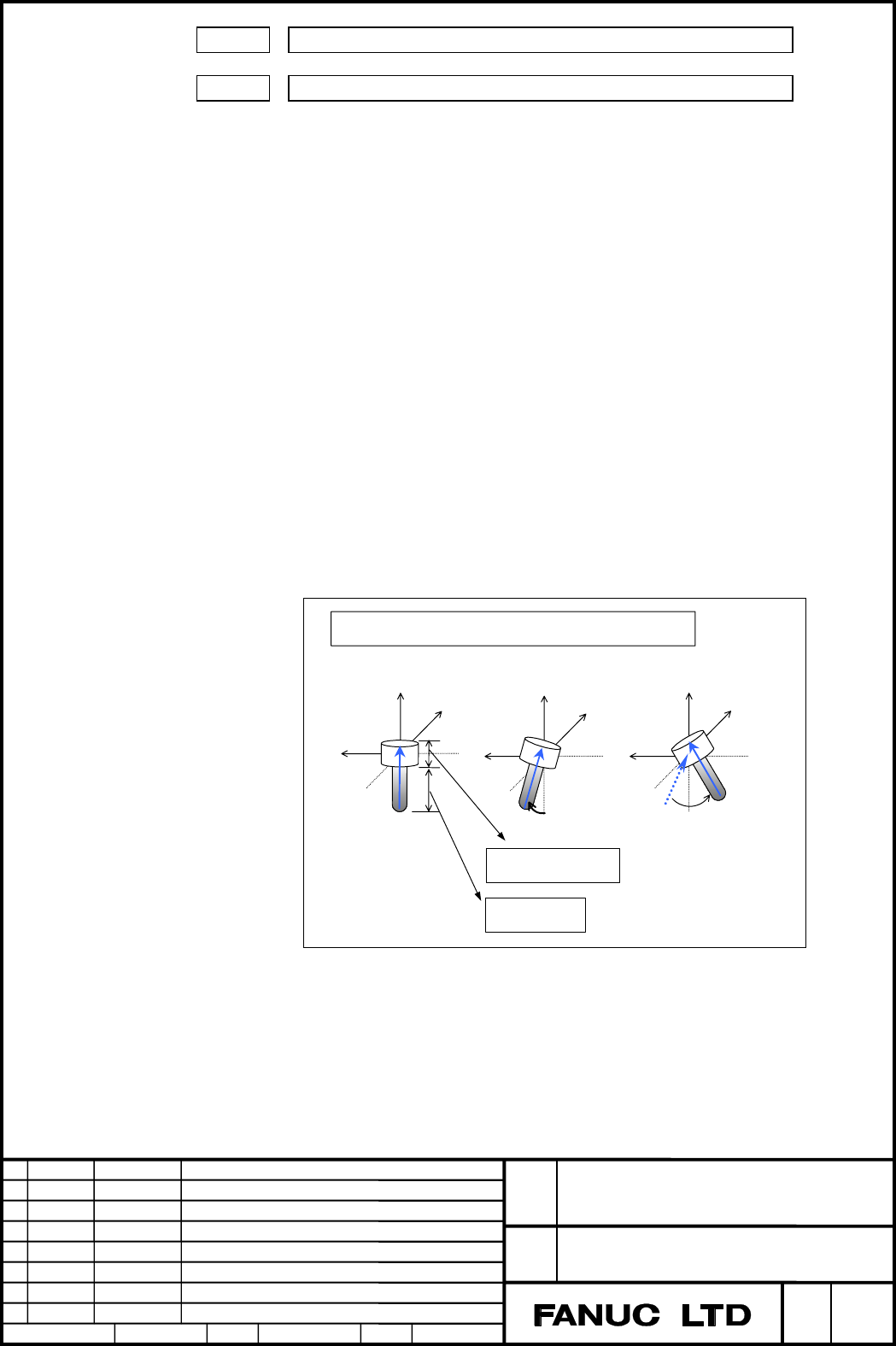

Tool axis direction when the reference tool axis direction is Z-axis
RA
X
Y
Z
X
Y
Z
RB
X
Z
Tool holder offset
Tool length offset
Y
