FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
<2> Example of setting parameters for a table rotation type machine
Shown below is an example of setting parameters for a table rotation type
machine.
Rotation axis A is a table rotation axis (master) on the X-axis.
Rotation axis B is a table rotation axis (slave) on the Y-axis.
Rotary table position
(PRM19700,19701,19702)
Machine coordinate system Xm-Ym-Zm
Table rotation type machine
A
Center of first rotary axis of table
Center of second rotary axis of table
B
Intersection offset vector between first and
second rotary axes of table
(PRM19703,19704,19705)
Zm
Ym
Xm

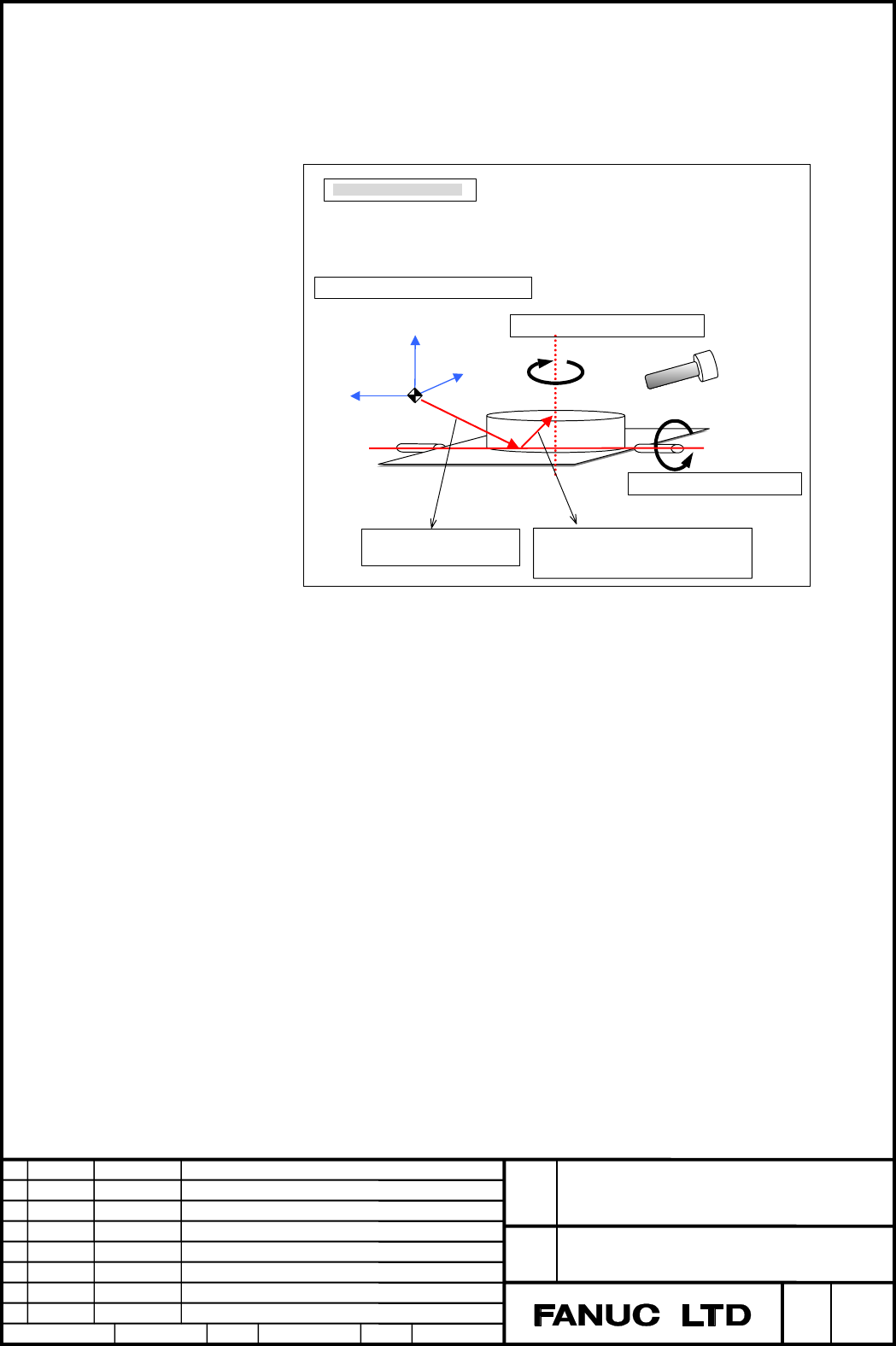

Fig. 1.1 (q) Table rotation type machine example
In the above table rotation type machine, if rotation axes A and B are at 0
degrees, assume the following:
Tool holder offset value = 2.0
Rotary table position = (-10.0,-30.0,0)
Intersection offset vector between the first and second rotation axes of the
table = (0,8.0,8.0)
Then, the parameters for the above table rotation type machine are set as
follows:
