Series 30i-MODEL A, Tool center point control for 5-axis machining Additional Manual Page 65

Additional Manual
A-79348E
Title
Draw
No.
63/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
(2) Examples of setting parameters
There are many parameters related to this function.
Therefore, it is recommended that parameters for a target machine be set
based on some examples. Those examples are given below.
<1> Example of setting parameters for a tool rotation type machine
Shown below is an example of setting parameters for a tool rotation type
machine .
Rotation axis C is a tool rotation axis (master) on the Z-axis.
Rotation axis B is a tool rotation axis (slave) on the Y-axis.
Machine coordinate system Xm-Ym-Zm
C
Tool rotation type machine
Intersection offset vector between tool axis and
second rotary axis of tool
(PRM19709,19710,19711)
Tool holder offset value
(PRM19666)
B
Intersection offset vector between
second and first rotary axes of tool
(PRM19712,19713,19714)
Zm
Ym
Xm

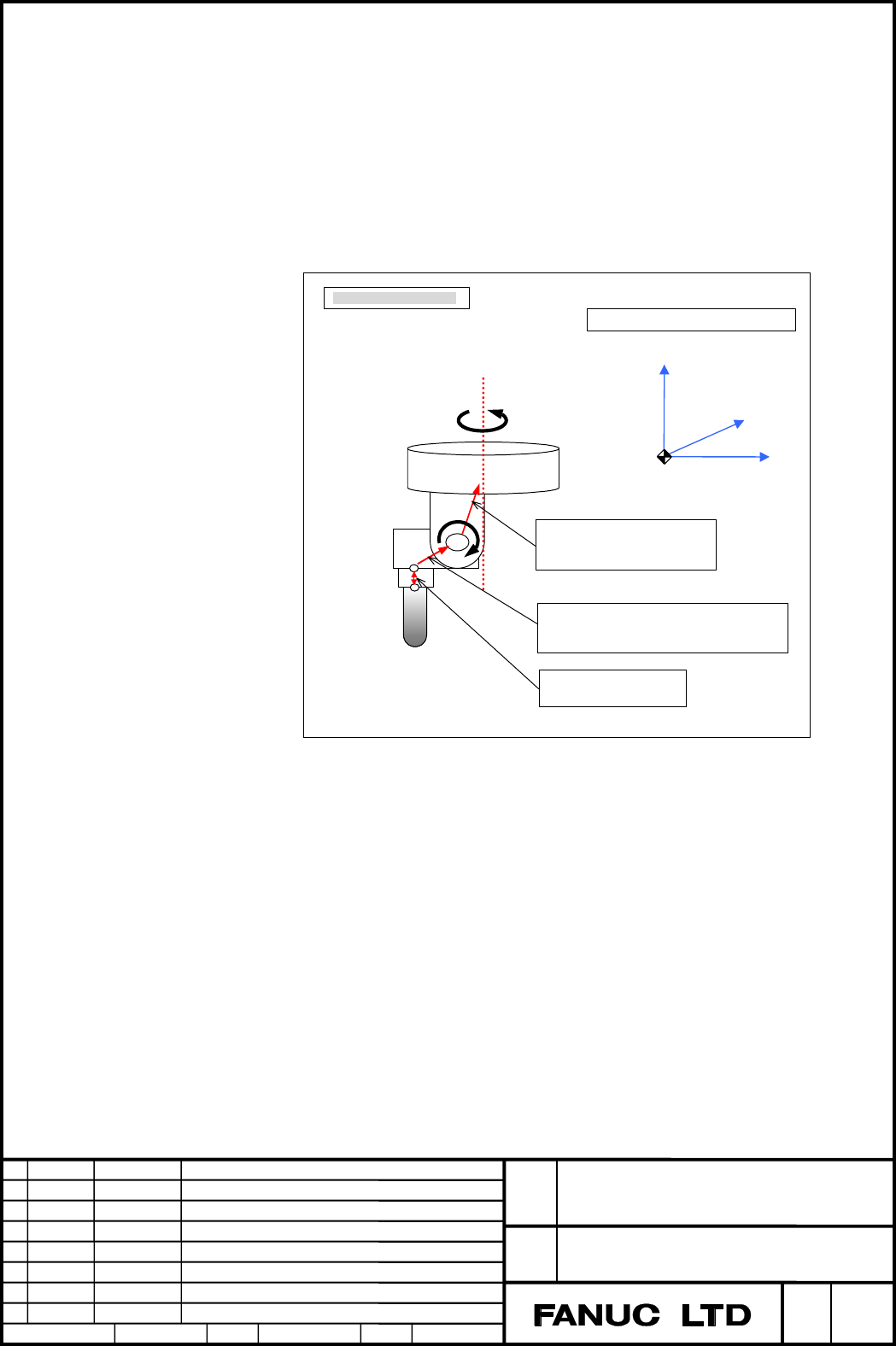

Fig. 1.1 (p) Tool rotation type machine example
In the above tool rotation type machine, if rotation axes B and C are at 0
degrees, assume the following:
Tool holder offset value = 2.0
Intersection offset vector between the tool axis and the second rotation axis
of the tool = (5.0,0,3.0)
Intersection offset vector between the second and first rotation axes of the
tool = (3.0,3.0,8.0)
Then, the parameters for the above tool rotation type machine are set as
follows:
