Series 30i-MODEL A, Tool center point control for 5-axis machining Additional Manual Page 83

Additional Manual
A-79348E
Title
Draw
No.
81/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
19700 Rotary table position (X-axis of the basic three axes)
19701 Rotary table position (Y-axis of the basic three axes)
19702 Rotary table position (Z-axis of the basic three axes)
[Input type] Parameter input
[Data type] Real path
[Unit of data] mm, inch (machine unit)
[Minimum unit of data] Depend on the increment system of the applied axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting table
(A))
(When the increment system is IS-B, -999999.999 to +999999.999)

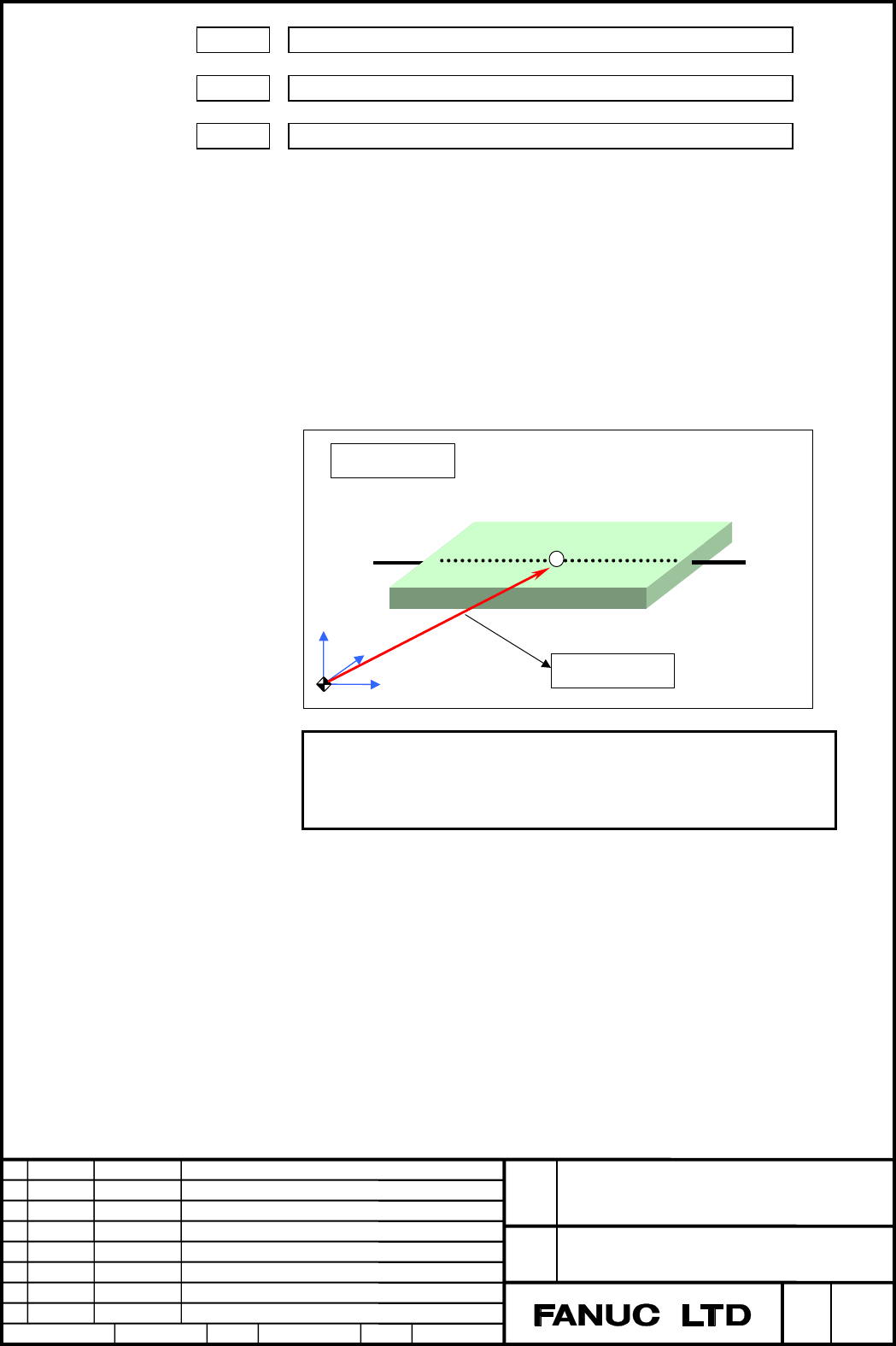

Set these parameters when parameter No. 19680 is set to 12 or 21. The
vector from the origin of the machine coordinate system to point A on the
first rotation axis of the table is set as the rotary table position in the machine
coordinate system.
Rotary table position
Zm
Ym
Xm
First rotary axis o
f
table
Rotary table position
A
NOTE
As point A, set a position that is easy to measure
on the first rotary axis of the table.
Set a radius value.
