Series 30i-MODEL A, Tool center point control for 5-axis machining Additional Manual Page 23

Additional Manual
A-79348E
Title
Draw
No.
21/88
page
FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
- Notes on performing circular interpolation and helical interpolation when using the
workpiece coordinate system as the programming coordinate system
• The start point, end point, and center of an arc change as the table
rotation axis rotates.
• I, J, K commands the vector of the block start point to the center of the
arc from the start point in the rotary axis position.
• Note the following:
<1> Only a table rotation axis normal to a selected plane can be rotated
during circular interpolation.
<2> During circular interpolation, those table rotation axes not normal
to a selected plane must continue to be at the same position as
when tool center point control is started.
If <1> or <2> is not satisfied, the alarm PS5421 is issued.
No restriction is imposed on rotation on a tool rotation axis.
- Program examples

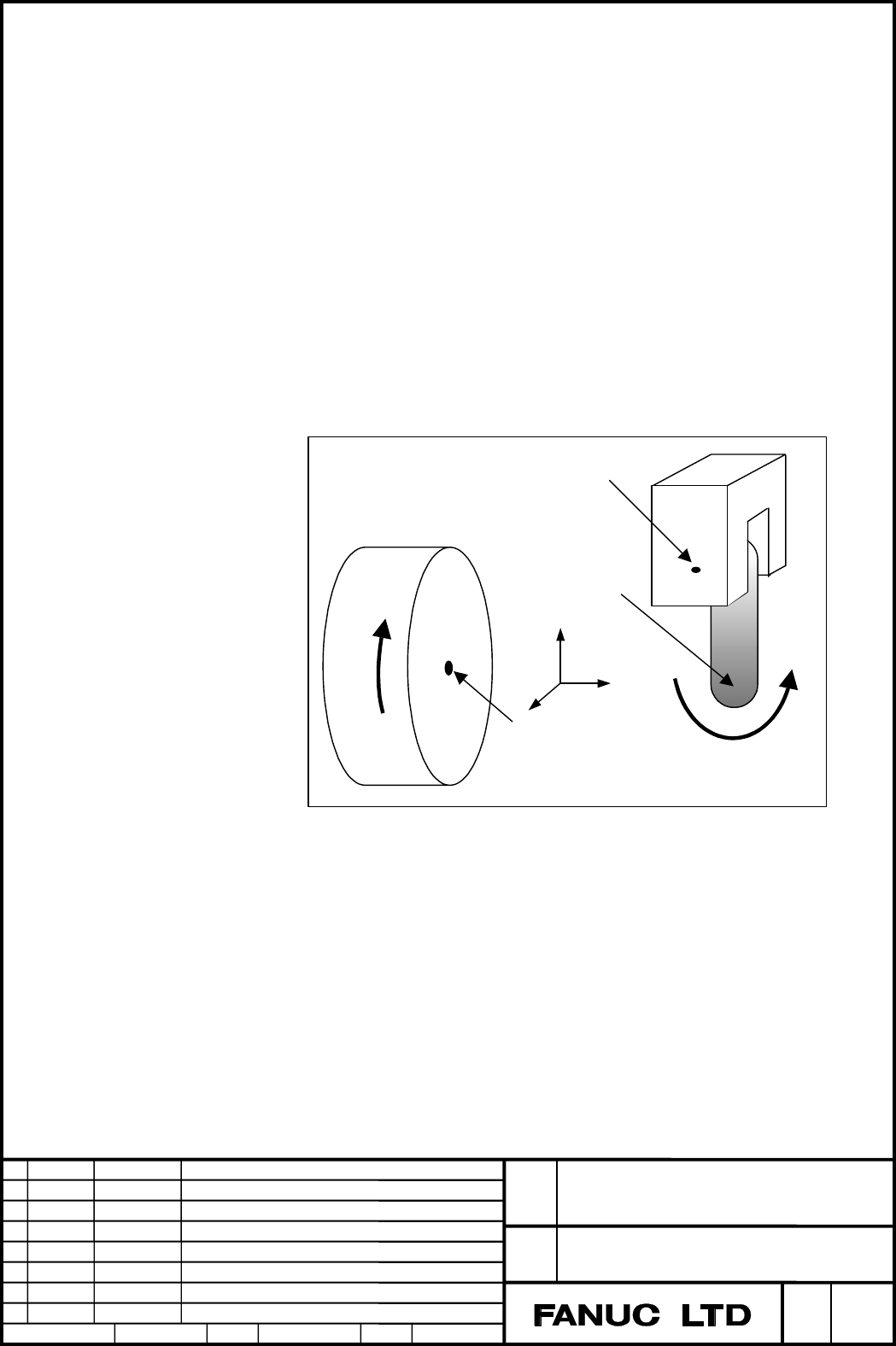

• In the case of a mixed type machine
Descriptions are based on the following machine configuration.
C-axis
Center of C-axis rotation
Z-axis
Y-a xis
X-axis
B-axis
Center of B-axis rotation
Tool center point
Workpiece
coordinate system
