FANUC Series 30i-MODEL A
Tool center point control
for 5-axis machining
Ed. Date Design Description
Date Jan.16.’04 Design. Apprv.
19712
Intersection offset vector between the second and first rotation axes of the
tool (X-axis of the basic three axes)
19713
Intersection offset vector between the second and first rotation axes of the
tool (Y-axis of the basic three axes)
19714
Intersection offset vector between the second and first rotation axes of the
tool (Z-axis of the basic three axes)
[Input type] Parameter input
[Data type] Real path
[Unit of data] mm, inch (machine unit)
[Minimum unit of data] Depend on the increment system of the applied axis
[Valid data range] 9 digit of minimum unit of data (refer to standard parameter setting table
(A))
(When the increment system is IS-B, -999999.999 to +999999.999)
Set these parameters when the rotation axes of the tool do not intersect.
These parameters are valid when parameter No. 19680 is set to 2.
Set the vector from point E on the second rotation axis of the tool to point F
on the first rotation axis of the tool as the intersection offset vector in the
machine coordinate system when the rotation axes for controlling the tool
are all at 0 degrees.

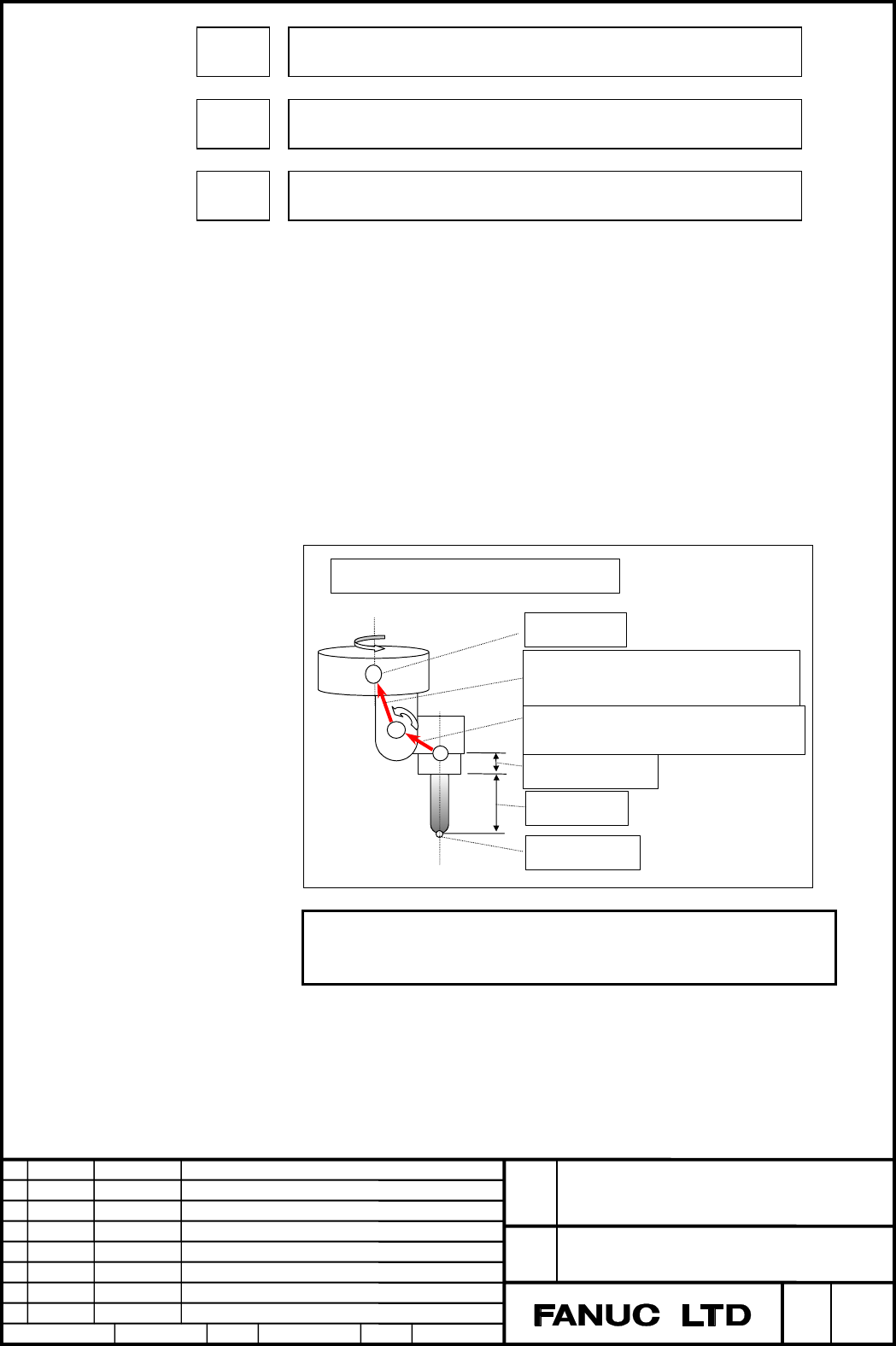

When tool axis and tool rotary axis do not intersect
Tool length offset
Tool holder offset
Intersection offset vector between tool axis and second
rotary axis of tool
D
E
Tool center point
Controlled point
Second rotary
axis of tool
F
First rotary axis of tool
Intersection offset vector between second and first rotary
axes of tool
NOTE
As point F, set a position that is easy to measure.
Set a radius value.
