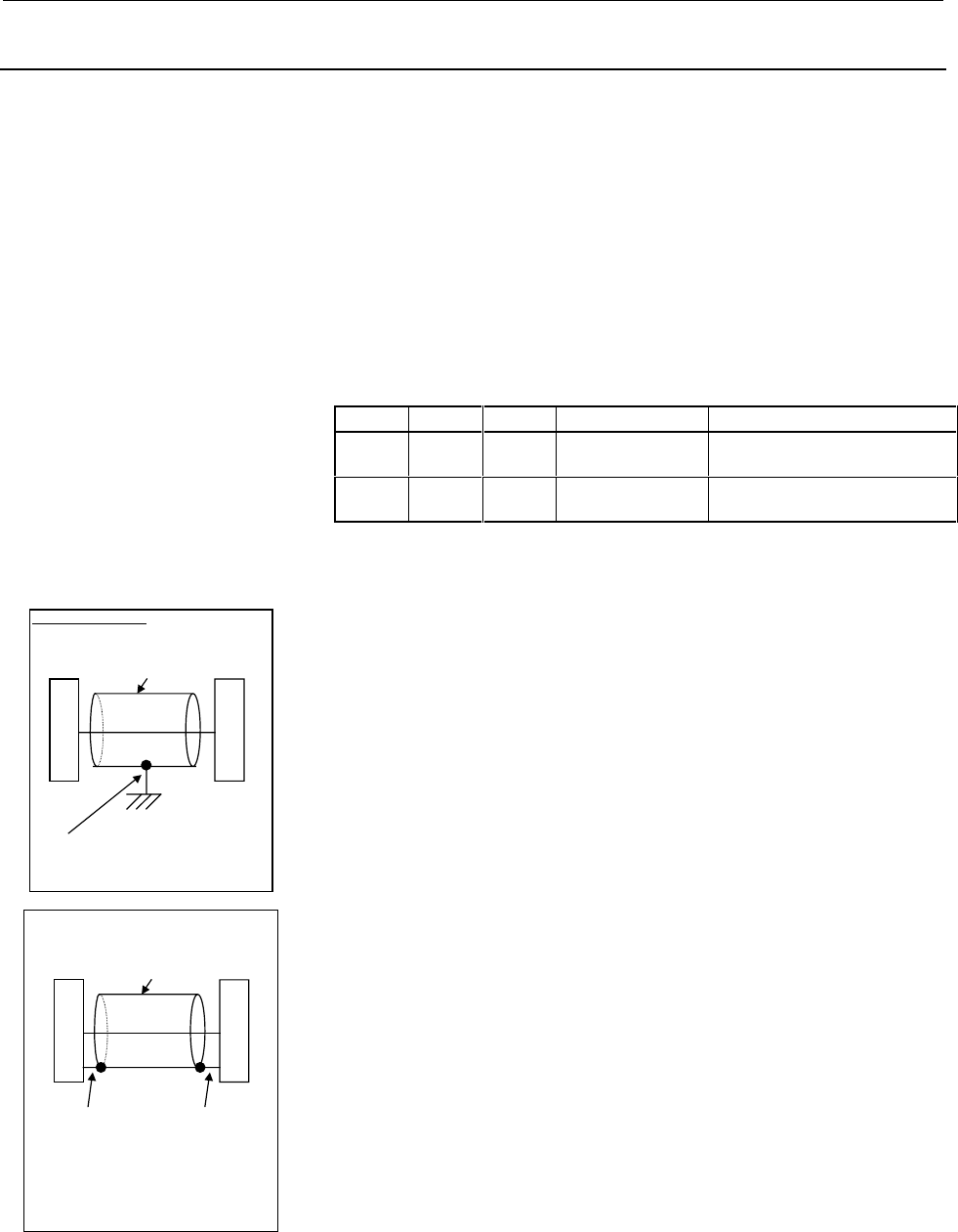

3.4.2.2 Alarm code 41
<1> The position where the one-rotation signal of the α position coder
is generated is incorrect.
<2> The position where the one-rotation signal of the MZ sensor or BZ
sensor is generated is incorrect.
<3> The position where the one-rotation signal of α position coder S is
generated is incorrect.
(1) If orientation based on the external one-rotation method is used
(a) The settings of parameters are incorrect.
Check that the gear ratio data matches the specification of
the machine.
FS0 FS15 FS15i FS16i/16, PM-D/F Description
6935
6937
3315
3317
3171
3173
4171
4173
Number of teeth on the spindle
side
6936
6938
3316
3318
3172
3174
4172
4174
Number of teeth on the position
detector side
(b) Slippage between the spindle and motor
Check that there is no slippage between the spindle and
motor. Orientation based on the external one-rotation
method is not applicable to V-belt connection.
(2) Troubleshooting in other cases
(a) The setting of a parameter is incorrect.
Referring to "FANUC AC SPINDLE MOTOR α series
Parameter Manual (B-65160E)," check the parameter for
sensor setting.
(b) A sensor (MZ sensor or BZ sensor) is not adjusted correctly.
Adjust the sensor according to Subsection 4.3.4 of Part I of
this manual. If the signal is not observed, replace the sensor.
(c) The α position coder is faulty.
Check the check pin PSD on the spindle check board. If the
signal is not generated per rotation, replace the position
coder.
(d) The shielding of the cable between the sensor and SPM is
faulty.
Referring to Chapter 9, "Connection," in "FANUC SERVO
AMPLIFIER α series Descriptions (B-65162E)," check the
shielding of the cable.
(e) The signal cable is bundled with the servo motor power line.
If the cable between the sensor and SPM is bundled with the
servo motor power line, separate them from each other.
(f) The SPM is faulty.
Replace the SPM or SPM control printed circuit board.
S
P
M
Sensor
The cable is
connected to the
pin specified in
the specifications
on the sensor
side.
The cable is
connected to
pin 10 on the
SPM side.
Shielded cable
MZ or BZ sensor
S
P
M
Sensor
Connected to the frame
ground via a cable clamp.
Shielded cable
α position coder
