4. CONFIRMATION OF

THE OPERATION START-UP PROCEDURE B-65165E/02

- 46 -

4.2.2 Checking The STATUS Display

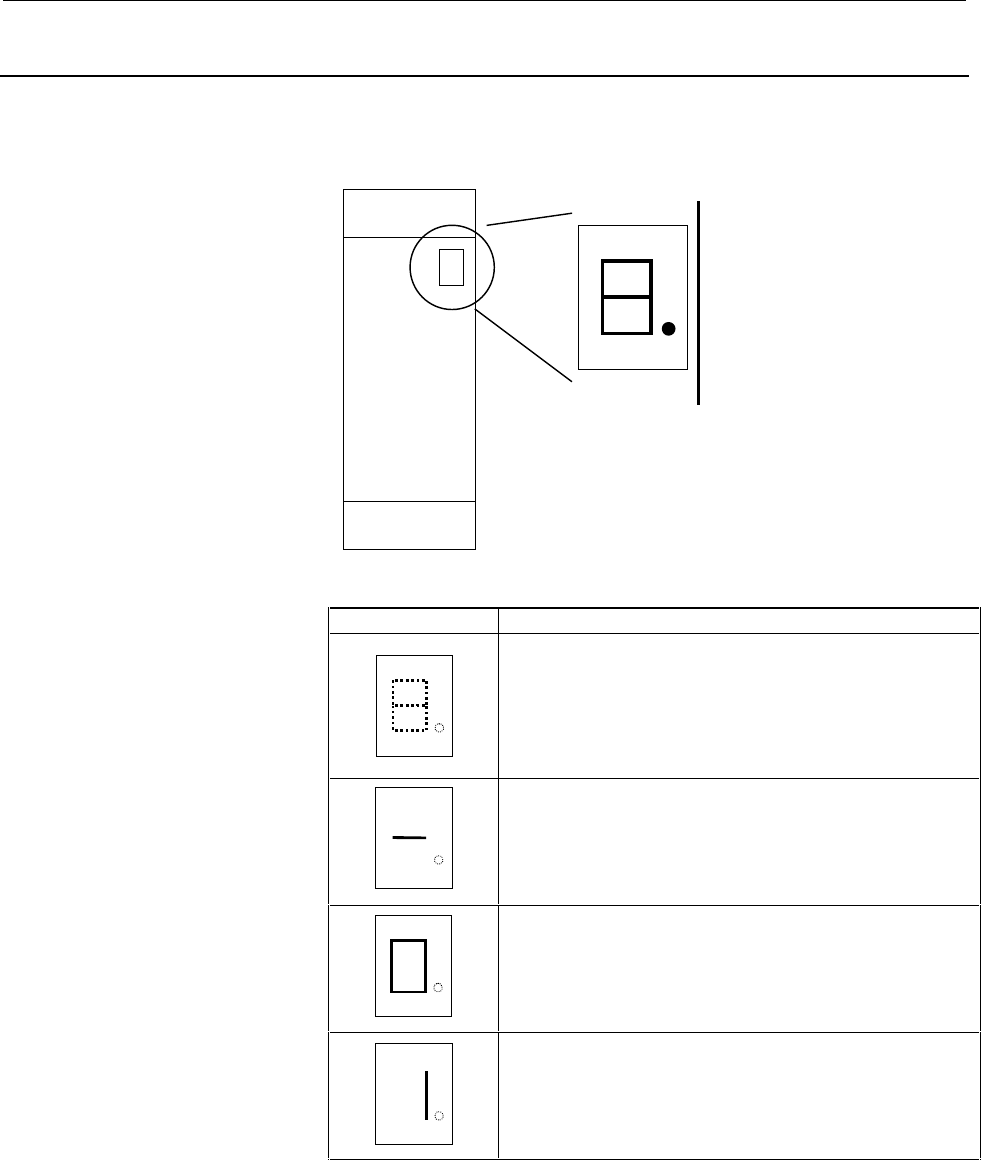

The STATUS display (a 7-segment LED) on the front of the SVM

indicates the operation status.

STATUS

STATUS display Description

• The STATUS display LED is not on.

<1> Power is not turned on.

<2> Poor cable connection

Check the cable.

<3> The servo amplifier is defective.

Replace the fuse (F1) or servo amplifier.

• The control power supply is waiting for a ready signal.

• The servo amplifier is ready to operate.

The servo motor is supplied with power.

• Alarm state

If an alarm is issued in the servo amplifier, a value other

than "0" and "-" is indicated on the STATUS display

LED. See Section 3.2 of Part II.
