B-65165E/02 TROUBLESHOOTING

- 203 -

4. HOW TO REPLACE THE FUSES

AND PRINTED CIRCUIT BOARDS

4.3 OTHER COMPONENTS

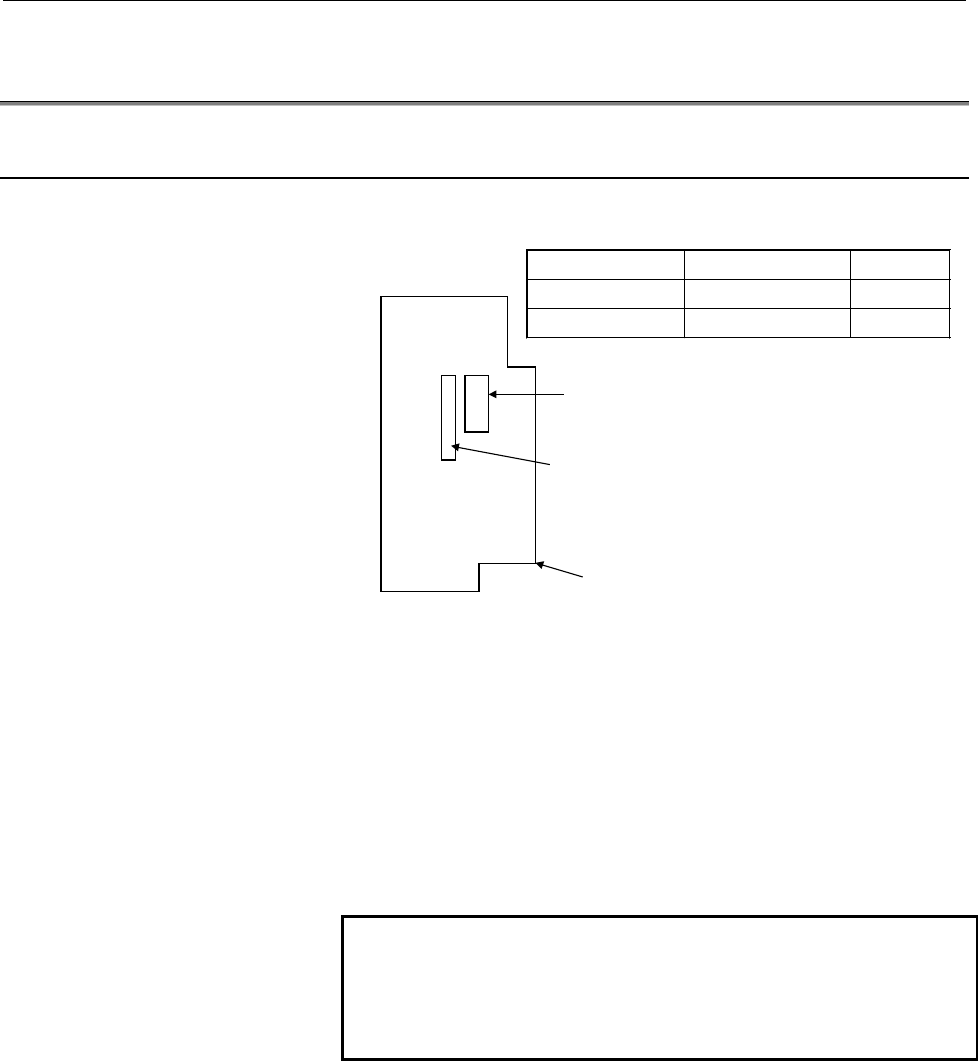

4.3.1 Replacing the SPM Program ROM and Spindle Sensor Module

(1) SPM type 1 and type 4

ROM (Note that the notch is upward.)

Name Specification drawing No. Remarks

ROM A06B-6102-H520 9D20 series

Spindle sensor module A20B-2902-0620 For type 4 only

AM1

Spindle sensor module: For A16B-2203-0503-0505 only

Control printed circuit board (A16B-2203-0500-0505)

(2) SPM types 1 to 4

The drawing number of the spindle sensor module differs

depending on the SPM type as follows:

SPM type 2: A20B-2901-0851

Mounting location = MD4, MD5, MD6

SPM type 4: A20B-2902-0620 (old specification A20B-2902-

0610 also allowed)

Mounting location = MD4, MD6

NOTE

For SPM type 4, the revision of the control printed

circuit board must be the following:

A16B-2202-0433, 0434: 16E or later

A16B-2202-0435: 13C or later
