B-65165E/02 START-UP PROCEDURE 3. START-UP PROCEDURE

- 29 -

3.3.3 Spindle Amplifier Module

3.3.3.1 α series spindle amplifier module (SPM)

This type of modules do not have a DIP switch except the modules of

which specification drawing numbers are A06B-6072-H***#00xx (D

series spindle amplifier modules) and A06B-6078-H***#H5xx (non-

CE-marked α series spindle amplifier modules).

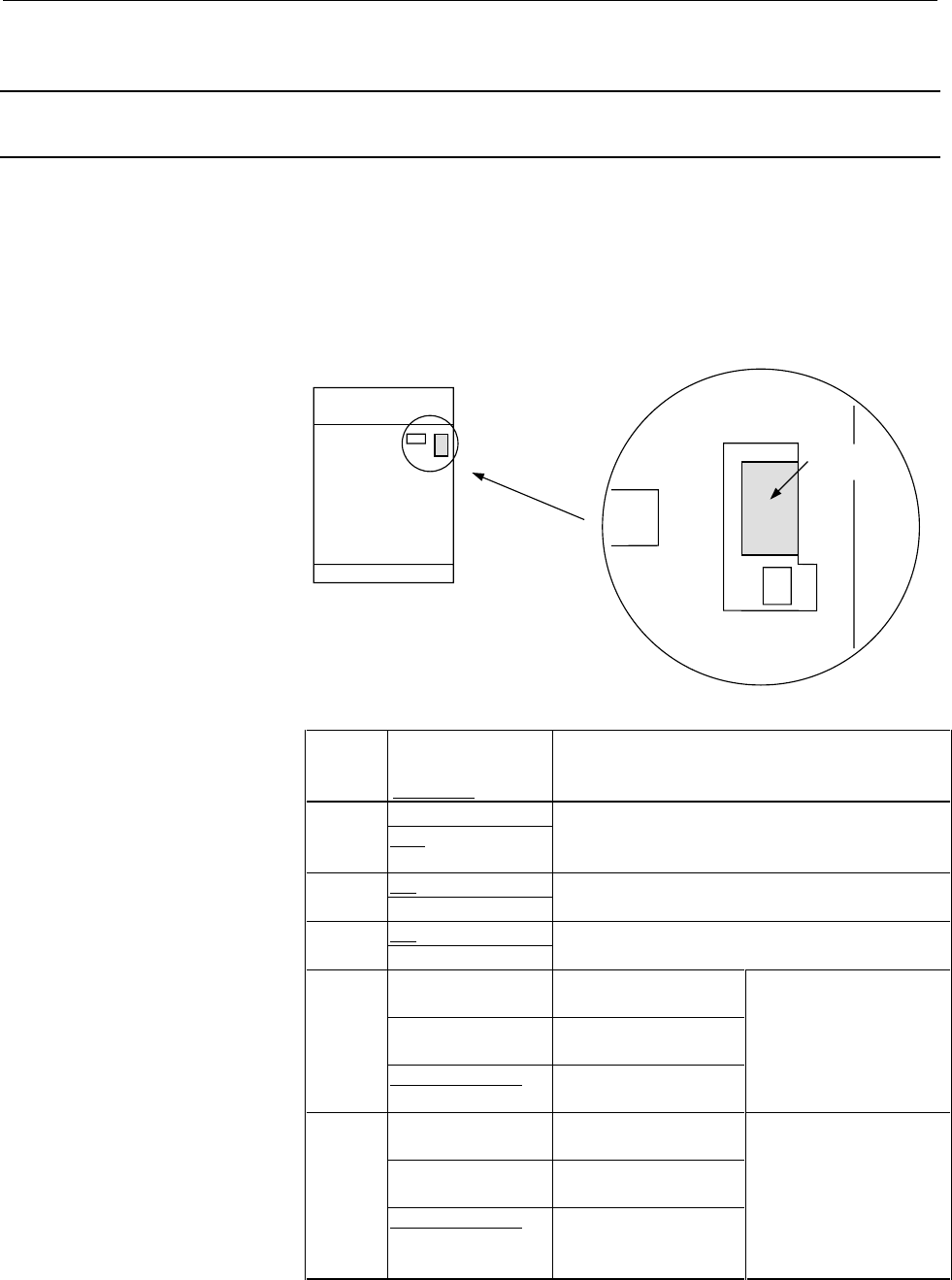

Location of the DIP switch

DIP switch

DIP

switch

Switch setting

(factory-set to the

underlined position)

Description

ONS1

OFF

If two SPMs are connected to one serial interface

cable, S1 is set to ON in one SPM, and to OFF in

the other.

ONS2

OFF

If an analog filter is used at the load meter output,

S2 is set to ON. If not, it is set to OFF.

ONS3

OFF

If an analog filter is used at the speedometer

output, S3 is set to ON. If not, it is set to OFF.

S4:ON, S5:OFF Reference switch of

NPN type (pull up)

S4:OFF, S5:OFF Reference switch of

PNP type (pull down)

S4:OFF, S5:OFF The external reference

signal receive function.

Reference switch

(external reference signal

receive function) setting

for the main spindle

S6:ON, S7:OFF Reference switch of

NPN type (pull up)

S6:OFF, S7:OFF Reference switch of

PNP type (pull down)

S6:OFF, S7:OFF The external reference

signal receive function

is not used.

Reference switch

(external reference signal

receive function) setting

for the sub-spindle
