1. AC SERVO MOTOR

B-65165E/02 MOTOR MAINTENANCE MAINTENANCE

- 221 -

(e) Set a new pulse coder and new Oldham’s coupling in the

motor. Although the mounting orientation is not specified in

particular, it is recommended that the pulse coder be set with

the same orientation as before the replacement. This is

because of the convenience of cabling. Place the Oldham’s

coupling with the correct orientation, and engage the teeth.

(f) Fasten the pulse coder with the four M4 hexagonal socket

head bolts.

(g) Replace the packing on the motor cover mounting surface.

Reusing old packing cannot provide sufficient sealing

performance. Whenever taking off the motor cover, be sure

to replace the packing.

(h) Install the connector in the cover in the reverse order of step

(a). Keying is provided for the connector insulator (the

insulating material around the terminals). So, perform

keying (phase) alignment when installing the connector.

(i) Connect the lead wires of the thermal switch. Peel off about

1 cm of the jacket from the cut end of each motor lead wire,

and tie the wire to the terminal of the pulse coder. Use of a

crimp terminal is recommended for connection. (In case of

an emergency, insulate both connection portions with

insulating tape.)

(j) Install the motor cover. Be careful not to catch the lead wires

of the pulse coder. After installing the motor cover, bolt the

cover.

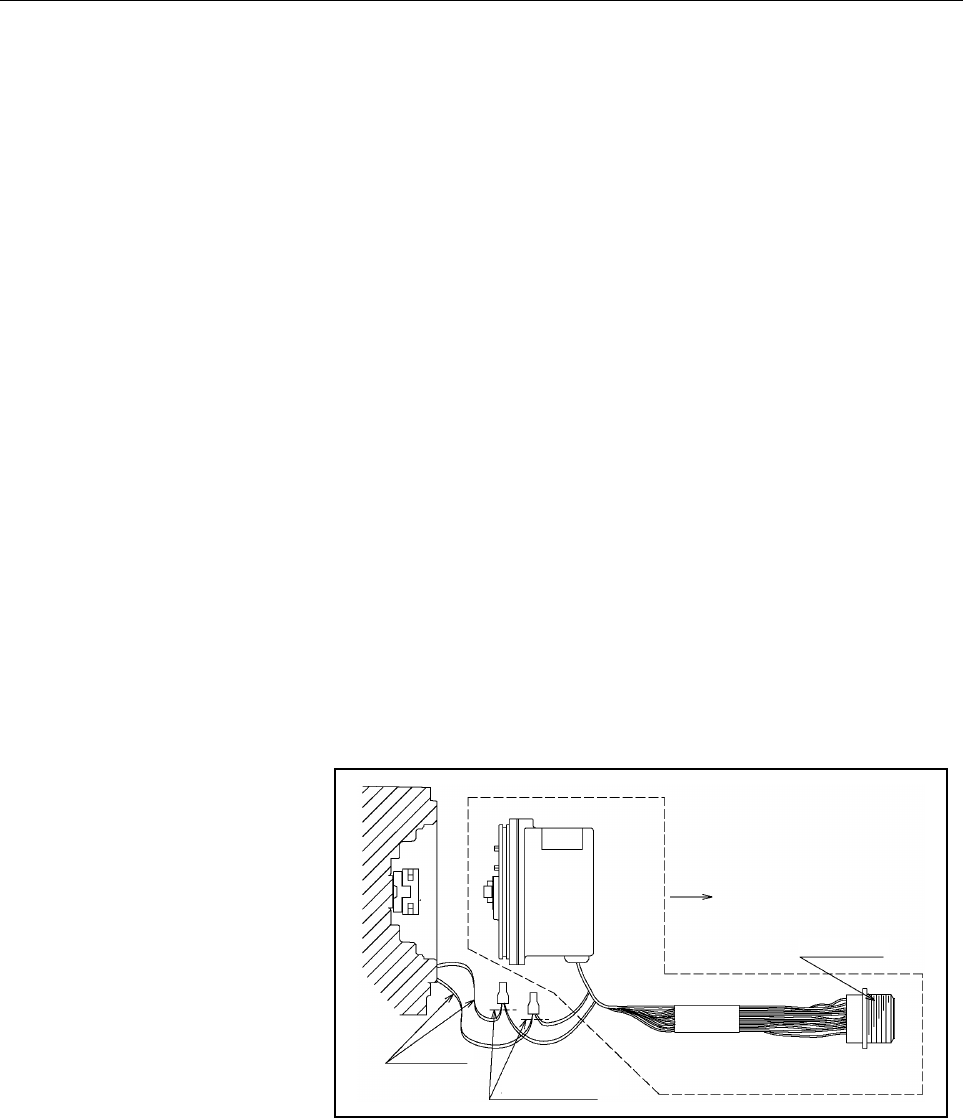

Cannon connector

Thermal wire

Cut the wire at the root of

the crimp terminal.
