Servo Motor Alpha Series Maintenance manual Page 93

Maintenance manual
4. CONFIRMATION OF
B-65165E/02 START-UP PROCEDURE THE OPERATION
- 63 -

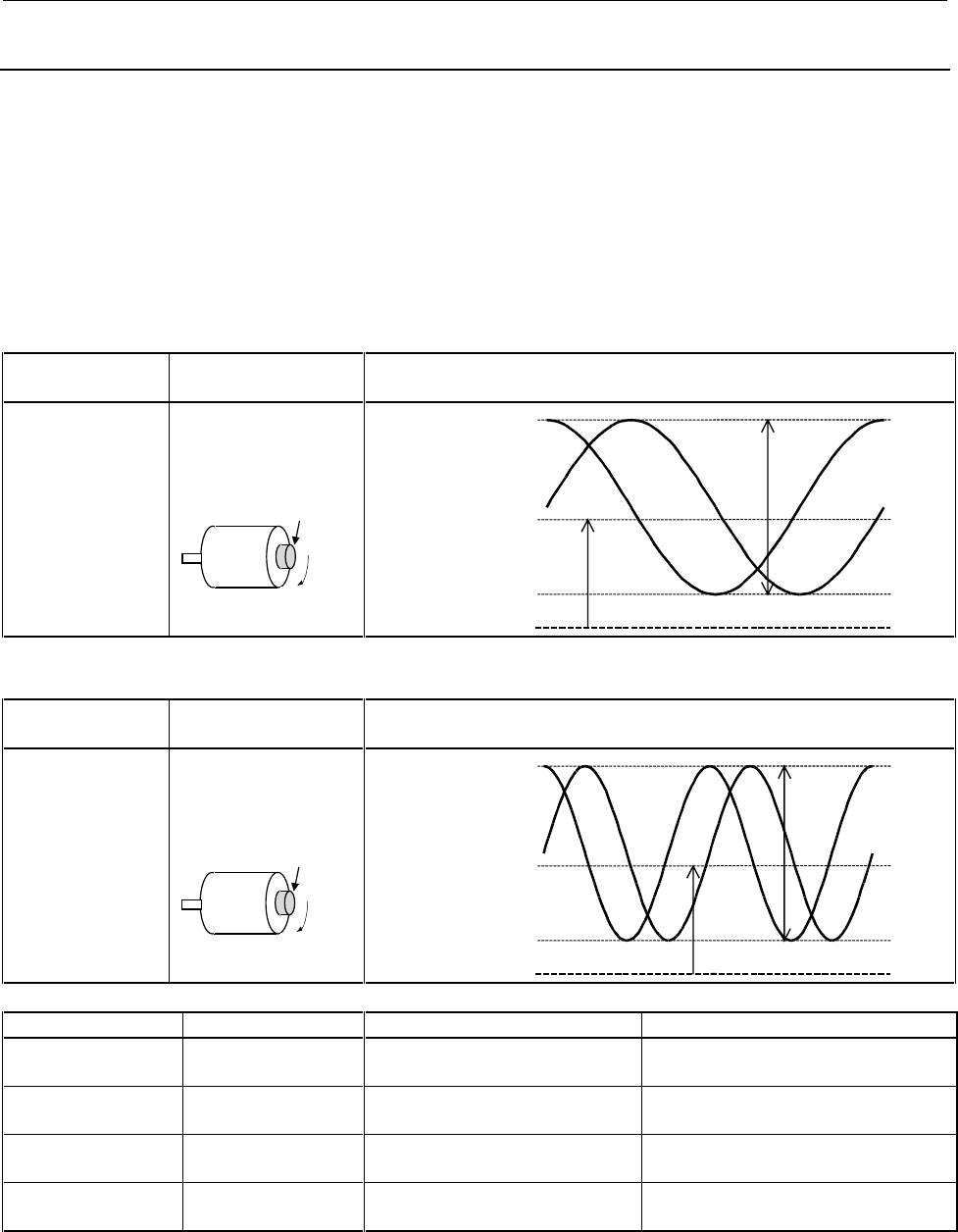

4.3.4.4 High-resolution magnetic pulse coder
After mounting a high-resolution magnetic pulse coder on the machine,
check waveforms. If a measurement value exceeds the specified range,
adjustment is required.
After mounting the sensor, you should check waveforms before
installing components such as a pulley, drawbar, and brake to make
adjustment easier.
(1) Adjusting check pins on the preamplifier
Signal on the low-resolution side 128 to 384 λ
Measurement
location
Measurement
condition
Sample waveform
Check pins A3 and
B3 on the
preamplifier
The speed must be 500
min
-1
or less.
Rotation direction: CW
Detection gear
Motor
CW
A3
B3
Vpp
Voffs
0 V
Waveforms of phase
A and phase B
Signal on the high-resolution side 1000 to 3000 λ
Measurement
location
Measurement
condition
Sample waveform
Check pins A1 and
B1 on the
preamplifier
The speed must be 500
min
-1
or less.
Rotation direction: CW
Detection gear
Motor
CW
A1
B1
Vpp2
Voffs2
0 V
Waveforms of phase
A and phase B
Measurement item Specification Measurement method Adjustment method
Vpp 0.36 to 0.50 Vp-p Adjust potentiometers A3G and B3G
on the preamplifier.
Vpp2 0.80 to 1.0 Vp-p Adjust potentiometers A1G and B1G
on the preamplifier.
Voffs 2.5 V ±50 mV Use the DC range of a digital
voltmeter.
Adjust potentiometers A3O and B3O
on the preamplifier.
Voffs2 2.5 V ±10 mV Use the DC range of a digital
voltmeter.
Adjust potentiometers A1O and B1O
on the preamplifier.
