Servo Motor Alpha Series Maintenance manual Page 221

Maintenance manual

Page of 284

/ 284

B-65165E/02 TROUBLESHOOTING

- 193 -

4. HOW TO REPLACE THE FUSES

AND PRINTED CIRCUIT BOARDS

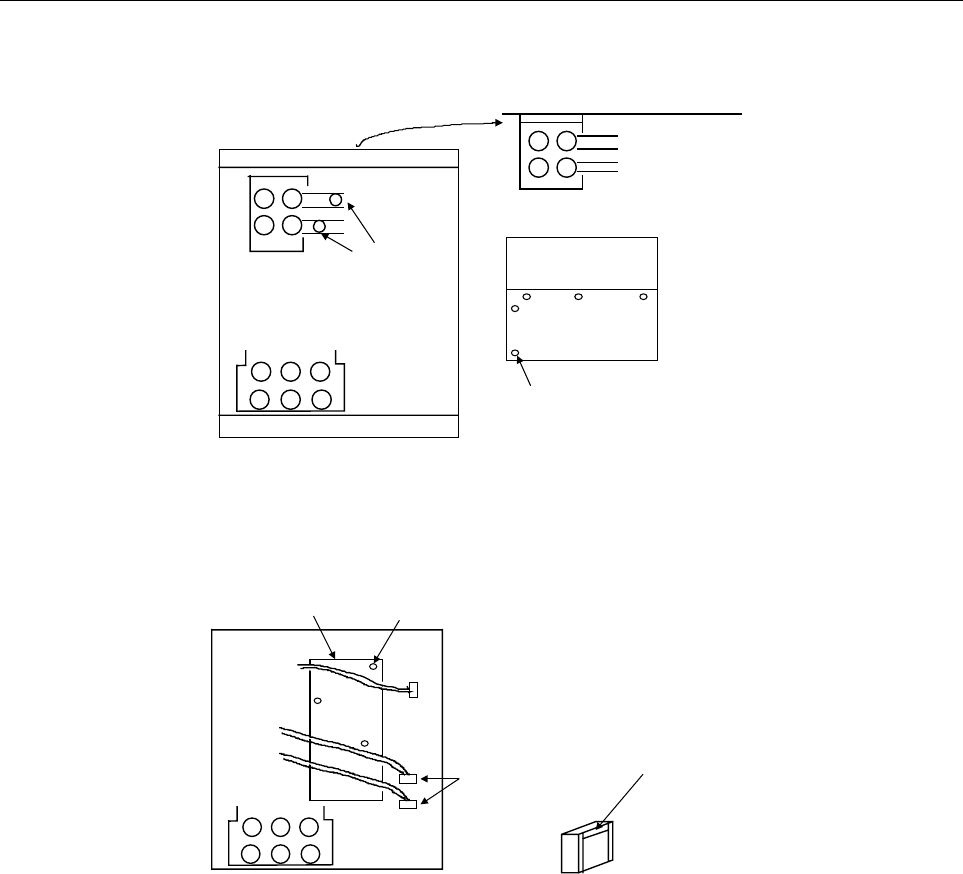

Remove the top plate.

Heat sink

Top plate

Screw (2 × M5)

Screw (5 × M4)

<1> Remove the screws (2

M5)

from the DC link jumper.

<2> Remove the screws (5 × M4)

from the top plate.

<3> Remove the top plate. (The top

plate comes off together with

the terminal block TB1.)

Remove the driver printed circuit board.

Carefully insert the tip of a screwdriver

and pull out the cable. (Be careful not

to force the screwdriver into the

connector; otherwise, the claw may

break.)

<1> From the two connectors,

detach the cables of the current

sensor.

<2> Remove the screws (3

M4)

from the driver printed circuit

board.

<3> Pull up the driver printed circuit

board to remove it.

Connector × 2

Screw

Driver printed circuit board
