TROUBLESHOOTING B-65165E/02

- 194 -

4. HOW TO REPLACE THE FUSES

AND PRINTED CIRCUIT BOARDS

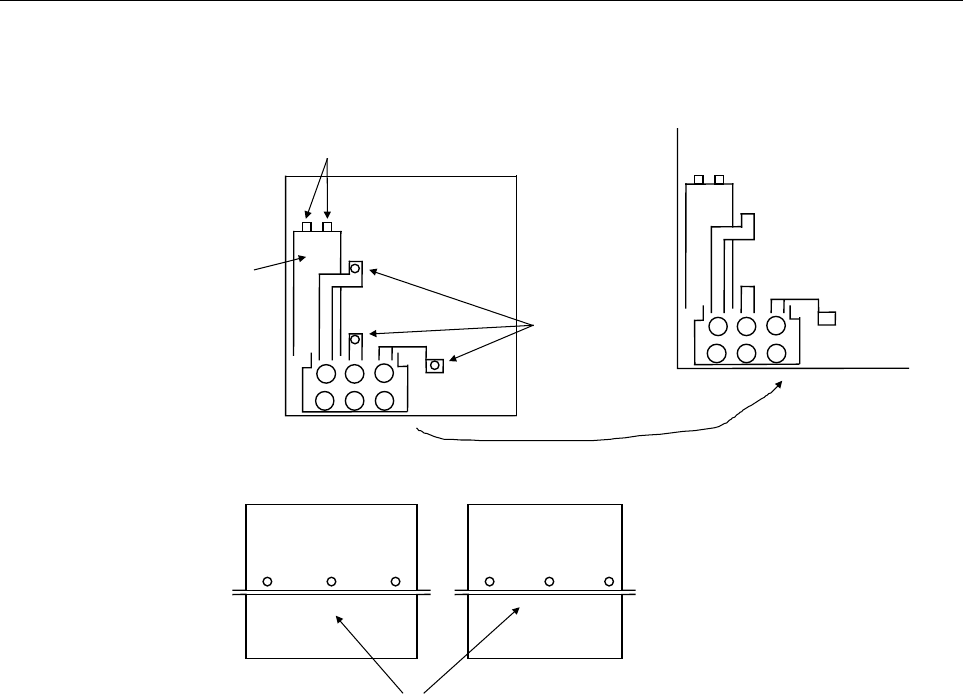

Remove the left side and bottom plates.

<1> Locate the jumpers that connect the

terminal block TB2 and the wiring

board. Remove the screws (3 × M6)

holding the jumpers to the wiring

board.

<2> Remove the screws (2

M5) that

connect the capacitor and jumpers.

<3> Remove the screws (6

M4) from

the left and bottom plates.

<4> Remove the left and bottom plates.

(These plates come off together with

the electrolytic capacitor and

terminal block TB2.)

Electrolytic

capacitor

Wiring board

Screw (2

M5)

Screw (3 × M6)

Screw (6 × M4)

Left side plate Bottom plate
