B–63173EN/03
6. CONNECTION OF I/O UNITS TO
MACHINE INTERFACE
129

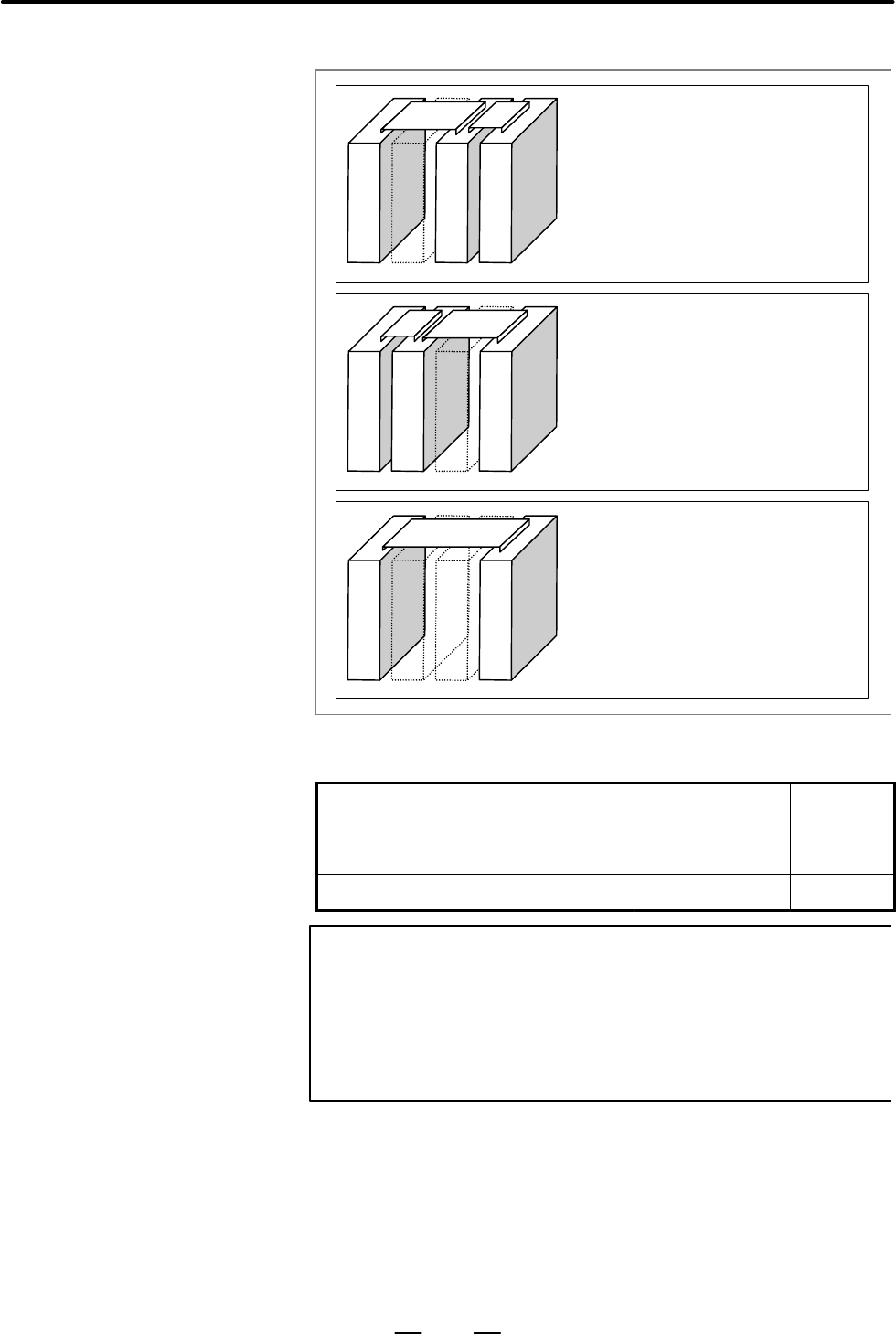

Examples
Basic unit
Basic unit 1
Basic unit 2
Basic unit 3
Basic unit
Basic unit 1
Basic unit 2
Basic unit 3
Basic unit
Basic unit 1
Basic unit 2
Basic unit 3
To omit extended unit 1:
On extended unit 2, set the rotary switch to
position 1. On extended unit 3, the rotary
switch need not be changed from position 0.
To omit extended unit 2:
On extended unit 3, set the rotary switch to
position 1. On extended unit 1, the rotary
switch need not be changed from position 0.
To omit extended units 1 and 2:
On extended unit 3, set the rotary switch to
position 2.
This is a new function. It will be added according to the unit type, as
follows:
Extended B (DI/DO=24/16, manual pulse
generator I/F not attached)
A03B–0815–C003 June 1998
Extended C (DO=16, 2A output) A03B–0815–C004 August 1998
Extended D (analog input) A03B–0815–C005 August 1998
NOTE
Extended A unit will be provided with the rotary switch due
to the changes in the other units. Because, however, the
extended A unit is always mounted in extended unit 1
position, the setting of the rotary switch need not be
changed.
