8. CONNECTION TO SETTING AND DISPLAY UNIT
273
NOTE
1 The detachable LCD/MDI itself and the cable connection
portions of the detachable LCD/MDI are not water proof.
Therefore be careful not to expose these parts directly to
contaminants.
2 Be careful not to expose the cable connection portions of
the relay panel directly to contaminants regardless of
whether cables are connected to the relay panel or not.
3 When using the detachable LCD/MDI, keep it away from
noise or electromagnetic sources.
4 Bumping the detachable LCD/MDI against something can
deform the detachable LCD/MDI. So, handle the
detachable LCD/MDI carefully.

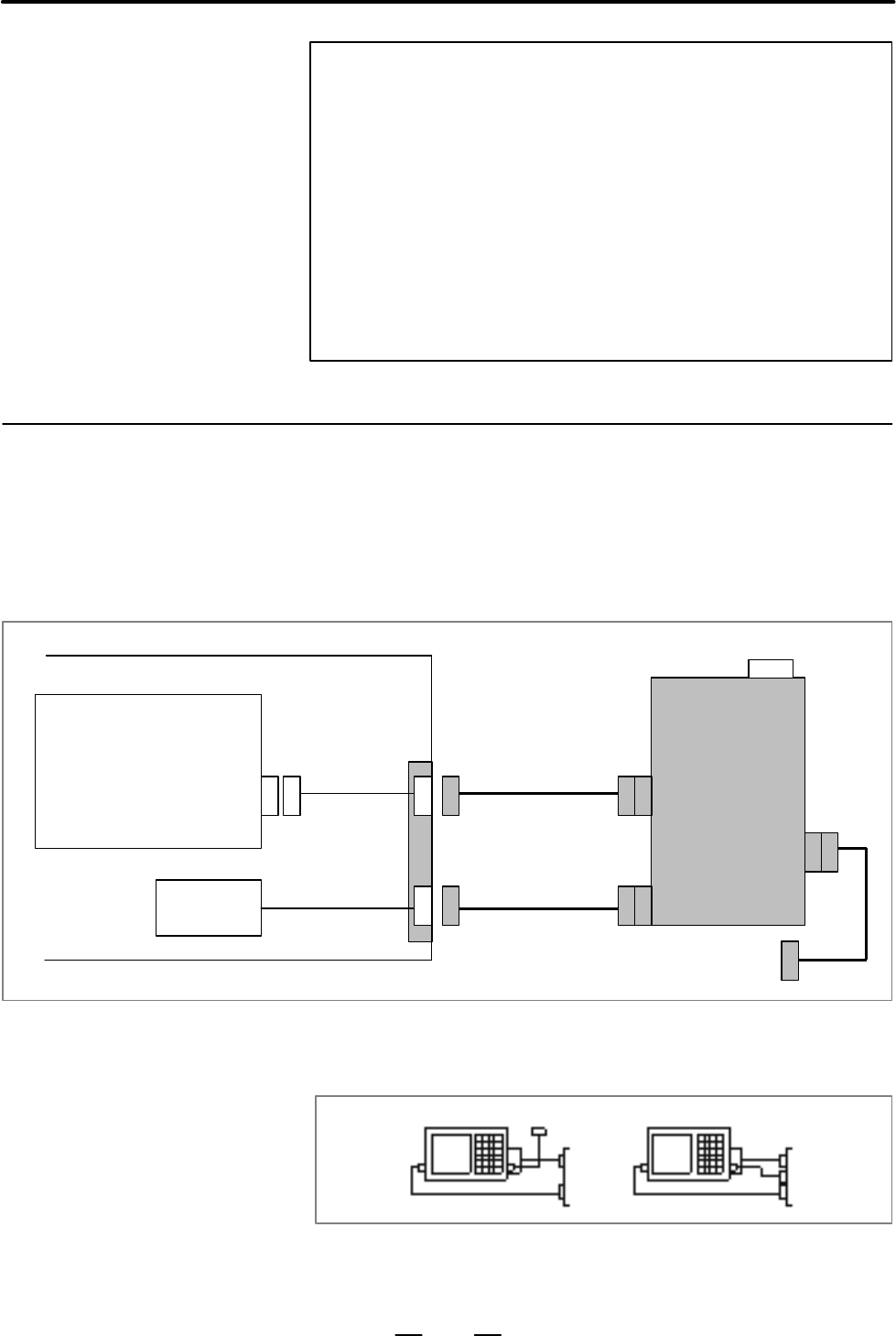

The detachable LCD/MDI is connected to the Power Mate i as explained
below. (This method is also used to connect the detachable LCD/MDI to
an i series CNC that supports the display link.)
D Attach cables J182 and J169 to the detachable LCD/MDI in advance.
D In the cabinet, CNC connection cable J183 and power cable J168 are
assumed to have been run to the relay panel. The relay panel has
connectors CA72 and CPA.
Power Mate i
AC100V
to 240V
J183
J168
CA72
CPA
J182
J169
Selection switch SW1
CA61
CA63
CA62
J171
CA73
Detachable
LCD/MDI
Cabinet
Display link interface
JD41
Relay
panel
Display link
Power
(1)Set selection switch SW1 on the detachable LCD/MDI to B. The
following label is stuck to selection switch SW1:
SW1
B
A
(2)Connect display link cable J182 to connector CA72 on the relay panel.
(3)Connect power cable J169 to connector CPA on the relay panel.
8.6.3
Connection Using the
Display Link
Connection method
