Power Mate i - Model D/H Connection manual (Hardware) Page 453

Connection manual (Hardware)
B–63173EN/03
A. EXTERNAL DIMENSIONS OF EACH UNITAPPENDIX
441

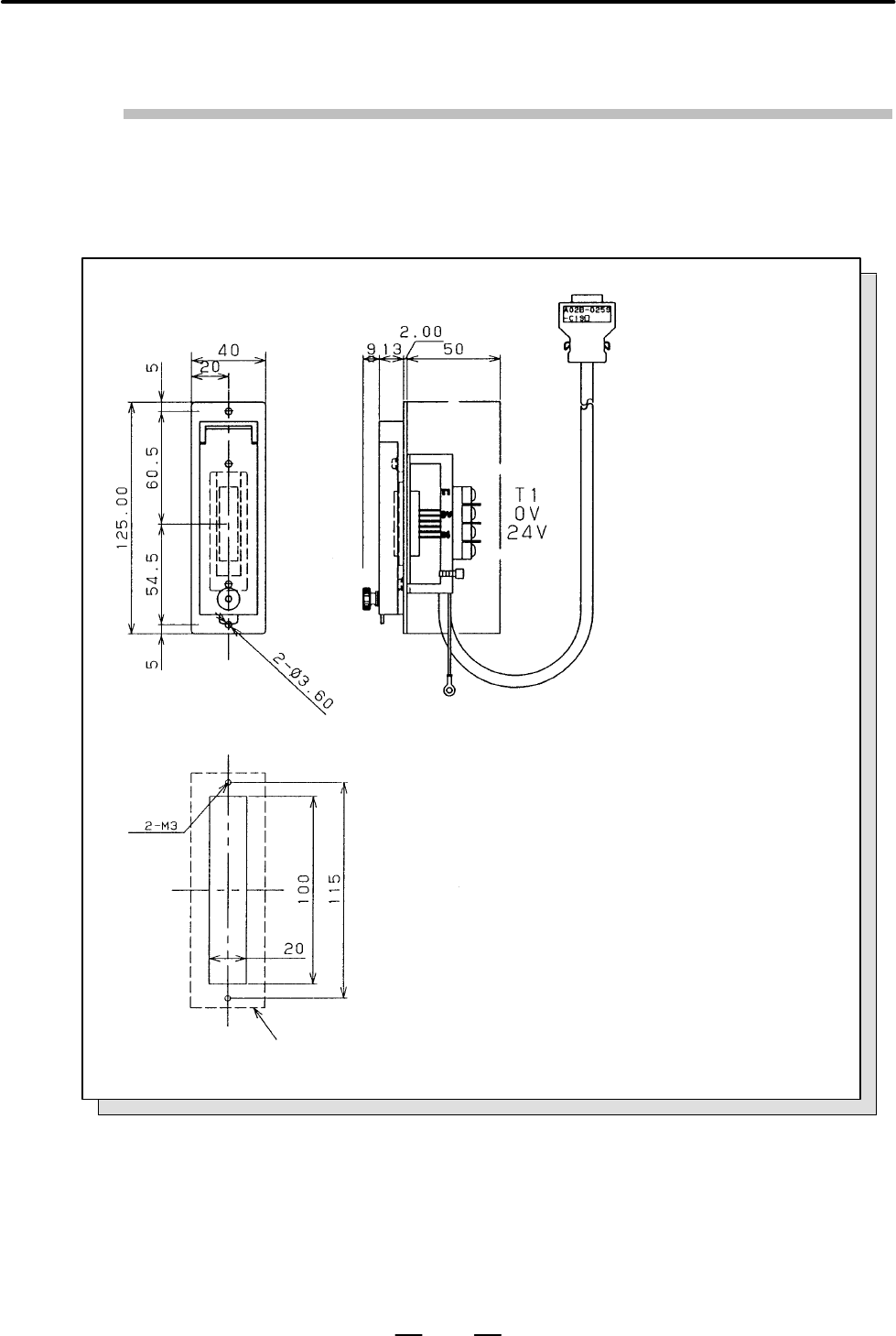

Fig. 18
Punch panel (for 1 channel)
Specification : A02B–0259–C191 (Cable length: 1 m)
A02B–0259–C192 (Cable length: 2 m)
A02B–0259–C193 (Cable length: 5 m)
Mounting hole drilling diagram
Ground pin for the frame ground (M4, length: 200 mm)
A ground pin for the frame ground must be provided near
the punch panel.
Painting is masked around the edge of the sheet metal by 8 mm.
As an EMC measure, when connecting the sheet metal to the
cabinet electrically, painting must also be masked on the cabinet.
Unit : mm
Install the unit
from the outside
of the cabinet.
