AC Servo Motor Beta is, AC Spindle Motor Beta i, Servo Amplifier Beta i Maintenance manual Page 111

Maintenance manual
B-65325EN/01 START-UP PROCEDURE FOR βi SVPM 4.CONFIRMATION OF THE OPERATION
- 81 -

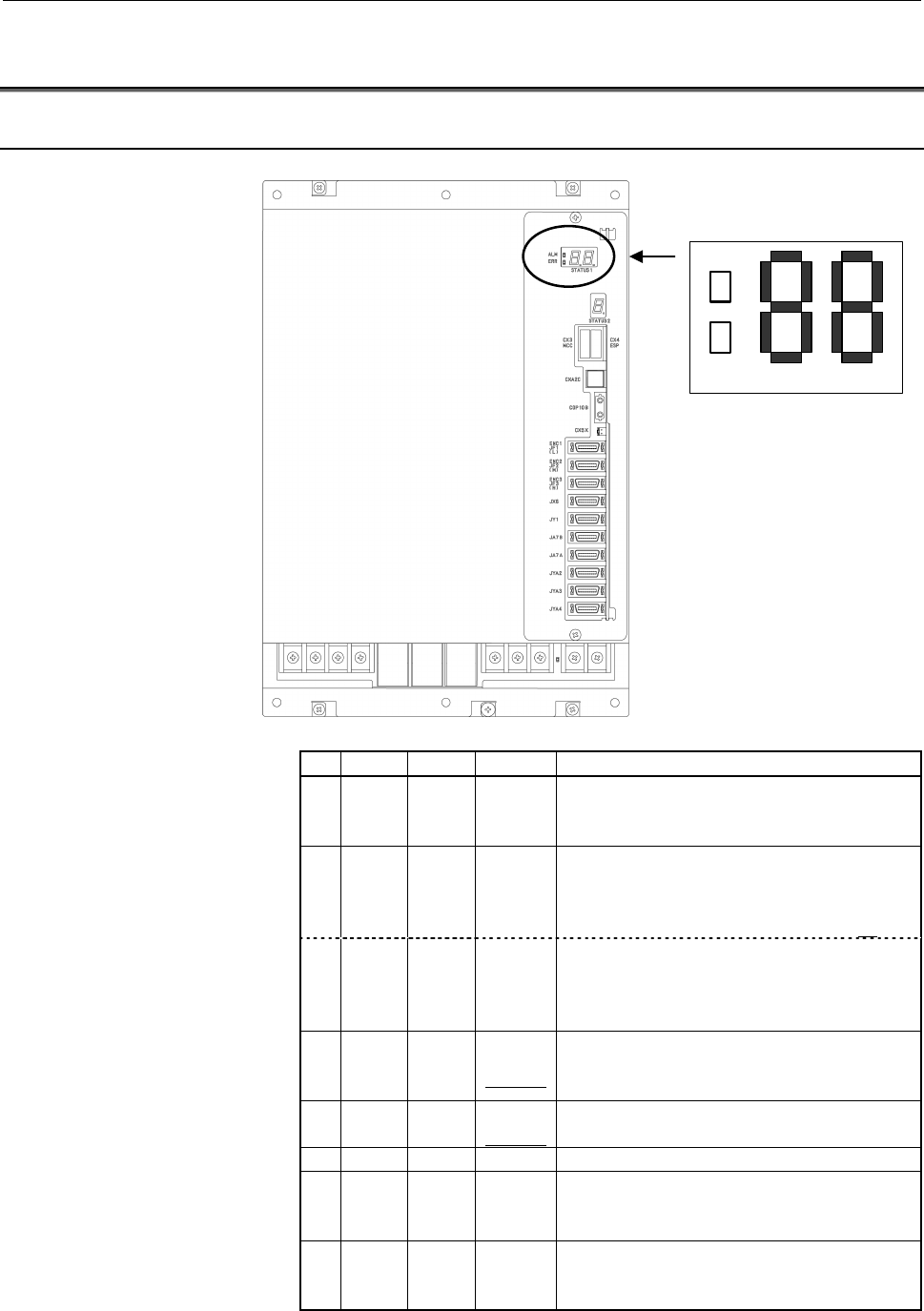

4.3 SVPM SPINDLE UNIT
4.3.1 STATUS 1 Indicator
A
LM
ERR
STATUS
1
No. ALM ERR STATUS Description
1
No
indication
The control power supply has not been
switched on.
The power supply circuit is defective.
2 50
For about 1.0 s after the control power supply is
switched on, the lower two digits of the spindle
software series No. are indicated.
Example) 50: Software series No. 9D50
3 04
The spindle software edition number is
displayed for about 1.0 s. 01, 02, 03, and so on
correspond to A, B, C, and so on, respectively.
Example) 04: software edition D
4
--
Blinking
The CNC has not been switched on.
The machine is waiting for serial
communication and parameter loading to end.
5
--
Lighting
Parameter loading has ended.
The motor is not supplied with power.
6 00 The motor is supplied with power.
7 Lighting
01 or
above is
displayed.
Alarm state
The SVPM is not operable.
See Chapter 1 of Part IV.
8 Lighting
01 or
above is
displayed.
Error state
Incorrect parameter setting or improper
sequence.
