Maintenance manual
2.CONFIGURATIONS START-UP PROCEDURE FOR βi SVM B-65325EN/01
- 6 -

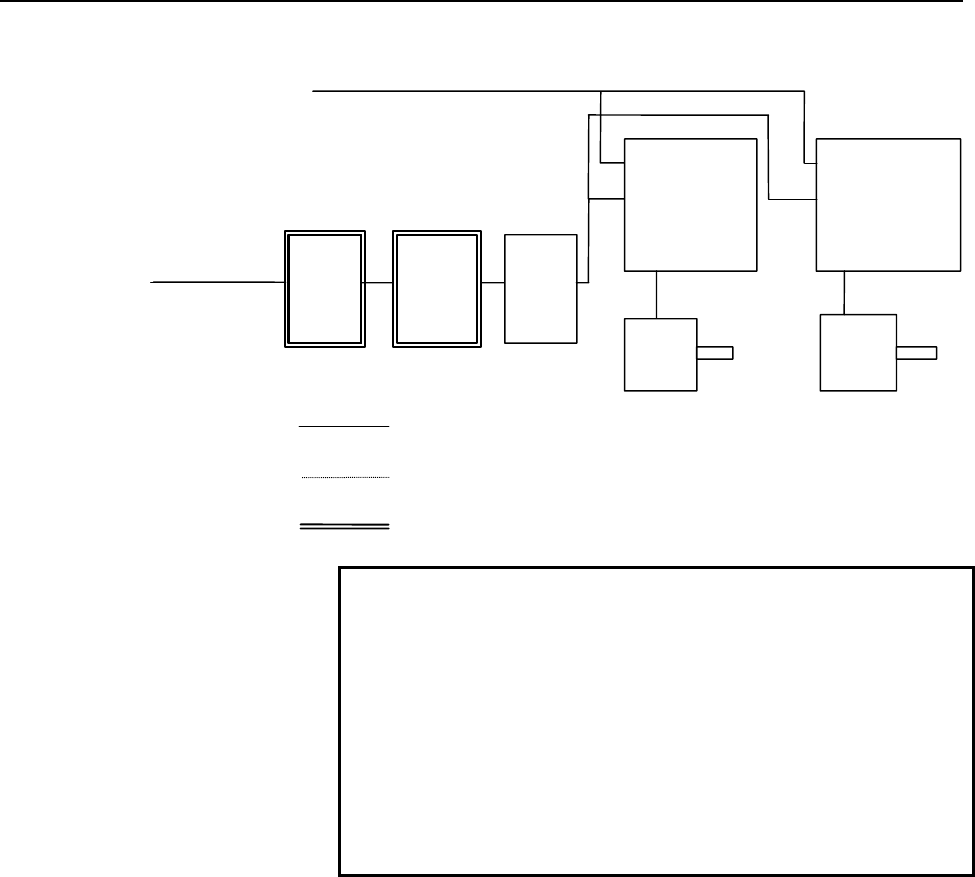

Constituent (example)
Magnetic
contactor
Circuit
breker
AC line
filter
βi series
SVM
βi series
SVM
Servo
motor
Servo
motor
Control power
supply
24VDC ± 10%
3φ
200 to 240 VAC
or
1φ
220 to 240 VAC
(4A or 20A models
only)
: Basic
: Option
: Units prepared by the machine tool builder
NOTE
1 A circuit breakers , magnetic contactor, and AC line
filter are always required.
2 To protect the unit from surge currents caused by
lightning, connect surge absorbers between lines,
and between the lines and ground, at the power inlet
of the power magnetics cabinet.
3 The AC line filter is different from the AC reactor,
which is designed for another purpose. Substituting
one for the other or using one as both the filter and
reactor is not allowed.
