Maintenance manual
3.TROUBLESHOOTING AND ACTION TROUBLESHOOTING FOR βi SVPM B-65325EN/01
- 154 -
3.4.12 Alarm Code 27
The signal of the α position coder is disconnected.
(1) If this alarm is issued when the motor is deactivated
(a) The setting of a parameter is incorrect.
Referring to "FANUC AC SPINDLE MOTOR αi/βi series
Parameter Manual (B-65280EN)," check the parameter for
sensor setting.
(b) The cable is disconnected.
If the connection of the feedback cable is correct, replace the
cable.
(c) The SVPM is faulty.
Replace the SVPM or SVPM control printed circuit board.
(2) If this alarm is issued when the cable is moved
(a) The connector has a bad contact, or the cable is
disconnected.
The conductor may be broken. Replace the cable. If coolant
has penetrated into the connector, clean the connector.
(3) If this alarm is issued when the motor rotates

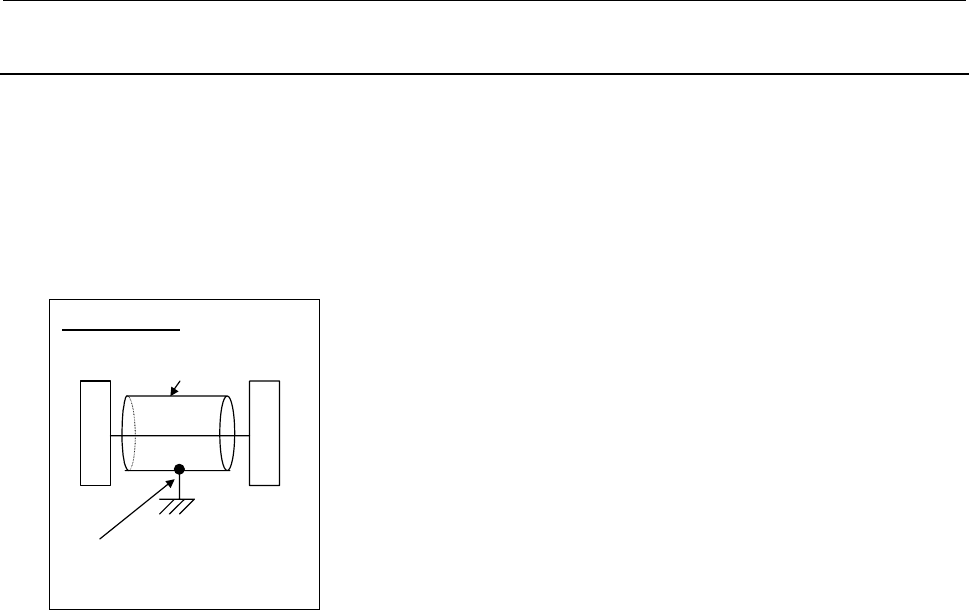

(a) The shielding of the cable between the sensor and the SVPM
is faulty.
Check the shielding of the cable.
(b) The signal cable is bundled with the servo motor and spindle
motor power lead.
If the cable between the sensor and the SVPM is bundled
with the servo motor and spindle motor power lead, separate
them from each other.
S
V
P
M
Sensor
Connected to the frame
ground via a cable clamp.
Shielded cable
α
position coder
