Maintenance manual
EDIT.
01
04.04.02
DATE
Suzuki
DESCRIPTION
DESIG.
1st. Edition
TITLE
DRAW.
No.

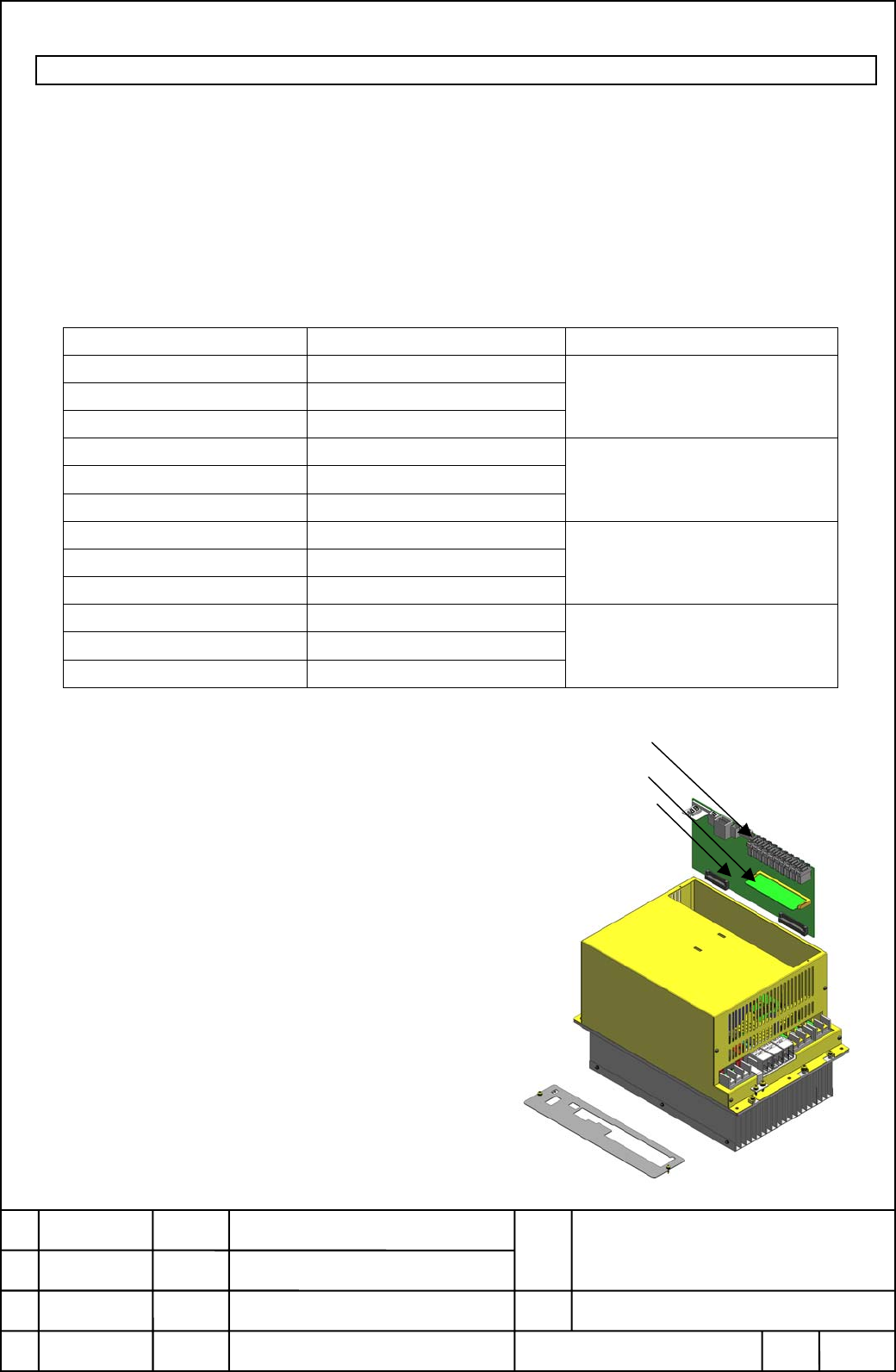

Ordering number of PCBs for
maintenance of βi Series SVPM
B-65325EN/01-01
FANUC LTD
SHEET
Ordering number of control PCBs for maintenance of βi
Series SVPM
1. Outline
We inform the ordering number of control PCBs for maintenance of βi
Series SVPM.
SVPM (all 12 models) is divided into 4 kinds in total, depending on corresponding main axis
sensor (type A or type C) and number of servo axes (2 or 3). This depends on the combination
with the control PCB, module PCB, and the control software written in flash ROM on the
control PCB. So we prepare four ordering numbers at this each combination.
２．Ordering number
Amplifier model ordering number
A06B-6134-H201#A βSVPM 2-5.5i type A
A06B-6134-H202#A βSVPM 2-11i type A
A06B-6134-H203#A βSVPM 2-15i type A
A06B-6134-K601
A06B-6134-H201#C βSVPM 2-5.5i type C
A06B-6134-H202#C βSVPM 2-11i type C
A06B-6134-H203#C βSVPM 2-15i type C
A06B-6134-K603
A06B-6134-H301#A βSVPM 3-5.5i type A
A06B-6134-H302#A βSVPM 3-11i type A
A06B-6134-H303#A βSVPM 3-15i type A
A06B-6134-K604
A06B-6134-H301#C βSVPM 3-5.5i type C
A06B-6134-H302#C βSVPM 3-11i type C
A06B-6134-H303#C βSVPM 3-15i type C
A06B-6134-K606
３．Remark
Each ordering number includes next parts.
A06B-6134-K601
Control PCB only : A20B-2101-0012
Module PCB : A20B-2902-0670
Software (9D50) : A06B-6111-H550
A06B-6134-K603
Control PCB only : A20B-2101-0012
Module PCB : A20B-2902-0672
Software (9D60) : A06B-6116-H560
A06B-6134-K604
Control PCB only : A20B-2101-0013
Module PCB : A20B-2902-0670
Software (9D50) : A06B-6111-H550
A06B-6134-K606
Control PCB only : A20B-2101-0013
Module PCB : A20B-2902-0672
Software (9D60) : A06B-6116-H560
1/1
Control PCB only
Module PCB
Software
(Flash ROM)
