B-65325EN/01 START-UP PROCEDURE FOR βi SVPM 5.PERIODIC MAINTENANCE OF SVPM
- 115 -
WARNING
1 When using the built-in batteries
(A06B-6073-K001), do not connect them to the
BATL (B3) of connector CXA2C.
The output voltages from different batteries may be
short-circuited, resulting in the batteries becoming
very hot.
2 Do not connect more than one battery to the same
BATL (B3) line. If the output voltage is different
between the batteries, they may be short-circuited,
resulting in the batteries becoming very hot.
3 Install the battery with correct polarity. If the battery
is installed with incorrect polarity, it may overheat,
blow out, or catch fire.

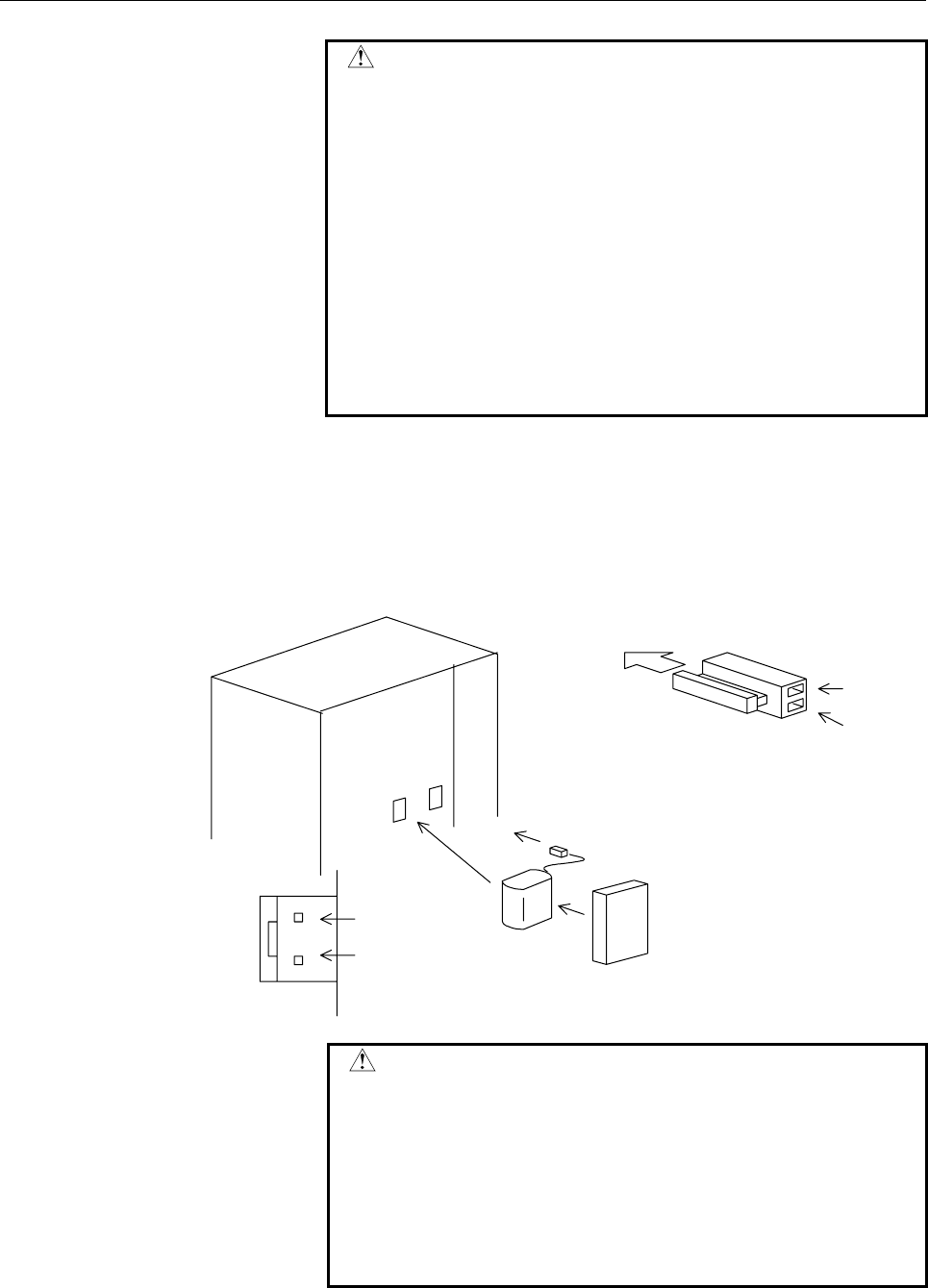

[Installation procedure for the battery]
(1) Remove the battery cover from the SVPM.
(2) Install the battery in the SVPM as shown in the figure below.
(3) Install the battery cover.
(4) Attach the battery connector to CX5X of the SVPM.
SVPM
CX5X
+6V
0V
Battery
Battery cover
Inserting direction
Red: +6 V
Black: 0 VConnector
Cable side
CAUTION
1 When the battery is installed in the SVPM from the
side from which the cable is drawn, the cable may
be stretched tight, which can lead to a poor contact
condition. Therefore, install the battery so that the
cable is not extended tightly.
2 Be careful when handling the connector. See
[Caution No. 2 for battery replacement] at the end of
this section for details.
