Maintenance manual
3.TROUBLESHOOTING AND ACTION TROUBLESHOOTING FOR βi SVPM B-65325EN/01
- 138 -

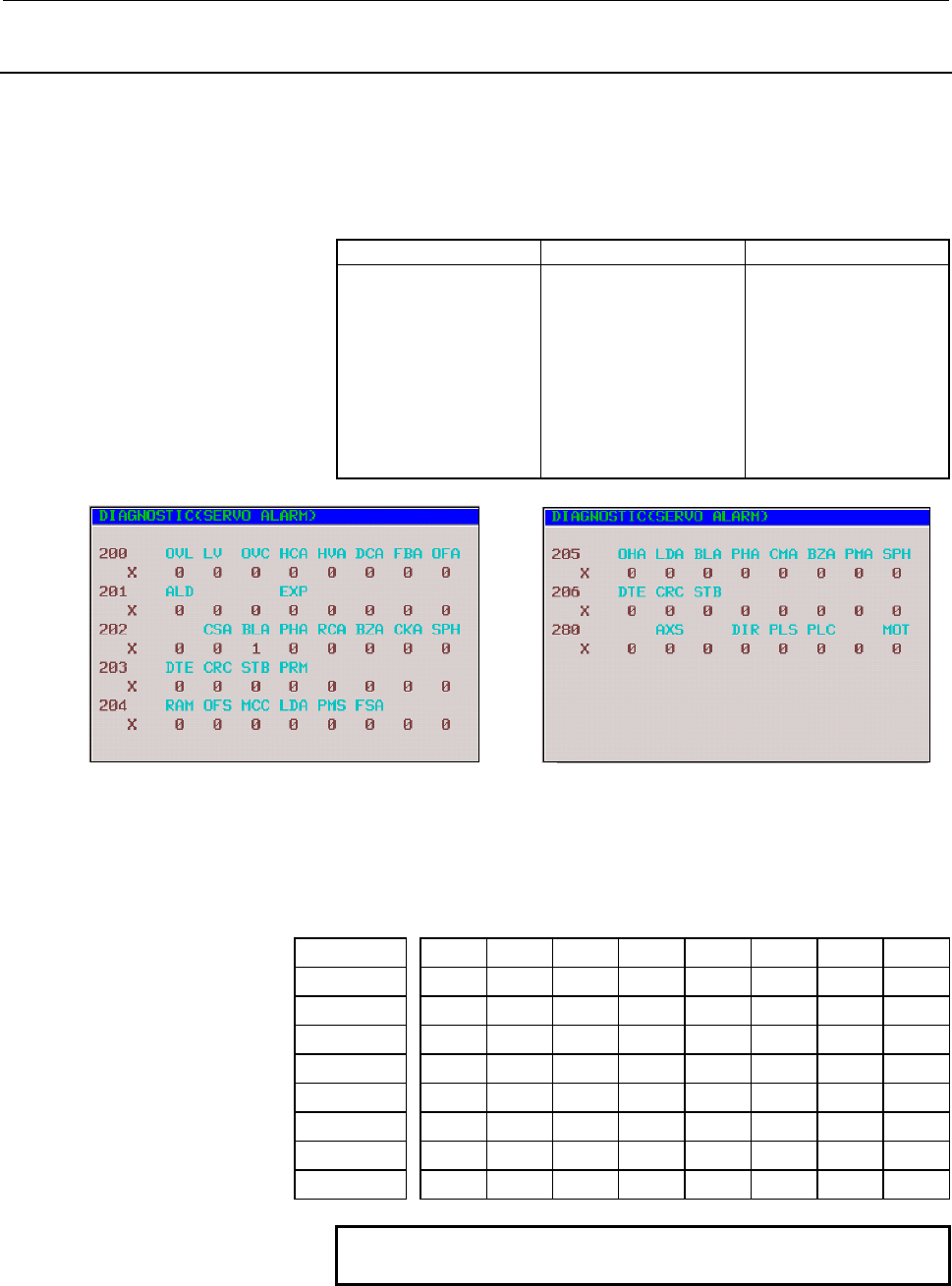

3.3.2 Diagnosis Screen
The alarm items of the servo adjustment screen correspond to the
diagnosis screen numbers indicated in the table below.
Table 3.3.2 Correspondence between the servo adjustment screen and
diagnosis screen
Alarm No.
Series 15i Series 16i, 18i, 21i, 0i
<1> Alarm 1
<2> Alarm 2
<3> Alarm 3
<4> Alarm 4
<5> Alarm 5
<6> Alarm 6
<7> Alarm 7
<8> Alarm 8
<9> Alarm 9
No 3014 + 20(X-1)
3015 + 20(X-1)
3016 + 20(X-1)
3017 + 20(X-1)





No 200
201
202
203
204

205
206

Fig. 3.3.2 Diagnosis screen
The table below indicates the names of the alarm bits.
Table 3.3.2 List of alarm bit names
#7 #6 #5 #4 #3 #2 #1 #0
<1> Alarm 1 OVL LVA OVC HCA HVA DCA FBA OFA
<2> Alarm 2 ALD EXP
<3> Alarm 3 CSA BLA PHA RCA BZA CKA SPH
<4> Alarm 4 DTE CRC STB PRM
<5> Alarm 5 OFS MCC LDM PMS FAN DAL ABF
<6> Alarm 6 SFA
<7> Alarm 7 OHA LDA BLA PHA CMA BZA PMA SPH
<8> Alarm 8 DTE CRC STB SPD
<9> Alarm 9 FSD SVE IDW NCE IFE
NOTE
The empty fields do not represent alarm codes.
<1>
<2>
<3>
<4>
<5>
<7>
<8>
