Maintenance manual
B-65325EN/01 START-UP PROCEDURE FOR βi SVM 5.PERIODIC MAINTENANCE OF SERVO AMPLIFIER
- 25 -
⋅
⋅⋅

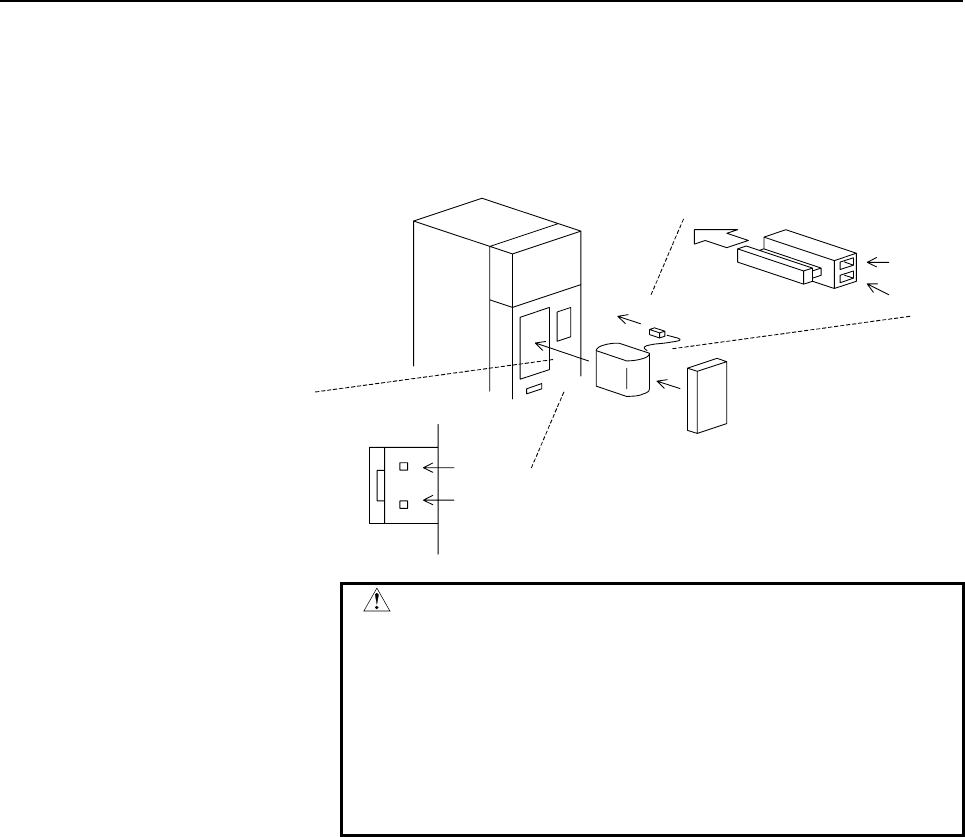

⋅ SVM1-40i, SVM1-80i
(1) Install the battery in the SVM.
(2) Install the battery cover.
(3) Attach the battery connector to CX5X of the SVM.
Battery
SVM
Battery cover
Inserting direction
Red: +6 V
Black: 0 V
CX5X
+6 V
0 V
Connector
Cable side
CAUTION
1 When the battery is installed in the SVM from the
side from which the cable is drawn, the cable may
be stretched tight, which can lead to a poor contact
condition. Therefore, install the battery so that the
cable is not extended tightly.
2 Be careful when handling the connector. See
[Caution No. 2 for battery replacement] at the end of
this section for details.
