Manual Guide M Operators manual Page 103

Operators manual
Manual Guide M Pocketing
GE Fanuc Automation S.A. - 102 -
GFKE-0046-EN/01
7. 2. 2. 4 Movements in Chamfering
13. Rapid in XY to start point.
14. Rapid in Z to the cutting point.
(is calculated by : End point Z , bottom removal,
chamfer removal, tool small diameter, chamfer
angle, tool out depth, clearance).
15. Move into the workpiece with cutting feed in XY,
following a circular path.
16. Cutting chamfer amount along the side figure.
17. Move away with cutting feed in XY from the
workpiece, following a circular path.
18. Rapid in Z up to the point
(end point Z + bottom removal + clearance).
7. 2. 2. 5 In case of Drilling Pre-Hole
1. Rapid in XY to start point.
2. Rapid in Z to point R.
3. Drilling with feed in Z direction until end point Z.
4. Rapid in Z up to the point R
(end point Z + bottom removal + clearance).
A specific drilling cycle can be selected by Soft-Key
in the field CYCLE SELECTION.

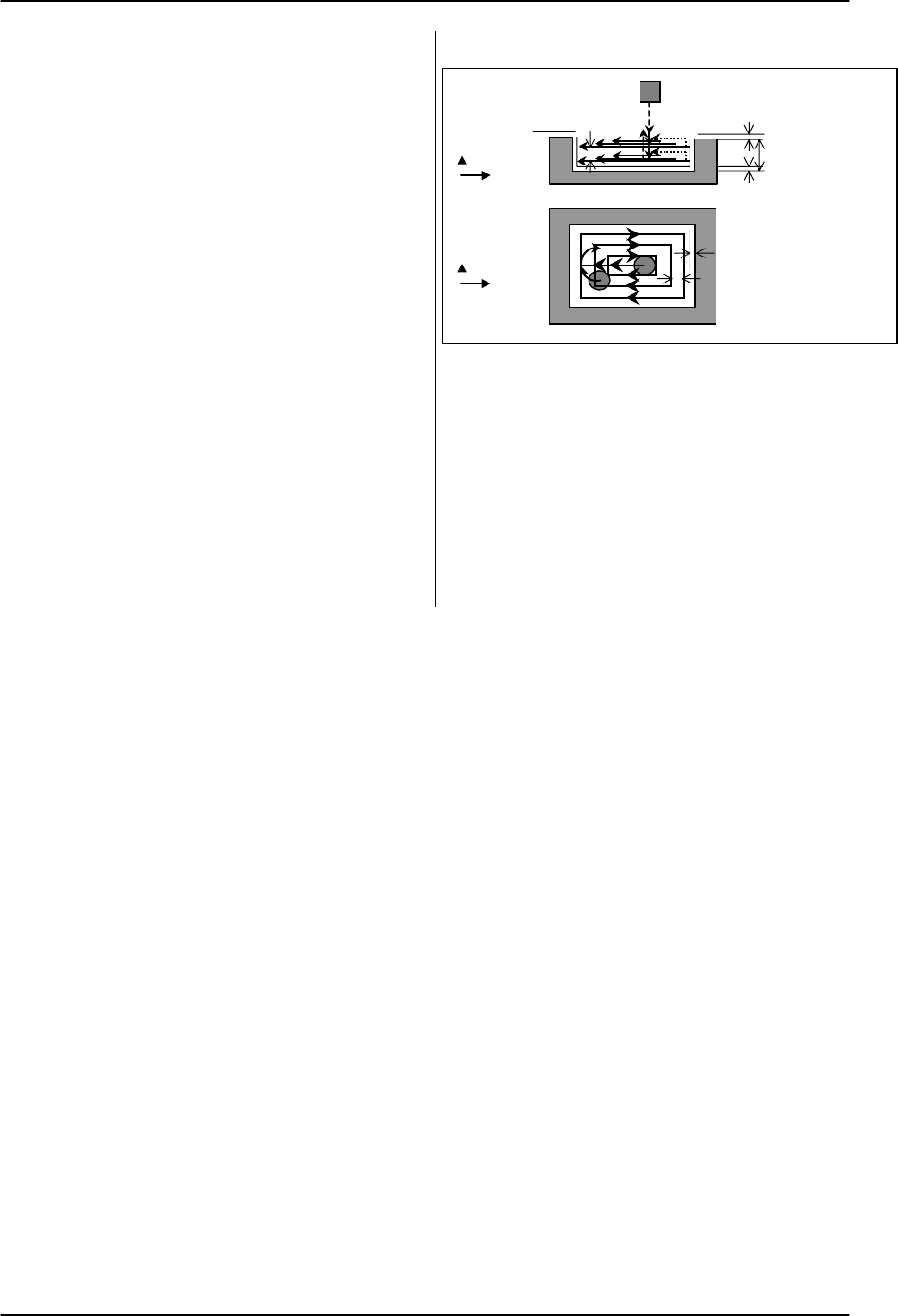

Movements in Chamfering
Clearance
Removal De
p
th
Bottom Finish
Cutting Width
Removal Pitch
Side Finish
Point R
X
X
Z
Y
