Manual Guide M Operators manual Page 9

Operators manual
Manual Guide M Basics
GE Fanuc Automation S.A. - 8 -
GFKE-0046-EN/01

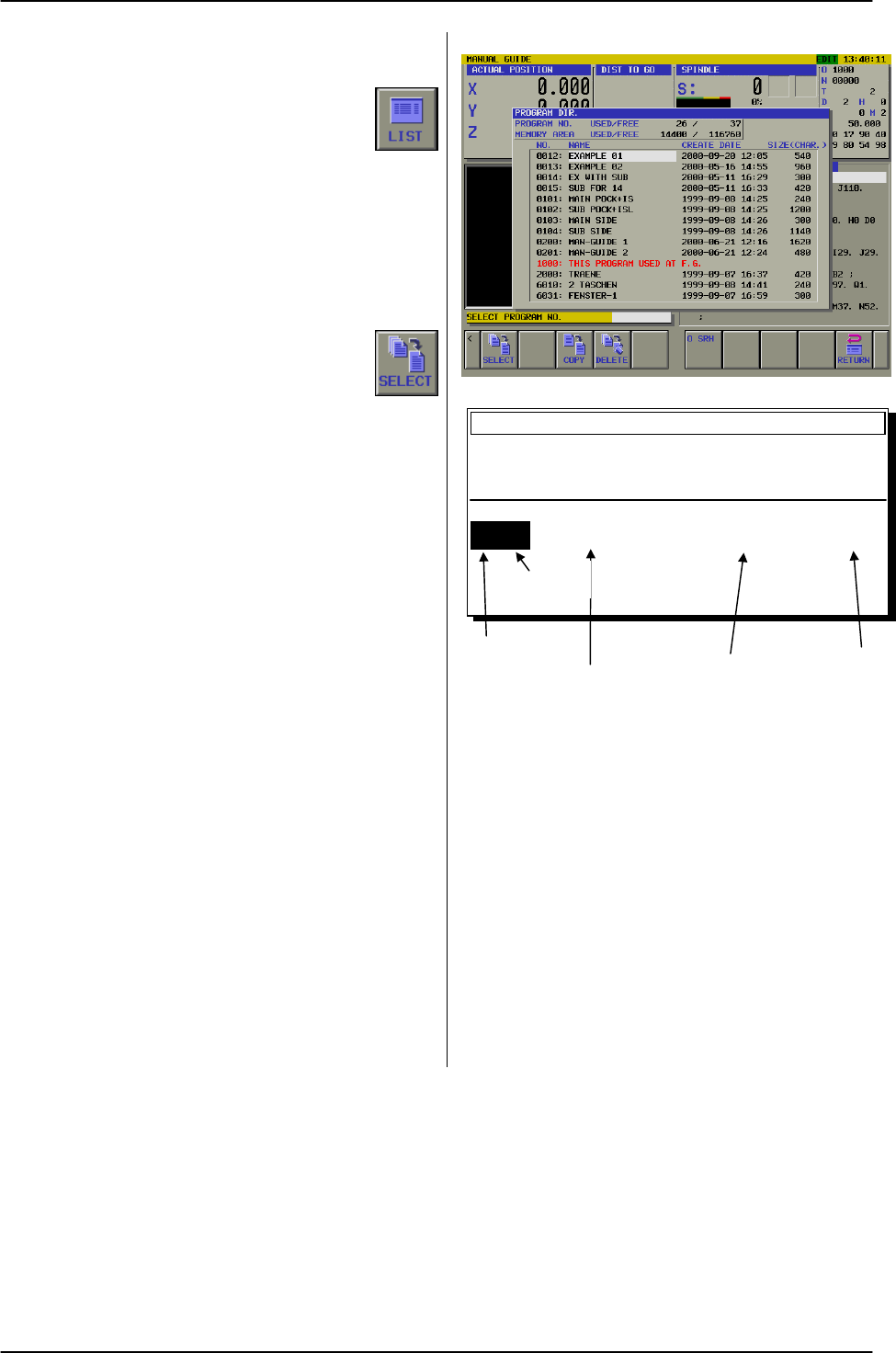

1. 4 Program Manipulation
Any program can be manipulated. Select
LIST Soft-Key, to display screen beside.
1. 4. 1 Create new Program
If a new program should be created, a new program
No. has to be input. Existing programs are displayed
in the pop-up window. 'Manual Guide M' can use any
program No. between 0 and 9999 (for digits).
1. 4. 2 Select existing program
Move the cursor on the Program Directory
to the program No. or input the program No.
directly, then push soft-key 'SELECT'. The
selected program is displayed in the Program
Window.
1. 4. 3 Input Program Name
The Program Name can be input up to max. 12
character. Any sign can be used, except:
"(" , ")" , ";" , ","
Information data are generated automatically:
Program No. USED / FREE 3 / 122
means, 3 programs used,
122 other programs can be input
Memory area USED / FREE 900 / 3000
means, 900 characters are stored,
other 3000 characters can be stored.
Note
There is no difference between file types, like
Main Programs
Any Program No. can be used.
Program normally ends with M30
Sub Programs
Any Program No. can be used.
Sub Program is called by M98 P**** (No.)
Sub Program normally ends with M99
Macro Programs
Any Program No. can be used.
Macro Program is called by G65 P**** (No.)
Macro Program is called by G66 P**** (No.)
Macro normally ends with M99
Program
size
Program
Program
Name
(Max 12ch.)
Lastly
modified date
and time
PROGRAM LIST
PROGRAM NO. USED / FREE 3 / 122
MEMORY AREA USED / FREE 900 / 3000
NO. NAME DATE SIZE
O0010: CIRCLE MACHINING 1999/01/12 10:12 380
O0020: LINE MACHINING 1999/02/10 11:21 520
O0020
Cursor
Previous page
Next page
