Manual Guide M Operators manual Page 39

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 38 -
GFKE-0046-EN/01
3. 1. 3. 2 Small hole peck drilling cycle
This is special using of 'Peck drilling cycle'.
The mode for 'Small-Hole Peck Drilling Cycle' is
selected, when M-Code in parameter 5163 is
specified. This M-Code must be input before the cycle
G83 is specified. The special mode can be canceled,
when G80 is specified or when a reset occurs.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.

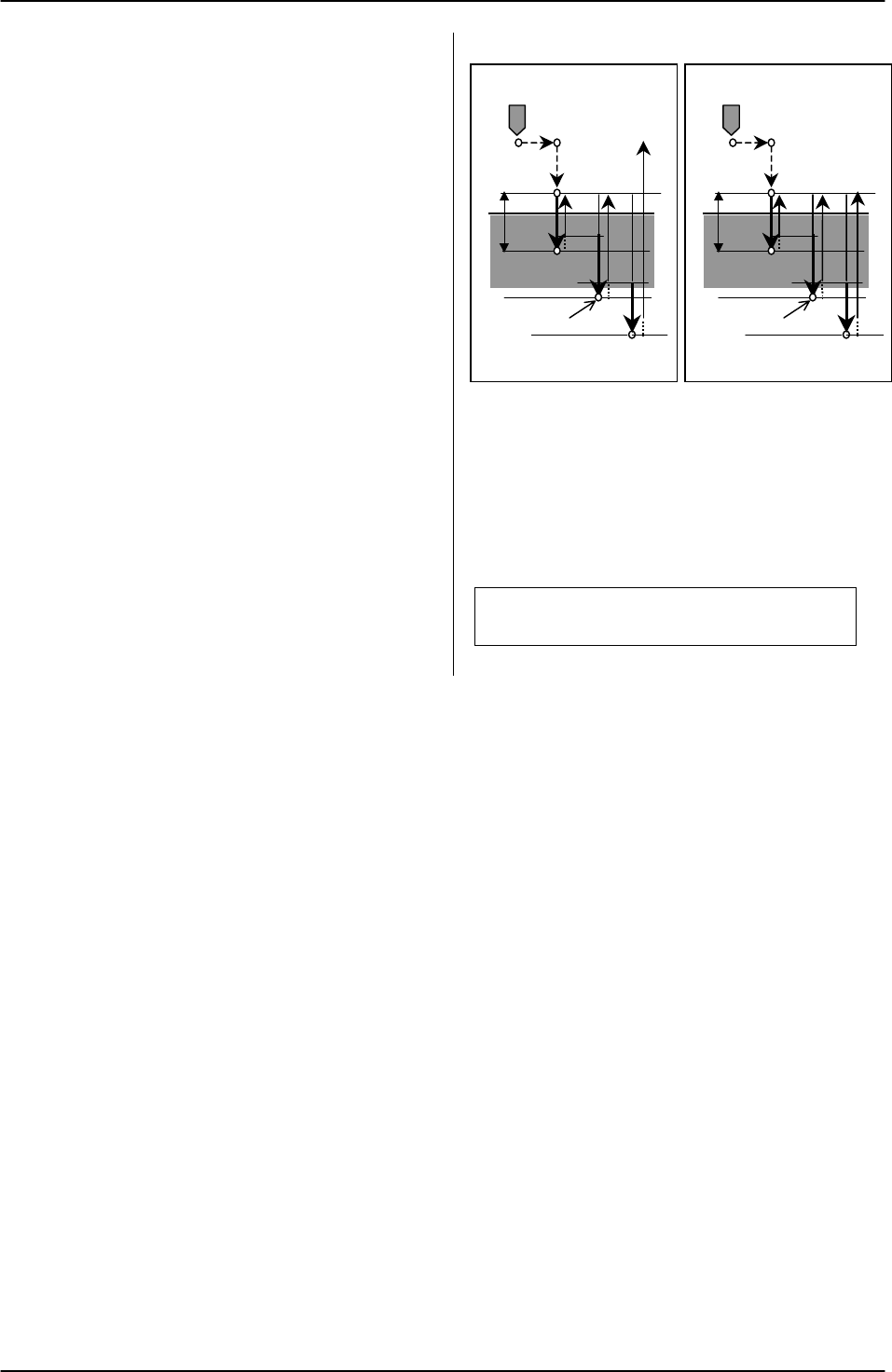

Small-Hole Peck Drilling Cycle
Return to Initial level Return to R-level
“∆” is an initial clearance when the tool is retracted to
point R and the clearance from the bottom of the hole
in the second or subsequent drilling
(parameter No.5174).
M88
(special M-Code, set by parameter 5163)
G83 (X_ Y_) Z_ R_ Q_ F_ ( I_ P_ K_);
G83
(G98)
Point
Q
∆
Point
Initial
P
∆
∆
Overload
G83
(G99)
Point
Q
Point
P
Overload
Point R
