Manual Guide M Hole Pattern
GE Fanuc Automation S.A. - 64 -
GFKE-0046-EN/01

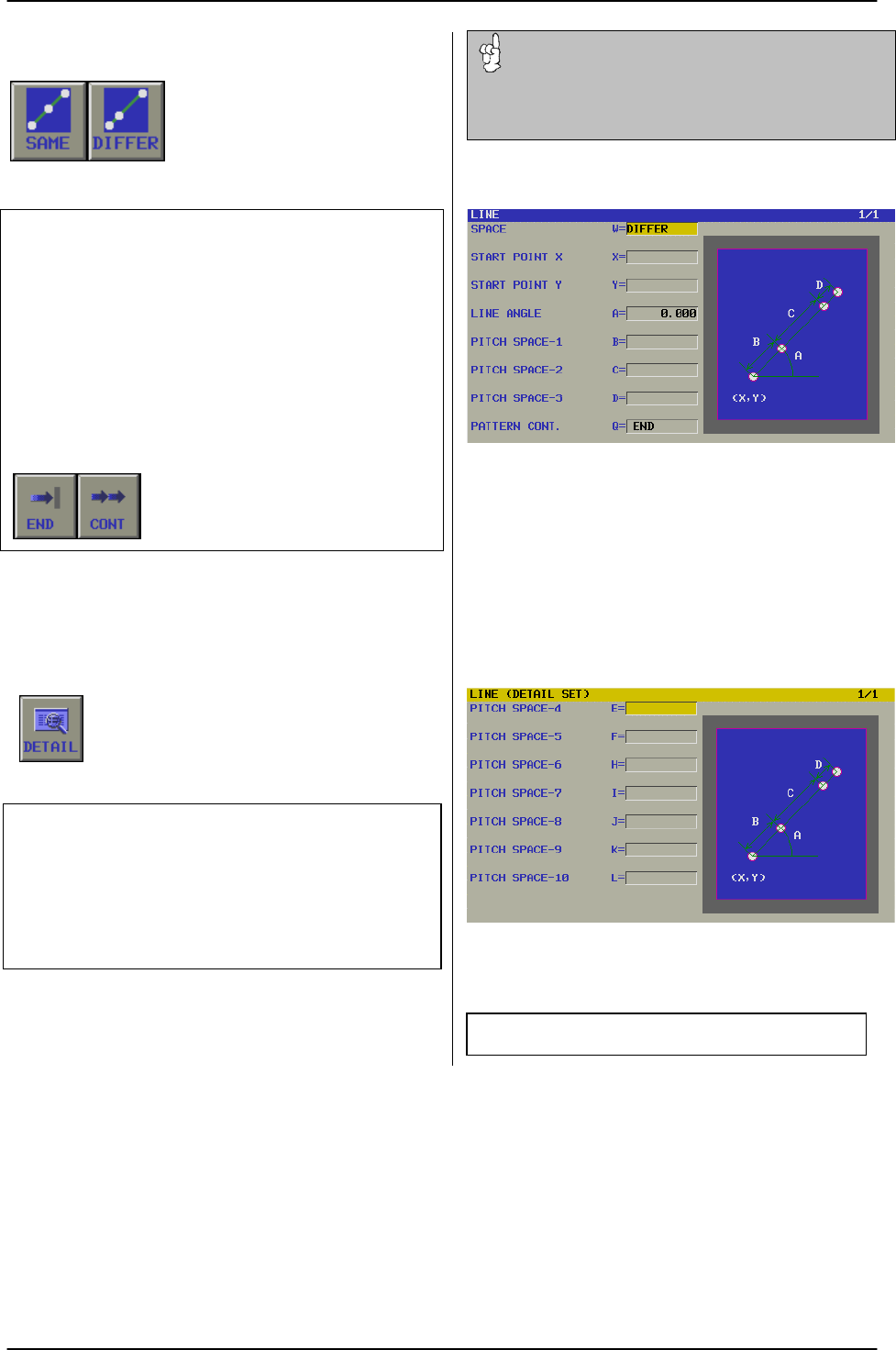

In case of pattern DIFFER SPACE, following input
items are available:
START POINT X/Y X and Y coordinates of the
position of the first hole.
LINE ANGLE The angle between the X axis
and the straight line. Line angle
'0' is preset.
HOLES NUMBER The total No. of holes, including
the No. of omitted holes.
PITCH SPACE - 1 The space between hole 1 & 2.
PITCH SPACE - 2 The space between hole 2 & 3.
PITCH SPACE - 3 The space between hole 3 & 4.
PATTERN CONT. Select whether to continue
entering another hole pattern
from the following Soft-Keys:
In case of DIFFER SPACE, by pushing "DETAIL"
Soft-Key
Following pop-up window is displayed:
PITCH SPACE -4 The space between hole 4 & 5
PITCH SPACE -5 The space between hole 5 & 6
PITCH SPACE -6 The space between hole 6 & 7
PITCH SPACE -7 The space between hole 7 & 8
PITCH SPACE -8 The space between hole 8 & 9
PITCH SPACE -9 The space between hole 9 & 10
PITCH SPACE-10 The space between hole 10 & 11
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Differ Space
Additional spaces available
G201 W_ X_ Y_ A_ N_ P_ Q_ ( L_ B_ C_ **** ;)
Important note
If more then 4 points has to be defined, push Soft-Key
'DETAIL', to continue input up to 10 points on the next
page. If more then 10 points has to be defined, push
Soft-Key
CONT.,
to the same menu again.
Previous page
Next page
