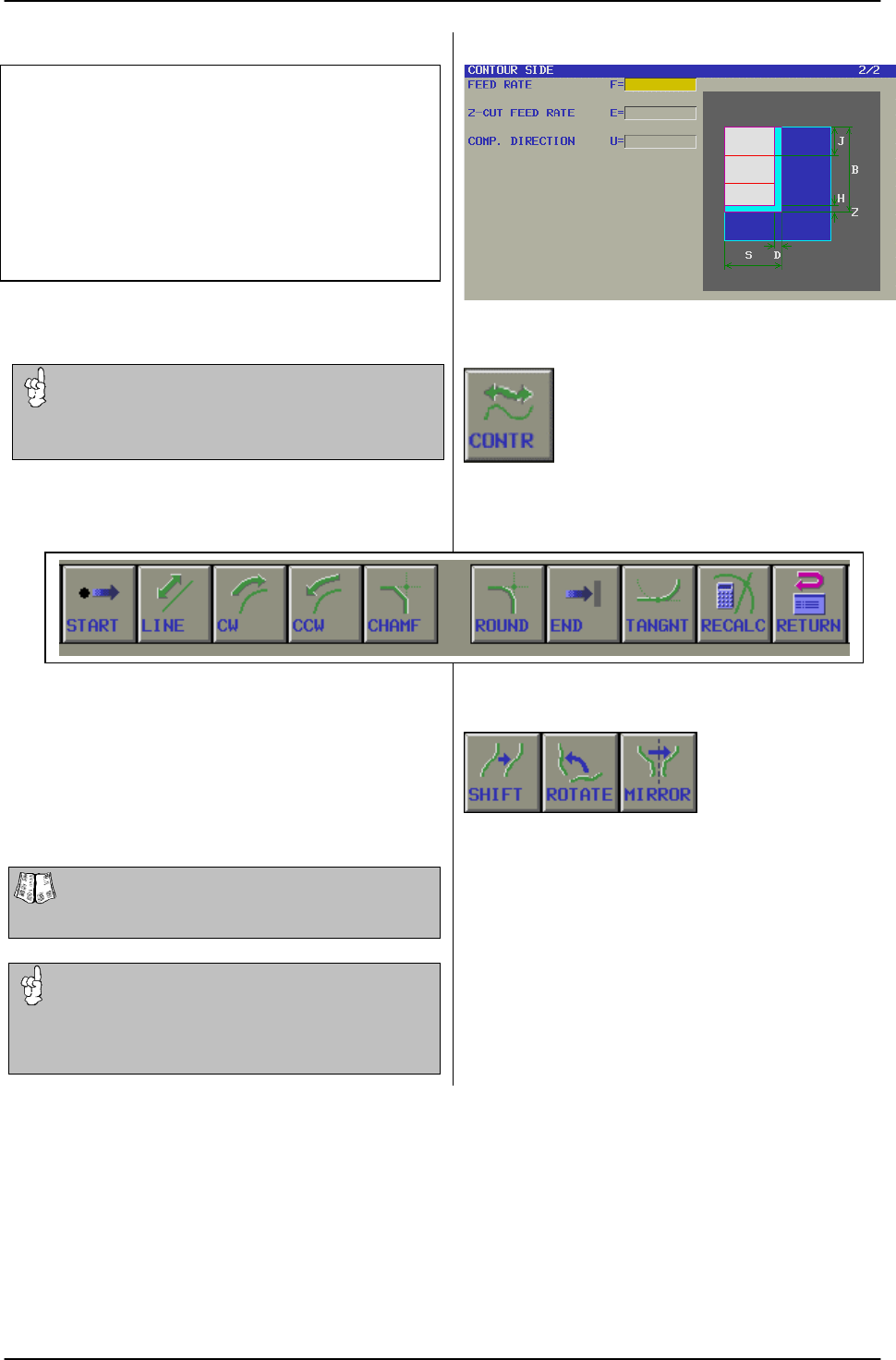

Manual Guide M Contour Side Cutting
GE Fanuc Automation S.A. - 76 -
GFKE-0046-EN/01
Roughing 2/2
FEED RATE
The feed rate of the tool in XY direction.
Z CUT FEED RATE
Feed rate in Z direction from R-point to bottom.
COMP. DIRECTION
Select the compensation direction by following
Soft-Keys:
The arbitrary shape of the figure can be input in this
menu, using the Soft-Key, shown below:
On a second page following Soft-Keys are available:
• SHIFT to shift a part of figure (copy)
• ROTATE to rotate a part of figure
• MIRROR to mirror a part of figure
Roughing 2/2
Important note:
After all data input in the menu 'Contour Side Cut', the
system automatically switches over 'Contour' menu. This
menu is also available as a separate selection menu.
Important note:
A arbitrary shape as contour can be programmed
independent of the general program as a 'Sub Program'.
Please see
Chapter 6.7.3 Contour as Sub Program
Details of Contour data input explained in Chapter
2.8 Contour Programming
Previous page
Next page
