Manual Guide M Contour Pocket Cutting
GE Fanuc Automation S.A. - 119 -
GFKE-0046-EN/01
Important note

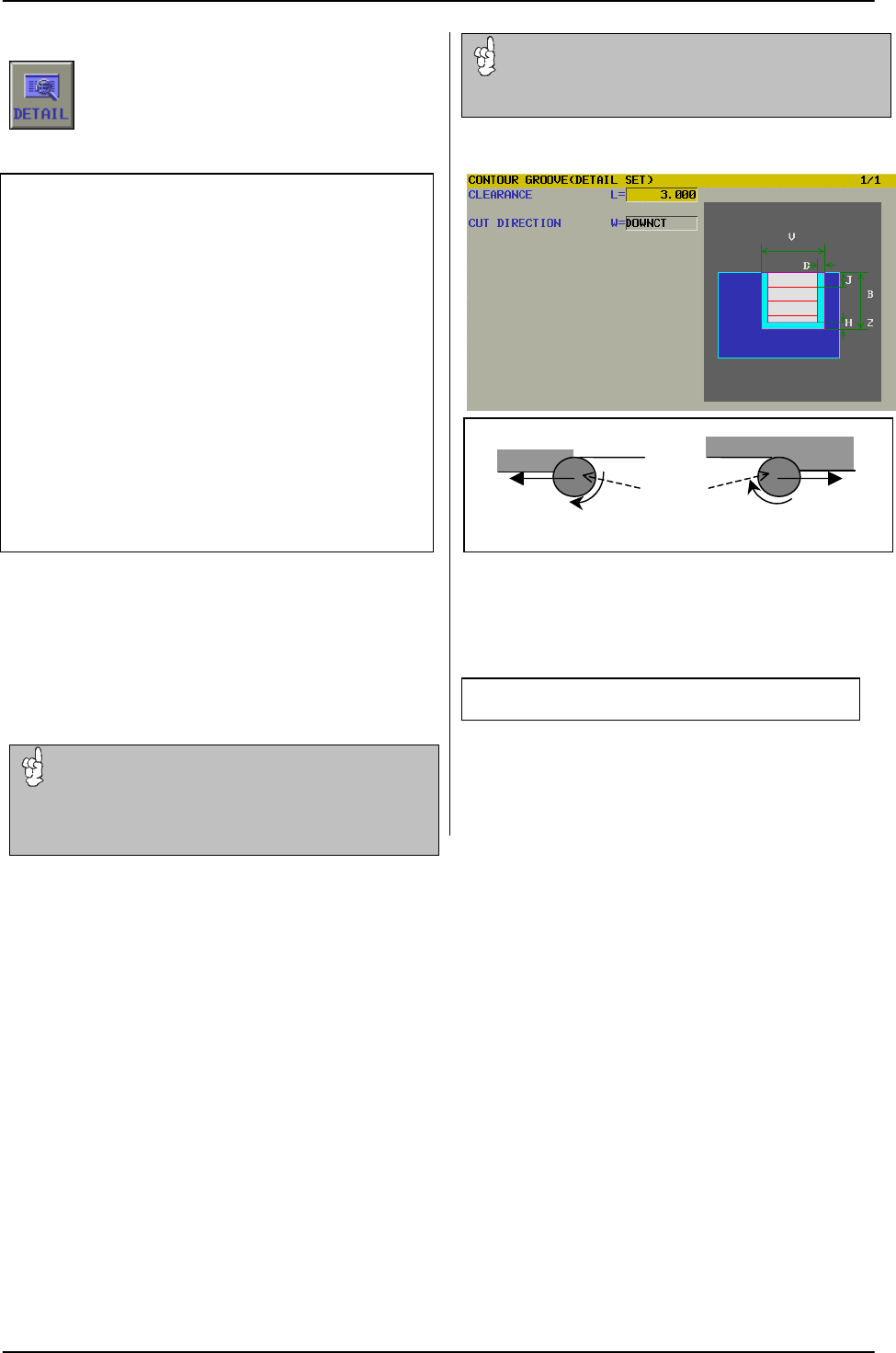

DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
CLEARANCE
The amount of clearance for cutting feed in Z
axis at the approach and escape movement.
The default amount is 3mm.
CUTTING DIRECTION
Select Cutting direction from Soft-Key,
Dow-cut or Up-cut.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
G235 P_ L_ Z_ B_ J_ H_ D_ V_ F_ C_ E_ *** ;
G235 works not independently. The arbitrary
shape has to be defined in 'Contour Menu',
please see page before.
Down-cut U
p
-cut
End-mill
Important note:
A arbitrary shape as contour can be programmed
independent of the general program as a 'Sub Program'.
Please see
Chapter 6.7.3 Contour as Sub Program
Previous page
Next page
