Manual Guide M Operators manual Page 84

Operators manual
Manual Guide M Side Cutting
GE Fanuc Automation S.A. - 83 -
GFKE-0046-EN/01
Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.

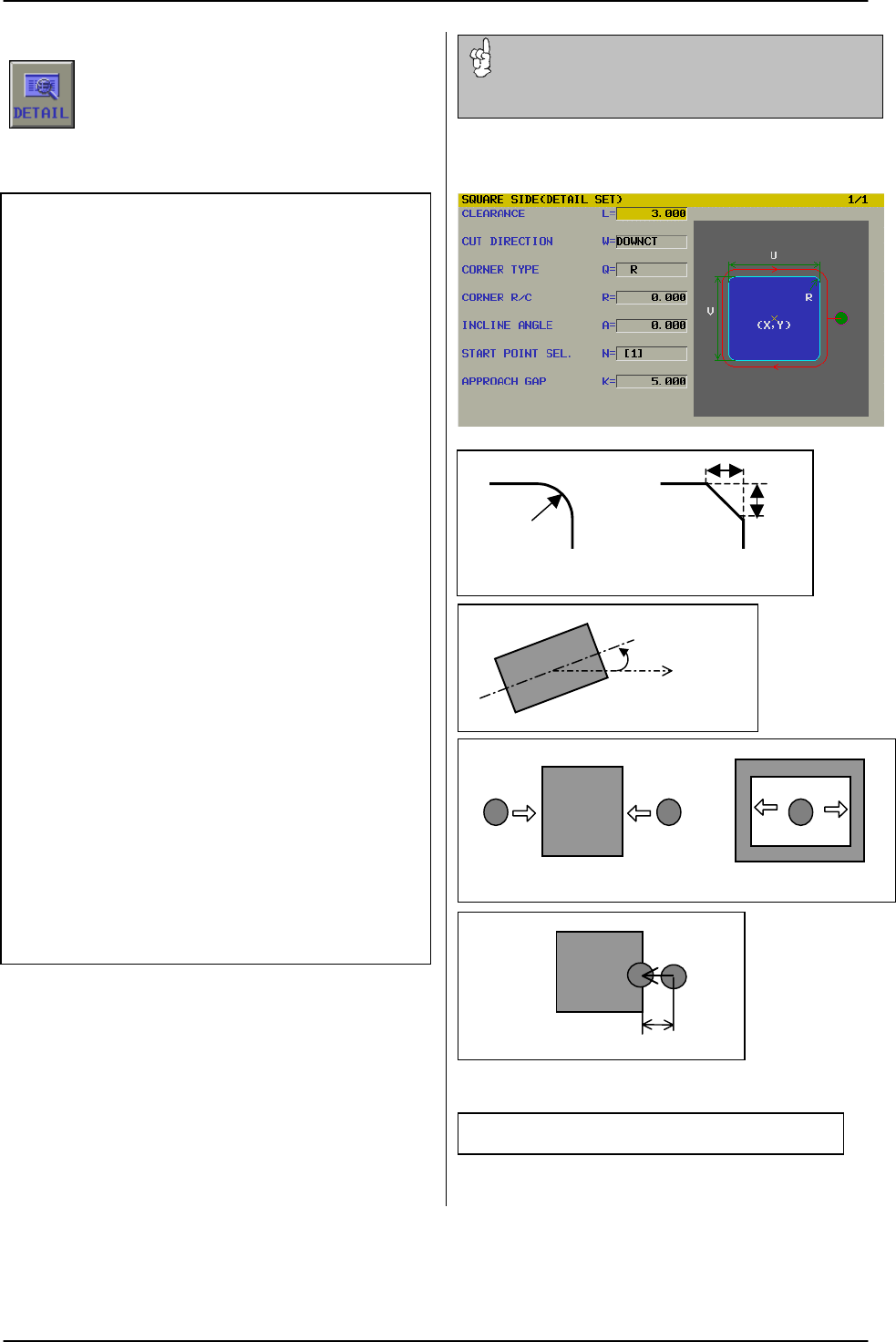

By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
CLEARANCE
The amount of clearance for cutting feed
in Z axis at the approach and escape
movement. The default amount is 3mm.
CUT DIRECTION
Select the cutting direction from Soft-Key,
Down-cut or Up-cut:
CORNER TYPE
Select corner type for outside square
shape figure only from
soft-key R (radius) or C (chamfer).
INCLINE ANGLE
The angle between U side and the X axis. It is
considered to be 0 if not input.
START POINT SELECTION
Select the start position from following
Soft-Keys:
APPROACH-/ ESCAPE GAP
This is the safety distance between tool and
work piece edge at movement start and end.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
G220 P_ L_ Z_ S_ I_ D_ B_ J_ H_ F_ E_ *** ;
A
Work
p
iece
Xaxis
Corner R
Corner C
R
C
K
[ 1 ]
[ 2 ]
[ 1 ]
[ 2 ]
Out-side
In-side
