Manual Guide M Operators manual Page 96

Operators manual
Manual Guide M Side Cutting
GE Fanuc Automation S.A. - 95 -
GFKE-0046-EN/01
6. 5. 2 Movements in One Side
Movements are basically similar in all side cutting
menus, but in case of 'One Side' menu a little bit
different.
6. 5. 2. 1 Movements rough cutting
12. Rapid in XY to start point ( A )
13. Rapid in Z to point:
(end Z + bottom removal + clearance).
14. Rapid towards to one side by side cut step.
15. Descent along the lower Z position with Z feed by
the defined Z cut step.
16. Side cutting along the side figure with the
side cut step.
17. Rapid in Z to R point.
18. Rapid in XY to start point ( A ).
19. 3. - 7. Are repeated to the point of distance until
Side Finish amount.
20. 3. - 8. are repeated up to the point of the distance
until Bottom Finish.
21. Rapid in Z up to the point
(end point Z + bottom removal + clearance).
6. 5. 2. 2 Movements in Bottom finishing
8. Rapid in XY to start point ( A )
9. Rapid in Z to point:
(end Z + bottom removal + clearance).
10. Rapid towards to one side by side cut step.
11. Descent along the lower Z position with Z feed by
the defined Z end position.
12. Side cutting along the side figure with the
side cut step.
13. Rapid in Z to R point.
14. Rapid in XY to start point ( A ).
15. 3. - 7. Are repeated to the point of distance until
Side Finish end position.
16. Rapid in Z up to the point
(end point Z + bottom removal + clearance).

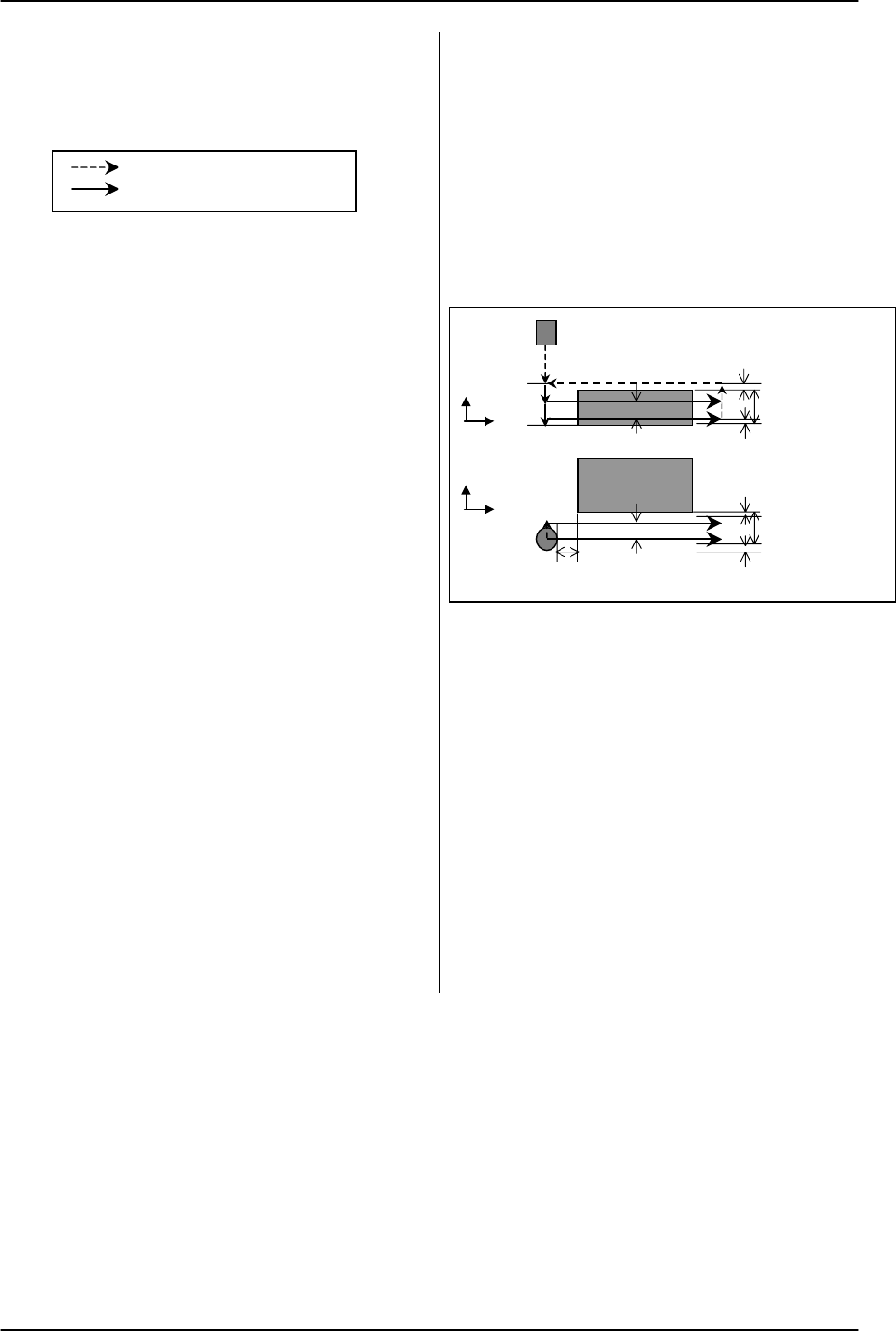

Movements in cutting One-Side
Feed Traverse
(
G01
)
Ra
p
id Traverse
(
G00
)
Clearance
Bottom Removal
Bottom Finish
Side Pitch
Bottom Pitch
Side Removal
Side Finish
Approach/Escape Gap
A
Point R
X
Z
X
Y
Clearance
