Manual Guide M Contour Side Cutting
GE Fanuc Automation S.A. - 79 -
GFKE-0046-EN/01
5. 3. 2. 3 Movements in Side finishing
1. Rapid in XY to start point ( A )
2. Rapid in Z to point R
(end Z + bottom removal + clearance).
3. Descent along the lower Z position with Z feed.
4. Move into the workpiece with feed, following the
approach type Circle, Tangent, Vertical.
5. Side cutting the Finishing Amount along the side
figure.
6. Move away from workpiece with feed, following
the escape type Circle, Tangent, Vertical.
7. Feed rate in Z up to the point R.

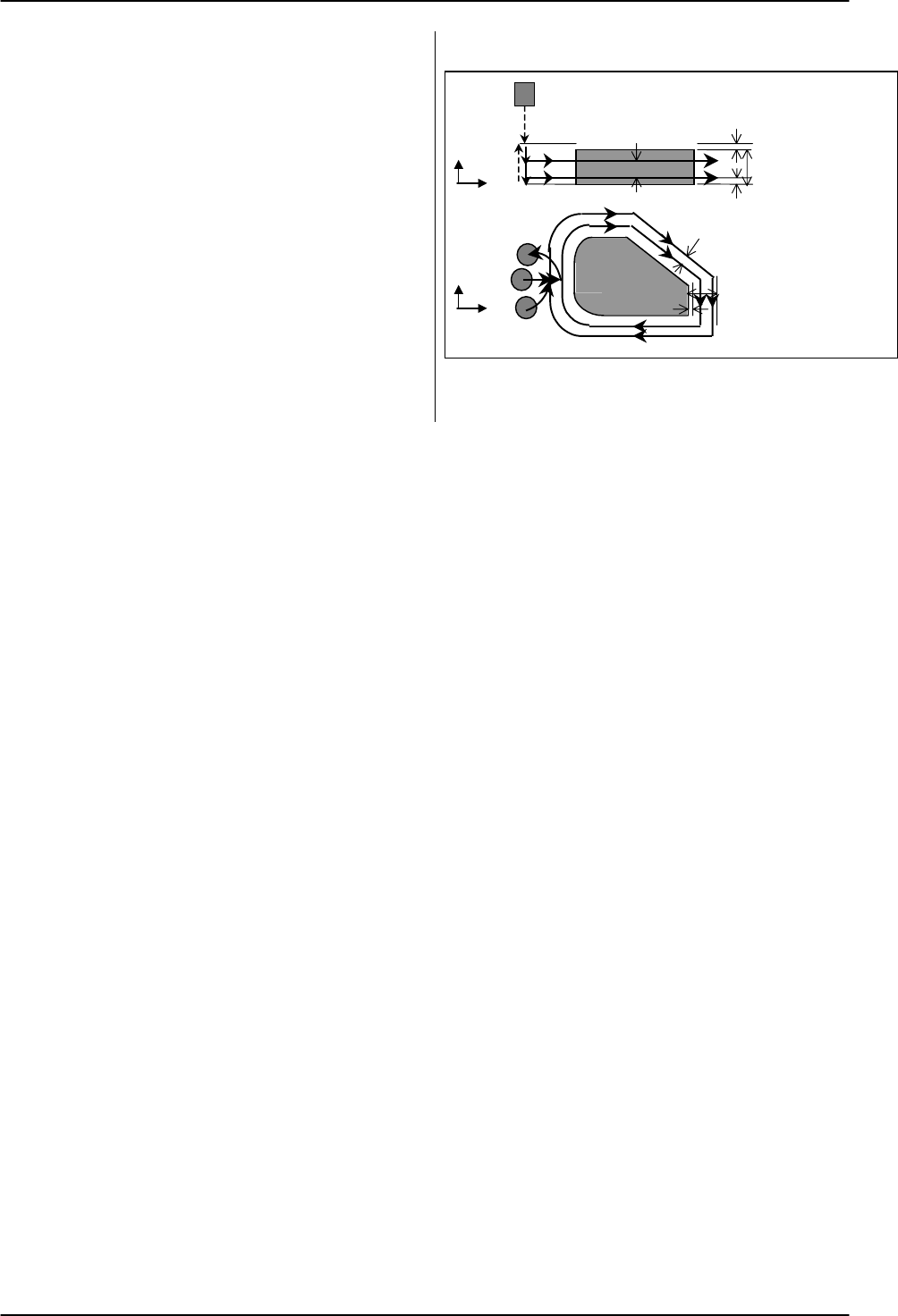

Movements in Side finishing
Clearance
Bottom Removal
Bottom Finish
Tool Diameter ×
Cutting Width
Bottom Pitch
Side Removal
Side Finish
A
Point R
X
X
Z
Y
A
