Manual Guide M Operators manual Page 117

Operators manual
Manual Guide M Contour Pocket Cutting
GE Fanuc Automation S.A. - 116 -
GFKE-0046-EN/01
7. 6. 2. 3 Movements Pocket Side finishing
30. Rapid in XY to start point.
31. Rapid in Z to point R
(end Z + bottom removal + clearance).
32. Descent along the lower Z position with Z feed by
the defined Z cut step.
33. Move in XY into the workpiece with feed,
following the approach type
Circle, Tangent, Vertical.
34. Pocket side cutting the Finishing Amount along
the pocket figure.
35. Move in XY away from workpiece with feed,
following the escape type
Circle, Tangent, Vertical.
36. Rapid in XY to start point.
18. 3. - 8. are repeated, down to Z end position.
19. Feed rate in Z up to the point R.
7. 6. 2. 4 In case of Drilling Pre-Hole
5. Rapid in XY to start point.
6. Rapid in Z to point R.
7. Drilling with feed in Z direction until end point Z.
8. Rapid in Z up to the point R
(end point Z + bottom removal + clearance).
A specific drilling cycle can be selected by Soft-Key
in the field CYCLE SELECTION.

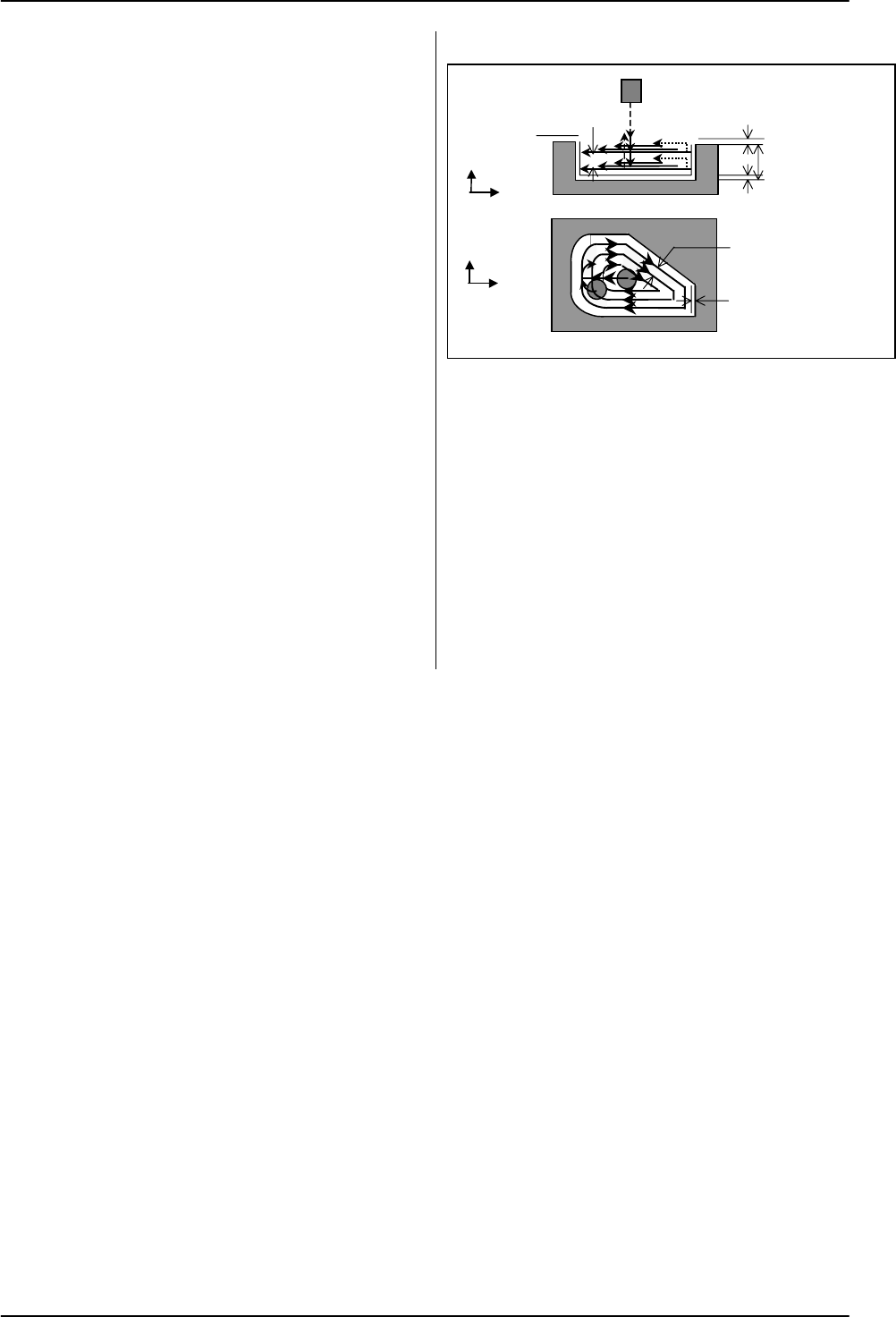

Movements Pocket Side finishing
Clearance
Removal Depth
Bottom Finish
Cutting Width
Removal Pitch
Side Finish
Point R
X
Z
X
Y
