Manual Guide M Operators manual Page 79

Operators manual
Manual Guide M Contour Side Cutting
GE Fanuc Automation S.A. - 78 -
GFKE-0046-EN/01
5. 3. 2 Movements in Contour Side
Movements are basically similar in all side cutting
menus, but in case of 'Contour Side' menu a little bit
different.
5. 3. 2. 1 Movements rough cutting
1. Rapid in XY to start point ( A )
2. Rapid in Z to point R :
(end Z + bottom removal + clearance).
3. Descent along the lower Z position with Z feed by
the defined Z cut step.
4. Move into the workpiece with feed, following the
approach type Circle, Tangent, Vertical.
5. Side cutting along the side figure with the
side cut step (tool diameter x cutting width).
6. Move away from workpiece with feed, following
the escape type Circle, Tangent, Vertical.
7. Feed back in Z to point R.
8. Rapid in XY to start point ( A ).
9. 3. - 8. Are repeated to the point of distance until
Side Finish amount.
10. 3. - 9. are repeated up to the point of the distance
until Bottom Finish.
11. Feed back in Z up to the point R.
5. 3. 2. 2 Movements in Bottom finishing
1. Rapid in XY to start point ( A )
2. Rapid in Z to point R :
(end Z + bottom removal + clearance).
3. Descent along the lower Z position with Z feed by
the defined Z end position.
4. Move into the workpiece with feed, following the
approach type Circle, Tangent, Vertical.
5. Side cutting along the side figure with the
side cut step (tool diameter x cutting width).
6. Move away from workpiece with feed, following
the escape type Circle, Tangent, Vertical.
7. Feed back in Z to point R.
8. Rapid in XY to start point ( A ).
9. 3. - 8. Are repeated to the point of distance until
Side Finish end position.
10. Feed back in Z up to the point R.

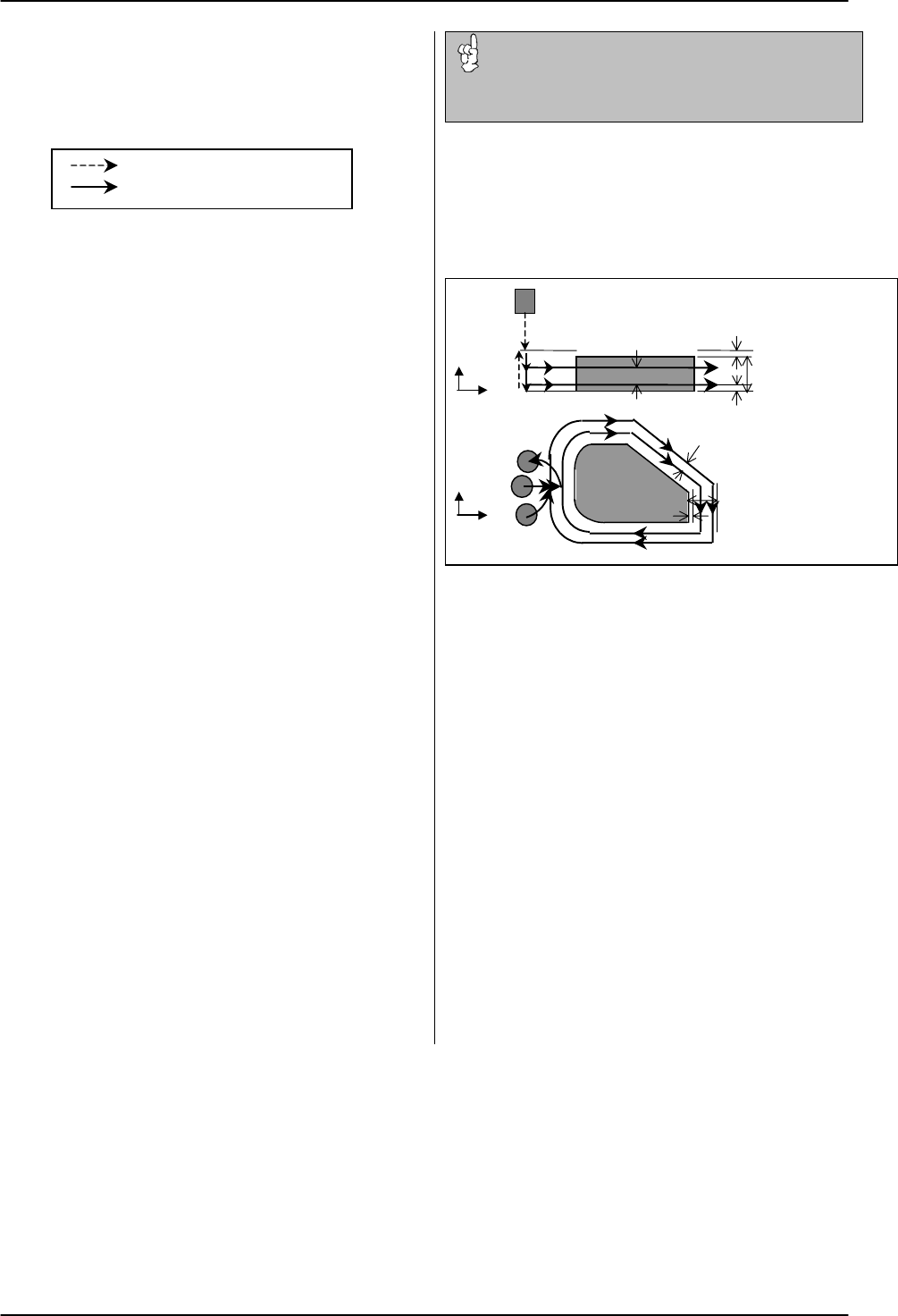

Movements in cutting Contour-Side
Feed Traverse
(
G01
)
Ra
p
id Traverse
(
G00
)
Clearance
Bottom Removal
Bottom Finish
Tool Diameter ×
Cuttin
g
Width
Bottom Pitch
Side Removal
Side Finish
A
Point R
X
X
Z
Y
A
Important note
In Contour Side menu, cutter compensation G41 and G42
are used. In this case the work piece dimension can be
influenced by modifying cutter radius offset value.
