Manual Guide M Operators manual Page 7

Operators manual
Manual Guide M Basics
GE Fanuc Automation S.A. - 6 -
GFKE-0046-EN/01
1. 2 Operation Modes
'Manual Guide M' enables different operation modes:
1. 2. 1 Manual Operation
A machine for milling and drilling operation, equipped
with 'Manual Guide M' can be used as normal
standard machine, moving axis by handwheel,
without any support of CNC control.
1. 2. 2 Guidance Cutting (Option)
This function enables the operator to move axis by
Guidance Handwheel according the selected
function, such as a tapered or arc figure.
After cutting the workpiece with above function, all
moving and other actions, like spindle on, coolant on,
etc., can be taught as teaching into a machining
program as a program block, step by step. These
program blocks can be used later for 'Play Back'
machining.
1. 2. 3 MDI Operation
'Manual Guide M' enables the operator to input all
CNC commands in MDI Mode, separately or during
'Manual Guide M' programming mode.
1. 2. 4 Cycle Operation
A lot of advanced canned cycles are available in
'Manual Guide M' to prepare machining programs in
extremely short time. Cycle selection by soft key with
symbols. Good graphical support in window
technique enables easy data input for:
Drilling
Facing
Side cutting
Pocketing

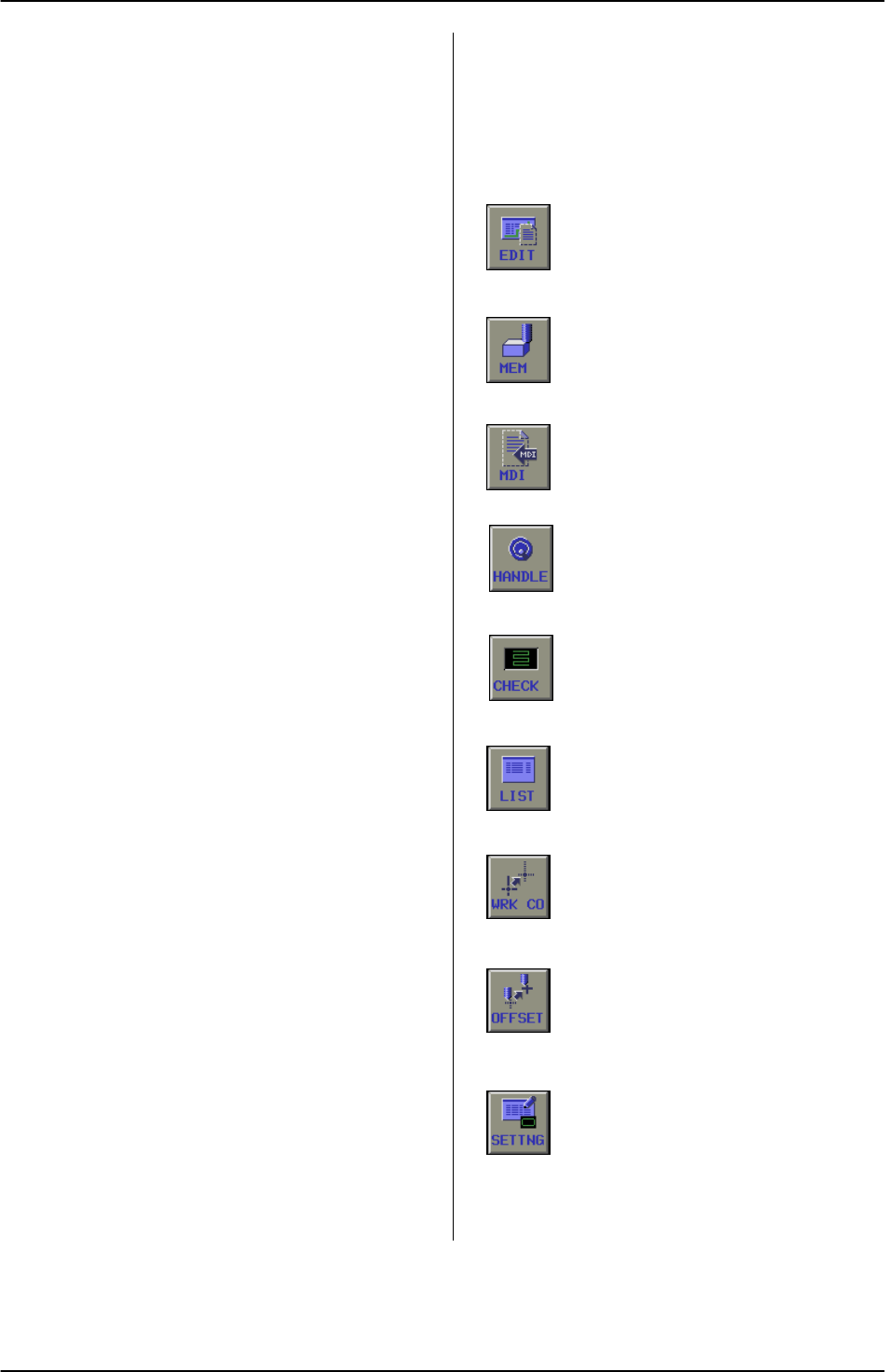

Following initial Soft-Keys are available. All functions
and operations are arranged in the initial Soft-Keys.
By pushing these Soft-Keys, the function will be
available.
EDIT Making or editing a program.
MEM Machining operation
MDI Manual Data Input operation
HANDLE Manual operation with JOG or HANDLE
CHECK Checking a program by graphic
LIST Program list to select, copy or delete a
program
WRK CO Work coordinate system setting
OFFSET Tool offset setting
SETTNG Graphic window setting
