Manual Guide M Details of Menu
GE Fanuc Automation S.A. - 20 -
GFKE-0046-EN/01
2. 8. 1 Start
This position must be a point of the figure itself.
Approach to this point is managed from one of the
Menus
Contour Inside / Outside or
Contour Pocket or
Contour Groove
By pushing "DETAIL" Soft-Key

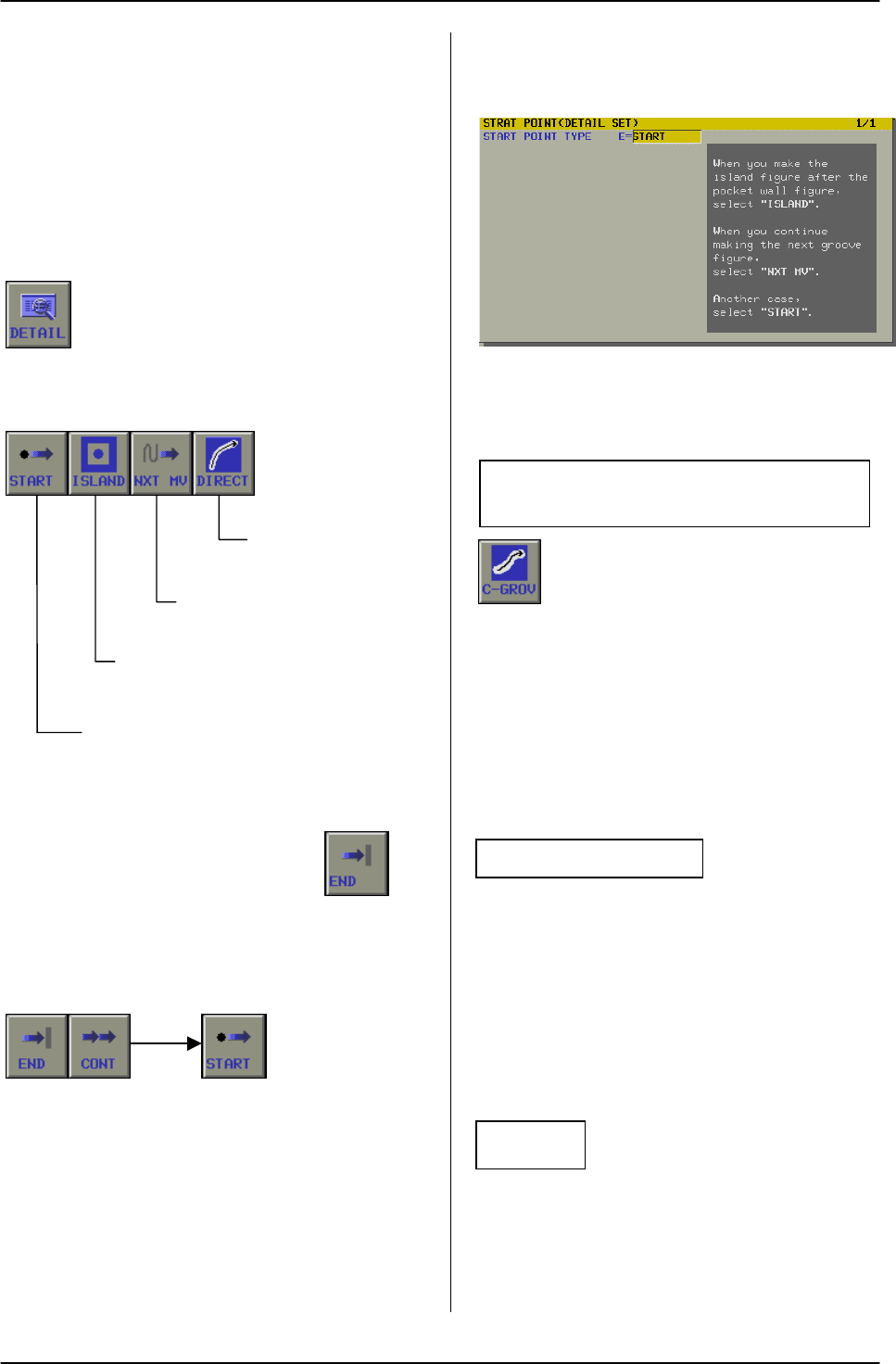

Following pop-up window is displayed:
The Start Point type can be selected by Soft-Key
Soft-Key to program
figure without cycle.
Defining a new figure with the
same contour cycle.
Defining islands in a pocket.
(max. 6 islands)
At the beginning of any contour figure
Note
At the end of any figure, it is absolutely necessary to
finish the part of figure with Soft-Key END! In example
beside, after finishing milling figure 'C'.
If the figure is completely finished push Soft-Key END
below. If the selected menu should be continued with
another figure or island, push Soft-Key CONT. In this
case Soft-Key START is displayed again.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Please see also diagram next page.
Detail Set Pop Up Menu
This is a example, to use 'CONTOUR GROOVE'
cycle to cut the figure below with a end mill.
Any letter is defined as separate contour figure. At the
end of any character-figure, first Soft-Key END is
pushed and second CONT is pushed. Selecting
START Soft-Key, to input the start position of next
character-figure.
The Escape Position in Z between any character
(Groove) must be input.
G100 X-60. Y25. E3. R2.;
G100 = Code for Start
X/Y = Start position XY
E3 = Selection NEXT MOVE
R2 = Escape position in Z
Note:
In case of Start selection, = E1
In case of Island selection, = E2
In case of Next Move selection, = E3
In case of Direct selection, = E4
G106 P1 : Figure End
G106 P2 : Continue with other Figure
CONTOUR GROOVE
Previous page
Next page
