Manual Guide M Side Cutting
GE Fanuc Automation S.A. - 92 -
GFKE-0046-EN/01
6. 5 One Side (G223)
6. 5. 1 One Side roughing
This is a menu for cutting One Side only.

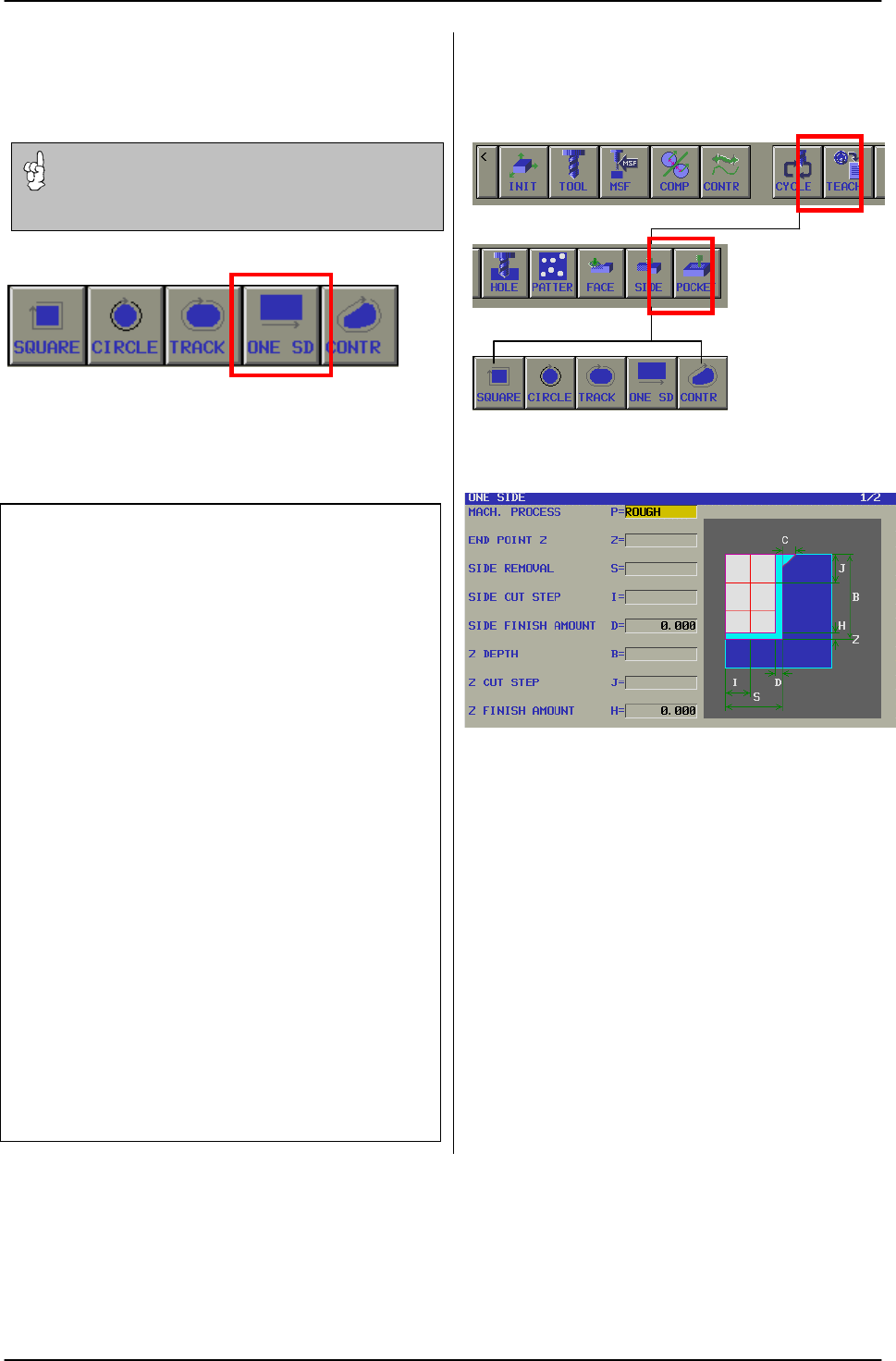

By pushing [ONE SD], the following pop-up window
is displayed. The all items are changed according to
“MACH. PROCESS”.
Roughing 1/2
MACH. PROCESS
Select the machining process from the
Soft-Key. [ROUGH]
END POINT Z
Z coordinate of the final machined surface.
SIDE REMOVAL
Side machining allowance
SIDE CUT STEP
In case that side removal amount can not be
cut at once, a pitch/step can be input. If
nothing is input, cut is done at once
(Roughing and B-finish only).
SIDE FINISH AMOUNT
In case of finishing should be performed, input
here the finishing amount. This value will be
remained during roughing
(Pre set value is 0.000).
Z DEPTH
Machining allowance in Z direction of the
cutting surface (for ROUGH only)..
Z CUT STEP
In case the Z-depth depth can not be cut at
once, this is the step for each cut. If nothing is
input, cut is done at once (for ROUGH only).
Z FINISH AMOUNT
In case that finishing should be performed,
input here the finishing amount. This value will
be remained during roughing
(Pre set value is 0.000).
Roughing 1/2
Important note
Data for tool preparation, spindle speed and tool length
compensation has to be performed before in menu
'TOOL', 'MSF' and 'COMP'.
Previous page
Next page
