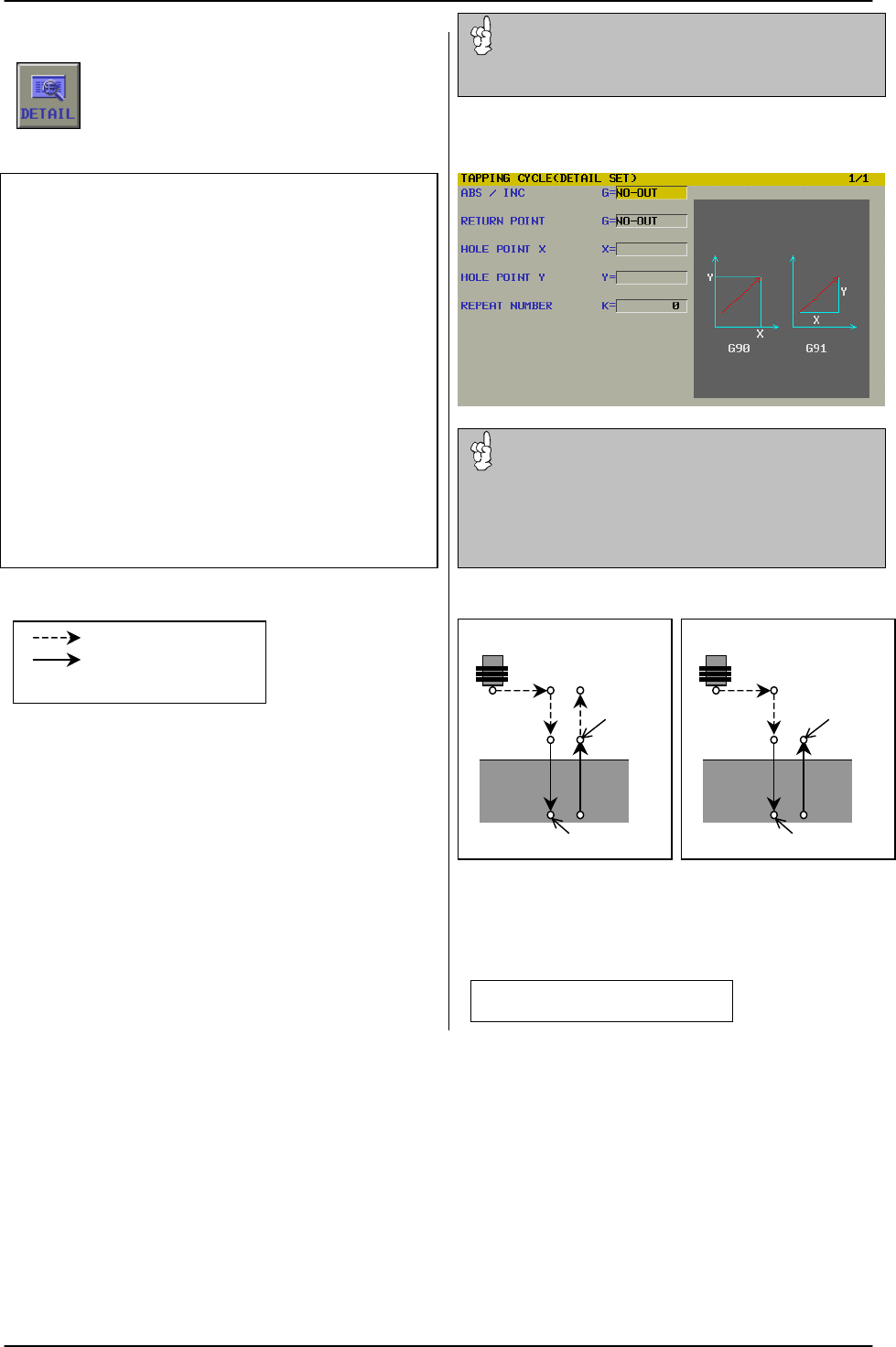

Manual Guide M Operators manual Page 55

Operators manual
Manual Guide M Cycle Programming
GE Fanuc Automation S.A. - 54 -
GFKE-0046-EN/01
Important note
DETAIL SET screen - unnecessary to select. Usually
preset values are suitable as default.
By pushing "DETAIL" Soft-Key
Following pop-up window is displayed:
ABS/INC Specify travel ways from the
following soft-keys.
[G90ABS (absolute)],
[G91INC (incremental)],
[NO OUT] is pre set!
RETURN POINT Specify return point level
from the following soft-keys.
[I-LVL (G98)], [R-LVL (G99)],
[NO-OUT] is preset
HOLE POINT XY Hole position data. It is used in
the case of no using Hole Pattern
menu
REPEAT NO. Number of repeat. It is used in the
case of no using Hole Pattern menu
Movements
After positioning along the X and Y axes, rapid
traverse is performed to point R. Tapping is
performed from point R to point Z.
When Z-point has been reached, spindle changes to
reverse rotation, tool moves out with the same cutting
feed to return to I or R point.
After all data input, push "INSERT" key. Then the
pop-up window is closed and the entered data are
displayed in the Program Window.
Absolute Incremental
G84 (X_ Y_) Z_ R_ P_ F_ (K_);
Important note
NO-OUT
means, the modal data, like G90 / G91, or
G98 / G99 will not be changed. If G90 / G91, or G98 / G99
is selected by soft-key, this selection will be kept modal and
must be changed back by new definition of G90 / G91,
or G98 / G99, except in case of RESET. RESET status is
G90 and G98.
Ra
p
id traverse
Feed traverse
Dwell
P
G84 (G98)
Initial
Point Z
Point R
Spindle CCW
P
P
Spindle CW
15
G84 (G99)
Point R
Point Z
Point R level
Spindle CW
1
P
Spindle CCW
